2. Purchase Order

Inter-company Processing: SAMLTD P/O to SAMINC O/E (SAMACCINTCOEXP)

The first of the two intercompany integrations reads purchase orders out of SAMLTD, creates the matching O/E Order in SAMINC, and then flags the purchase order so it is not exported again.

Both companies must exist in Sage 300 first

Set up both companies in Sage 300 before you run this integration. See Company setup if you have not done so.

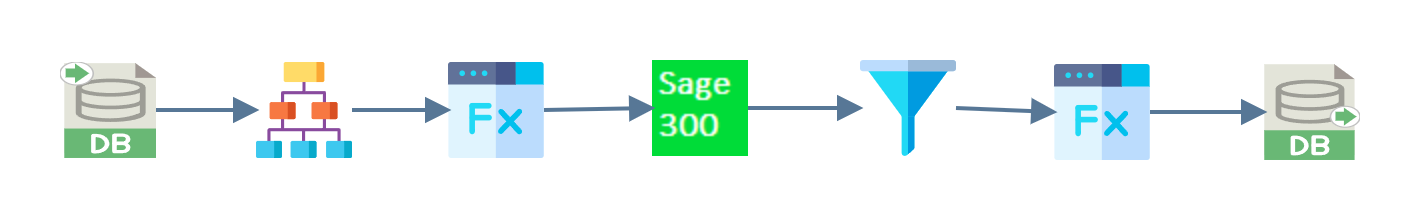

Seven nodes joined left to right on the design surface: a database reader, a hierarchy, a map, a Sage 300 connector, a filter, a second map and a database writer

This integration has:

  1. Read
  2. Hierarchy
  3. Map
  4. Connector
  5. Filter
  6. Second Map
  7. Database Write

Steps 1 to 4 are the export. The last three steps write the flag back.

Read

A SQL query reads the purchase orders straight from the SAMLTD database, because no Sage 300 view answers "which intercompany purchase orders have not been exported yet".

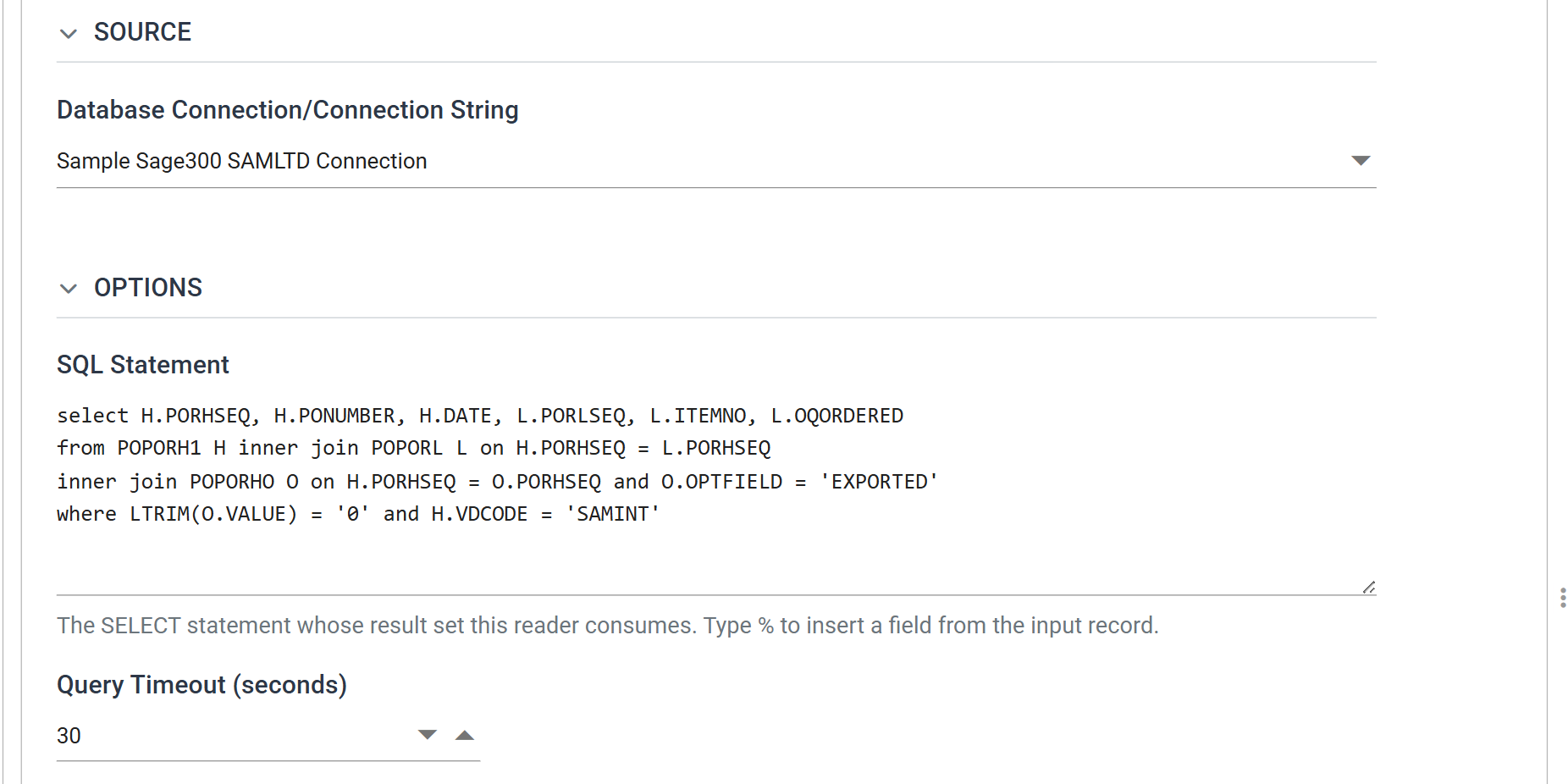

The database reader's Setup tab: Database Connection set to Sample Sage300 SAMLTD Connection, a SQL Statement box holding the query, and a Query Timeout of 30 seconds

The SQL statement

select H.PORHSEQ, H.PONUMBER, H.DATE, L.PORLSEQ, L.ITEMNO, L.OQORDERED
from POPORH1 H inner join POPORL L on H.PORHSEQ = L.PORHSEQ
inner join POPORHO O on H.PORHSEQ = O.PORHSEQ and O.OPTFIELD = 'EXPORTED'
where LTRIM(O.VALUE) = '0' and H.VDCODE = 'SAMINT'

Two conditions in the where clause select an intercompany order that is still outstanding:

  • H.VDCODE = 'SAMINT' — intercompany purchases are raised against a particular vendor, which distinguishes them from ordinary ones.
  • LTRIM(O.VALUE) = '0' — the EXPORTED optional field is still No. The join onto POPORHO brings that optional field into the query.

The six columns are the minimum the integration needs:
PORHSEQ purchase order sequence number — the key the flag is written back against
PONUMBER purchase order number
DATE purchase order date
PORLSEQ purchase order line sequence
ITEMNO item number
OQORDERED quantity ordered

Press Refresh to run the query and see the results:

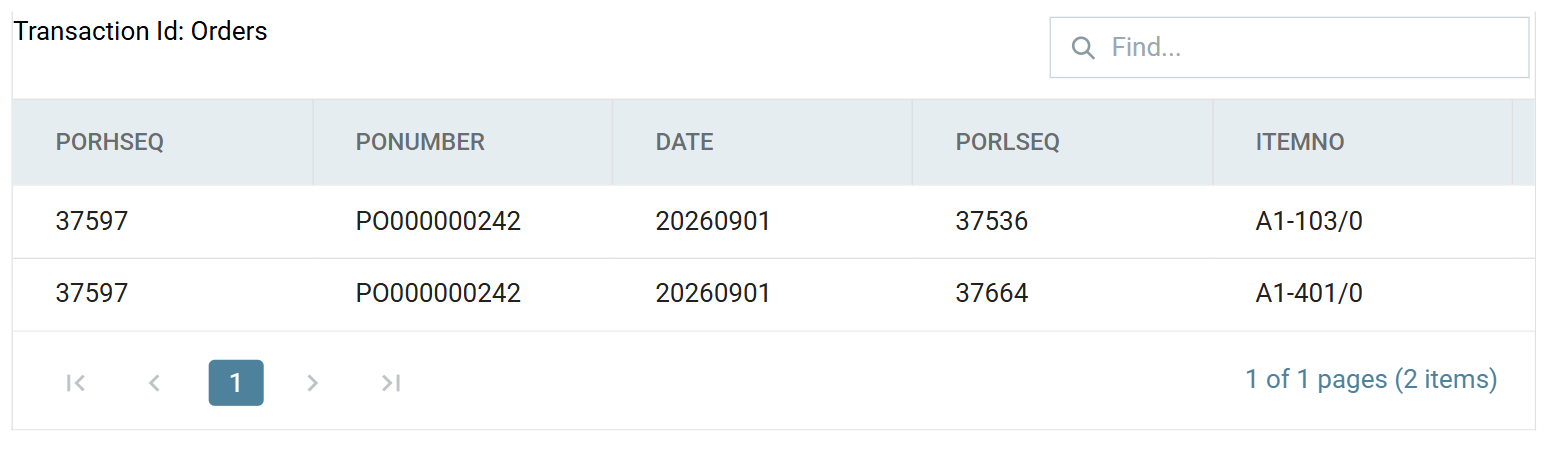

The reader's preview after a refresh: two rows, both PORHSEQ 37597 and PONUMBER PO000000242, with PORLSEQ 37536 and 37664 and item numbers A1-103/0 and A1-401/0

The result is one purchase order with two lines. PORLSEQ differs per line, and it makes the return journey possible. The connector writes it onto the O/E Order line as the POLINE optional field, and it travels with the shipment. Step 3 reads it back to put the right quantity on the right line of the receipt.

Every item on the order must also exist in SAMINC

Every item on the purchase order must also exist in SAMINC, or the order fails to import with "Item number … does not exist". Sage 300 strips the segment separators when it matches, so SAMLTD's A1-103/0 finds SAMINC's A11030. The two companies must still stock the same items.

Hierarchy

The query returns one row per order line. The Hierarchy transform turns those flat rows into the header-and-lines shape the O/E Order import expects.

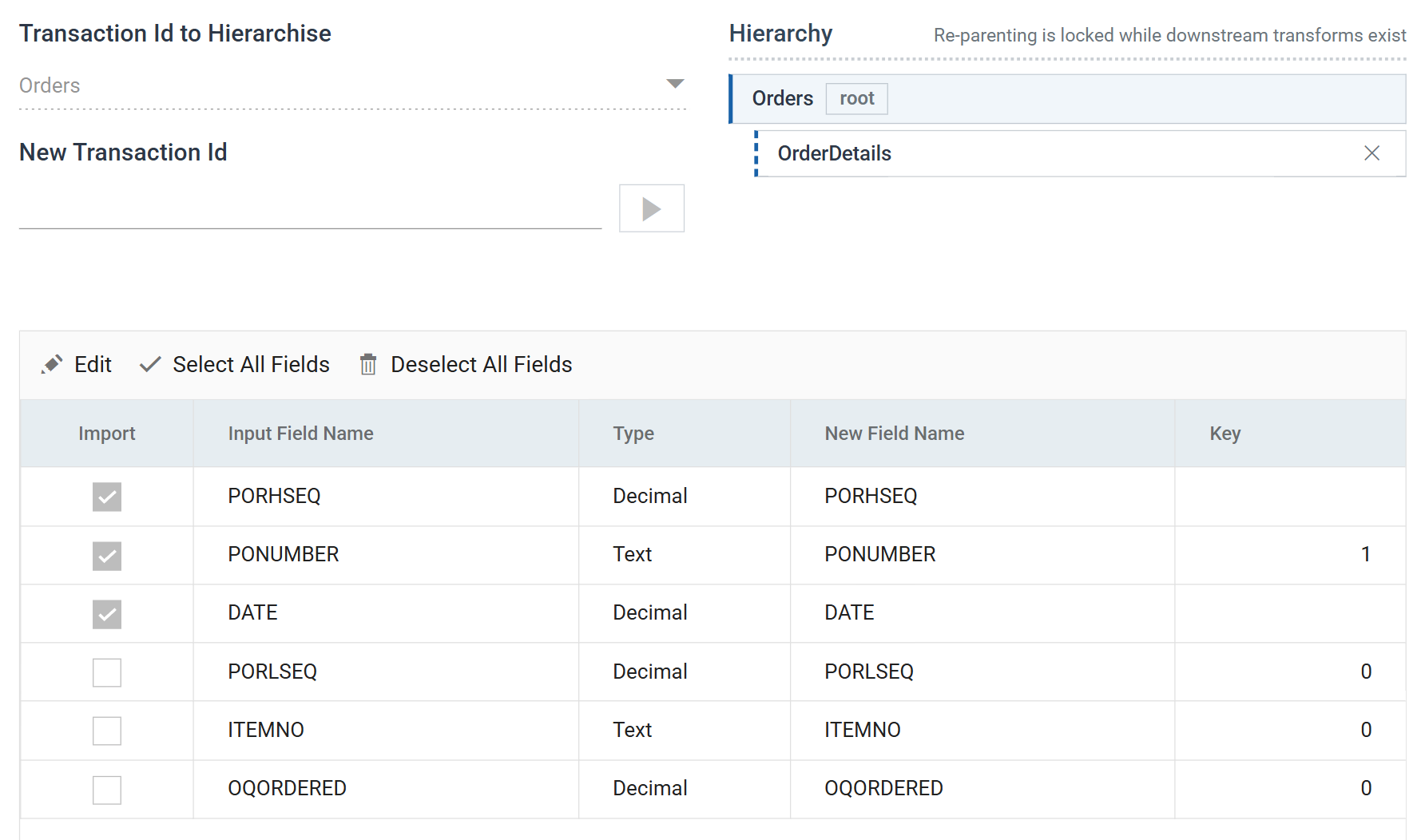

The Hierarchy transform's Field Mapping tab: Transaction Id to Hierarchise set to Orders, a Hierarchy tree showing Orders marked root with OrderDetails beneath it, and a field grid where PORHSEQ, PONUMBER and DATE are ticked for import, PONUMBER carries Key 1, and PORLSEQ, ITEMNO and OQORDERED are unticked

PONUMBER is Key 1, so the transform builds one Orders record per purchase order. The three header fields are ticked for import. The three line-level fields are unticked and stay on the OrderDetails child.

Map

The Map transform adds two fields and changes the type of a third, so that the connector can import the order into SAMINC.

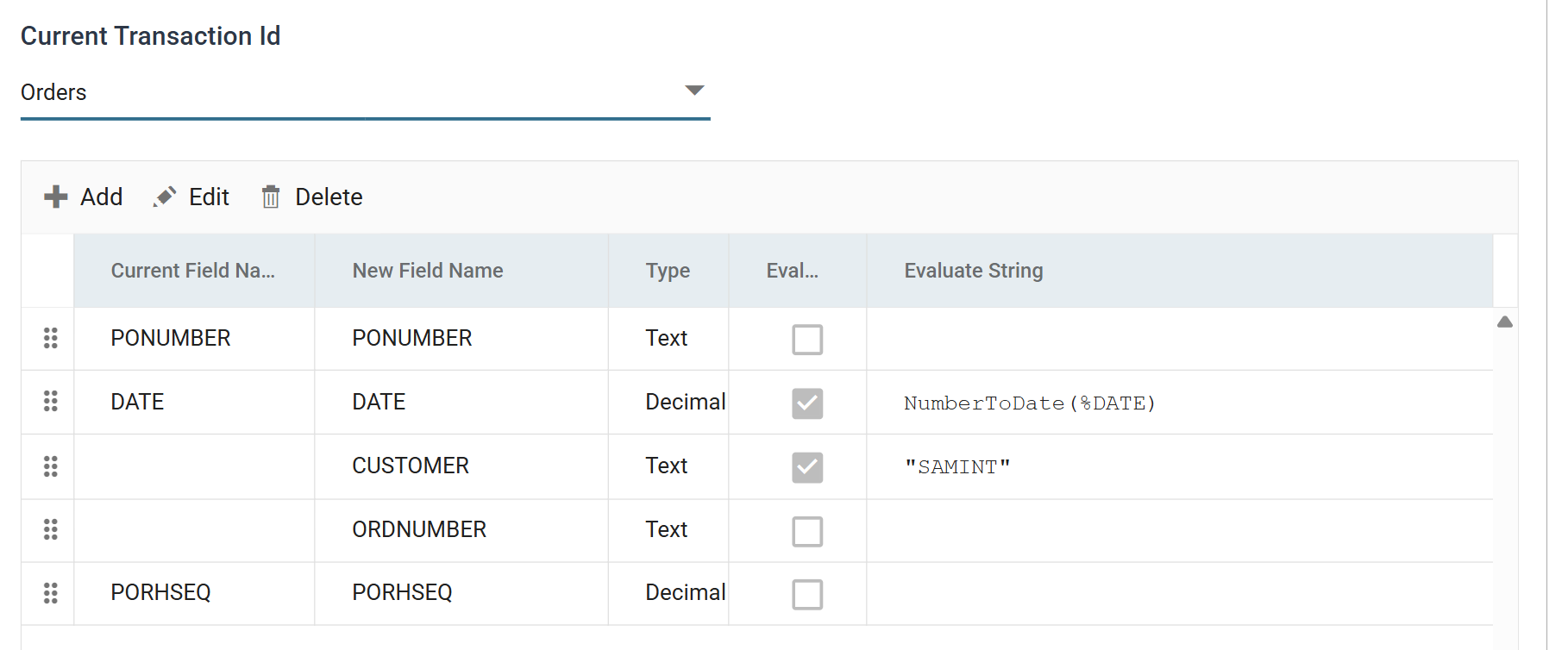

The Map transform's Field Mapping tab on the Orders transaction: PONUMBER and PORHSEQ carried through, DATE evaluating NumberToDate, CUSTOMER evaluating the literal SAMINT, and ORDNUMBER added with no value

  • DATE — Sage 300 stores a date as a number in yyyymmdd form, and the query returns it that way. NumberToDate converts it to a real date:

    NumberToDate(%DATE)

  • CUSTOMER — the static value "SAMINT", the A/R customer in SAMINC that intercompany sales are raised against. It is the counterpart of the vendor the query filters on.

  • ORDNUMBER — added empty. It gives the connector a field to write back the order number SAMINC generates. The filter below tests it, and after a run it tells you which order each purchase order produced.

Sage 300 connector

The connector defines how the dataset maps to the SAMINC O/E Order.

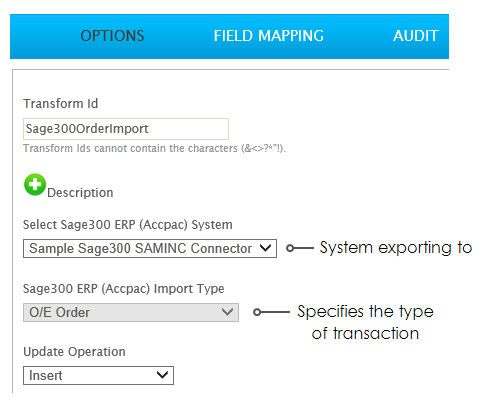

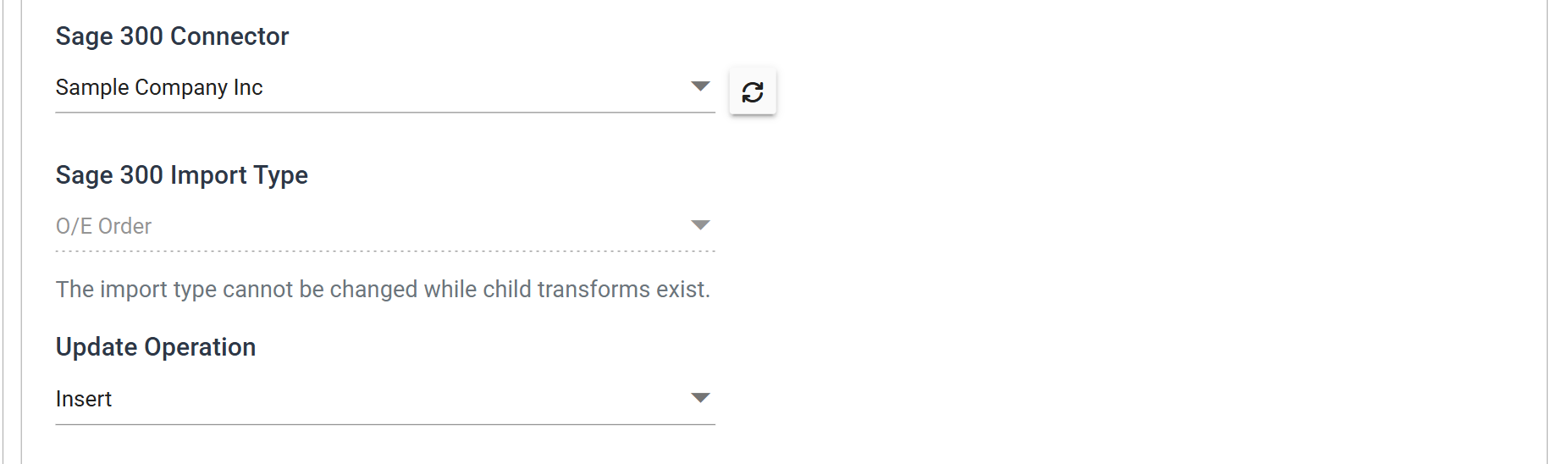

The Sage 300 connector's Setup tab: Sage 300 Connector set to Sample Company Inc, Sage 300 Import Type set to O/E Order, and Update Operation set to Insert

The connector named here is the SAMINC System Connector. This step writes into the other company. Everything before it read from SAMLTD, and the database writer at the end goes back to SAMLTD.

Field Mapping

Transaction Level Mapping pairs the two transactions the hierarchy built with the two Sage 300 views the import type expects, OE0520 for the header and OE0500 for the details.

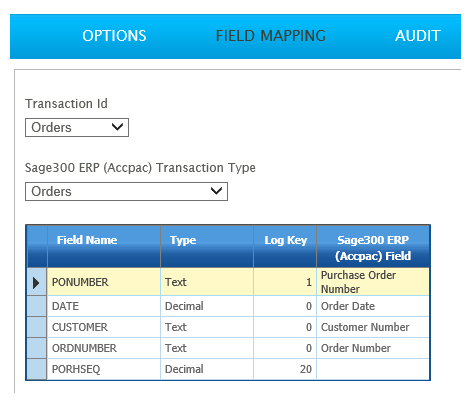

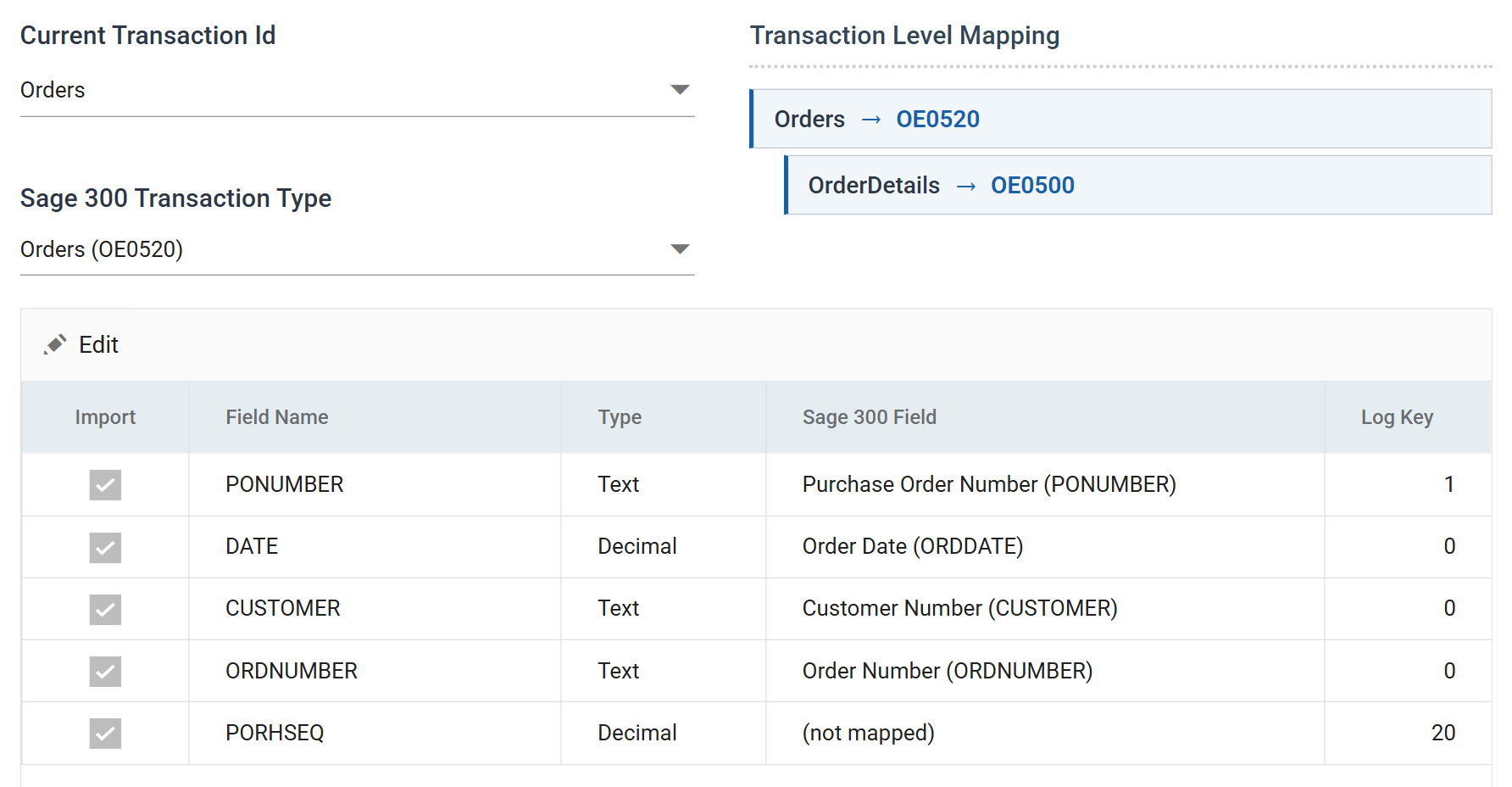

The connector's Field Mapping tab on the Orders transaction: a Transaction Level Mapping tree reading Orders to OE0520 with OrderDetails to OE0500 beneath it, and a field grid pairing PONUMBER with Purchase Order Number (PONUMBER), DATE with Order Date (ORDDATE), CUSTOMER with Customer Number (CUSTOMER), ORDNUMBER with Order Number (ORDNUMBER), and PORHSEQ with (not mapped)

PORHSEQ is (not mapped), because SAMINC does not need SAMLTD's internal sequence number. The database writer at the end of the integration does need it, and only mapped fields flow through a connector. Its Log Key of 20 carries it through. A non-zero Log Key makes an unmapped field available to downstream transforms, and a non-sequential one keeps it out of the audit report's Source column. See Making unmapped fields flow.

On the OrderDetails transaction, PORLSEQ is mapped to the POLINE optional field:

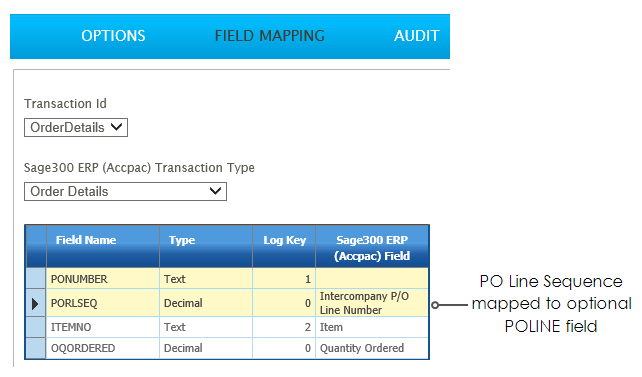

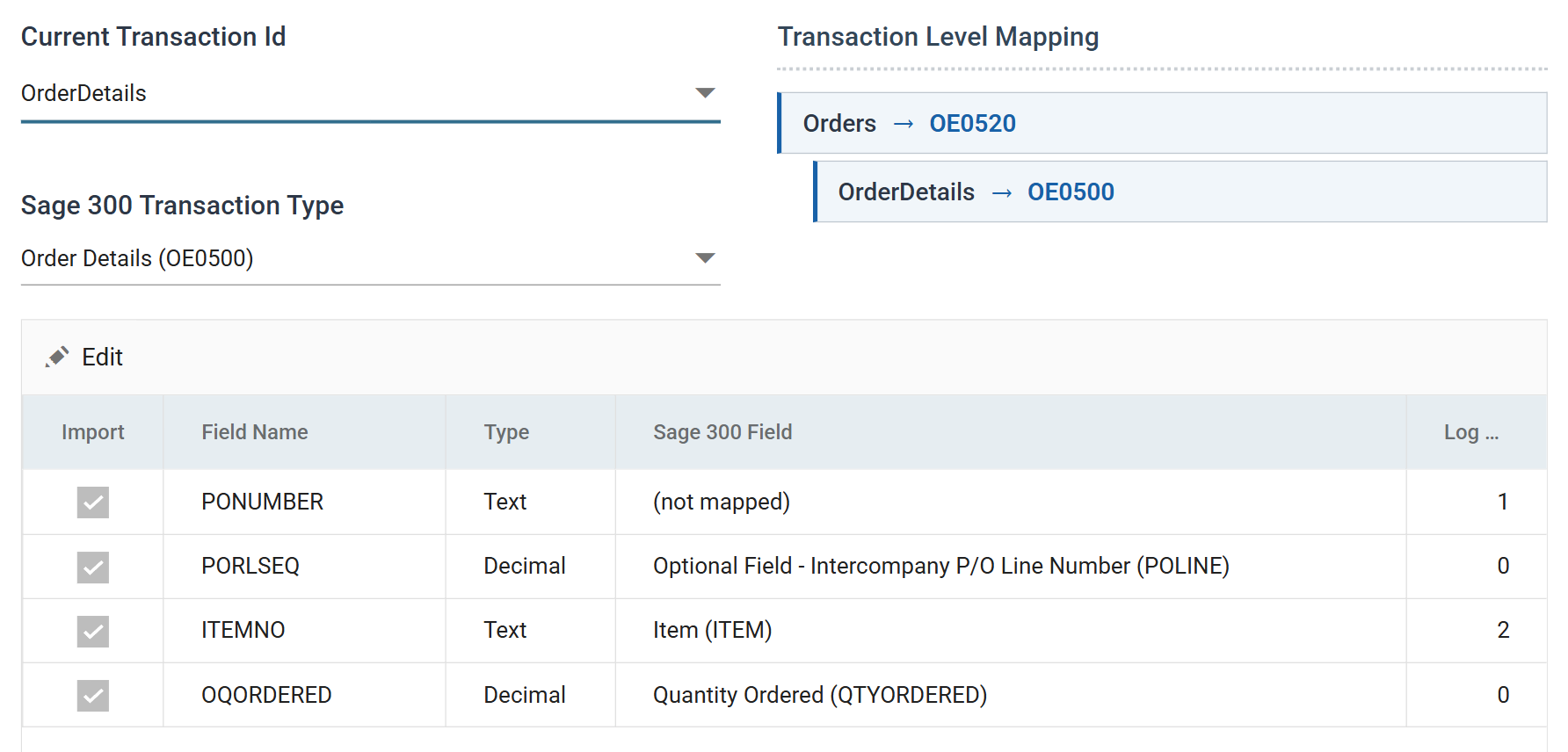

The connector's Field Mapping tab on the OrderDetails transaction: PORLSEQ mapped to Optional Field - Intercompany P/O Line Number (POLINE), ITEMNO to Item (ITEM), OQORDERED to Quantity Ordered (QTYORDERED), and PONUMBER not mapped

You map an optional field like any other Sage 300 field. It appears in the list under its own name. This mapping makes step 3 possible.

Running it

Refresh does not simulate the import. It runs it. When it finishes, ORDNUMBER holds the order number SAMINC generated, and the order is in the other company:

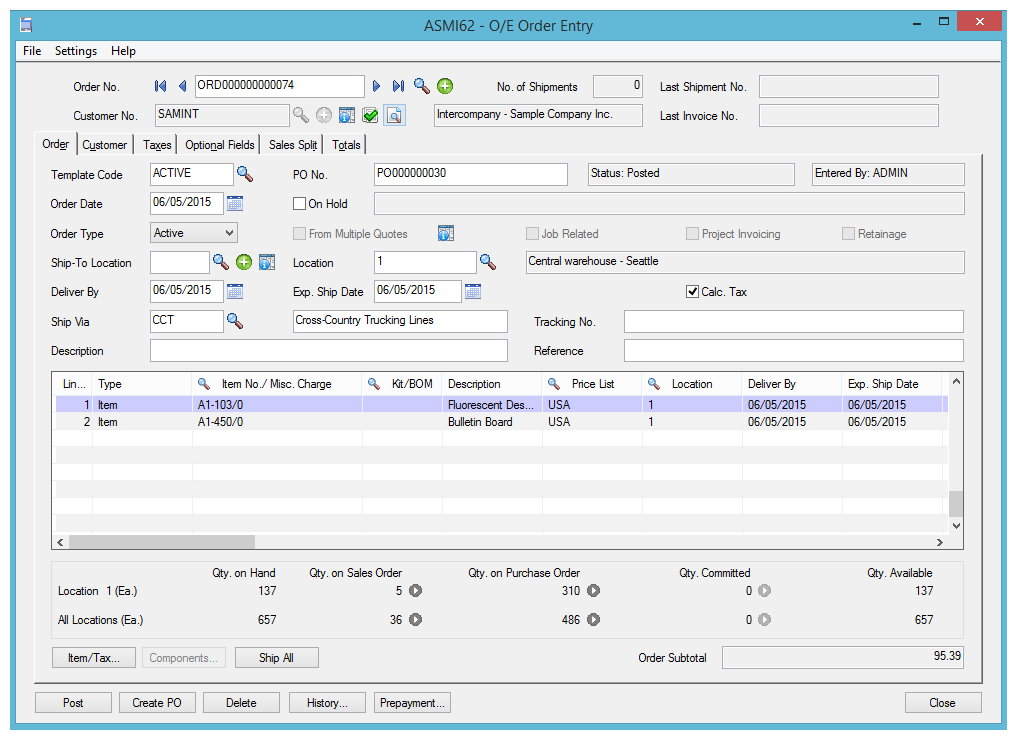

Sage 300's O/E Order Entry window in SAMINC, showing an order raised against customer SAMINT with the originating PO number and two item lines

The order line carries the POLINE optional field, holding the purchase order line sequence the reader supplied:

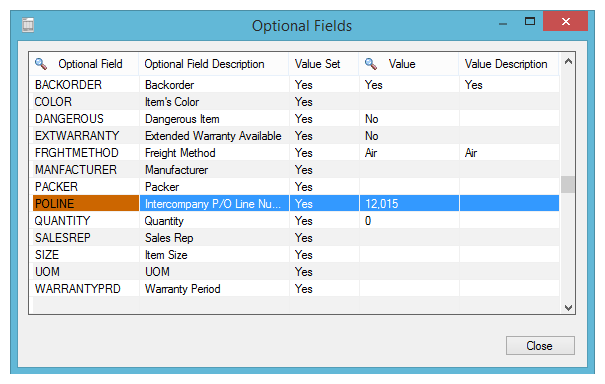

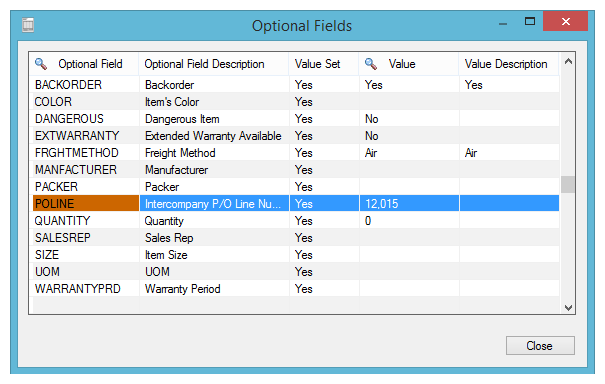

Sage 300's Optional Fields window for an O/E order line, with POLINE - Intercompany P/O Line Number highlighted and holding a value

Filter

The next three steps flag the SAMLTD purchase order as exported. They begin with a Filter, so that only orders that reached SAMINC are flagged.

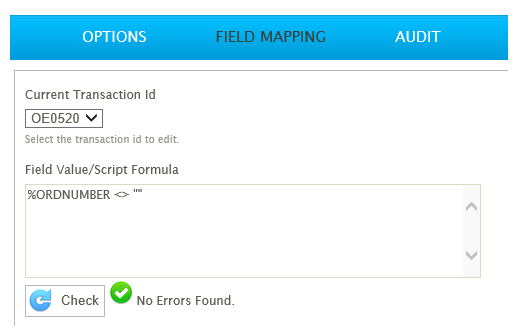

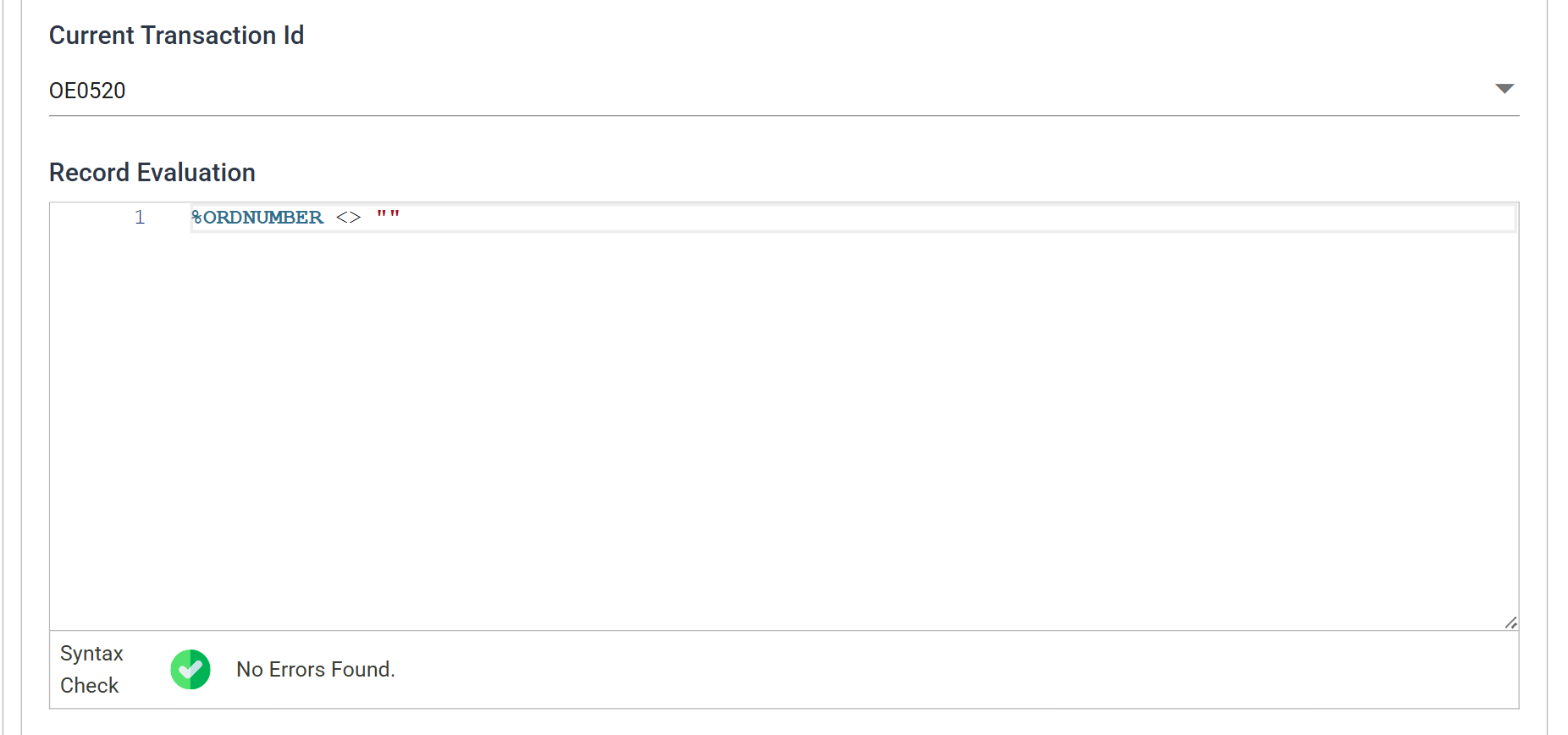

The Filter transform's Field Mapping tab: Current Transaction Id set to OE0520 and a Record Evaluation of %ORDNUMBER <> "", with the syntax check reporting No Errors Found

The test is %ORDNUMBER <> "": keep the record only if SAMINC gave it an order number.

This step is optional. Whether to keep it depends on the process you want. As written, an order that fails to import keeps its EXPORTED flag at No, and the next run tries it again. This repeats until the order imports or someone sets the optional field on the purchase order by hand.

Second Map

This map adds one field, holding the value to set the optional field to.

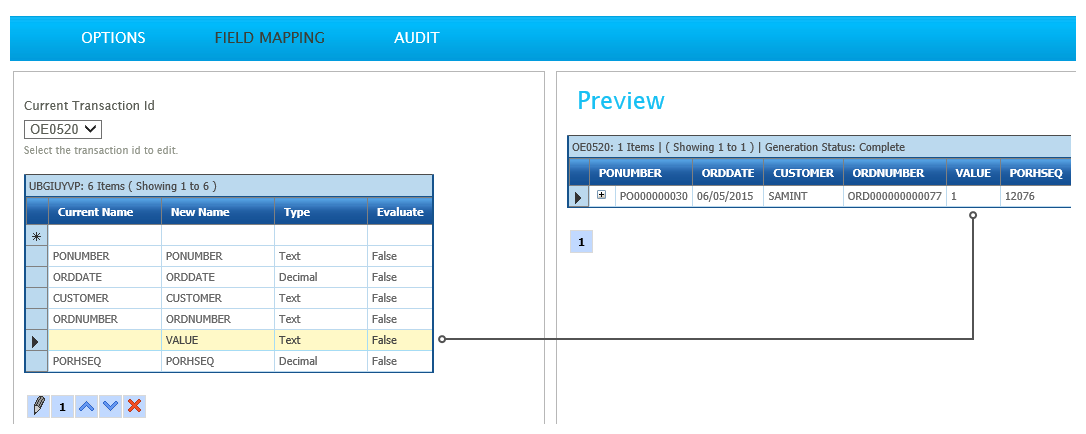

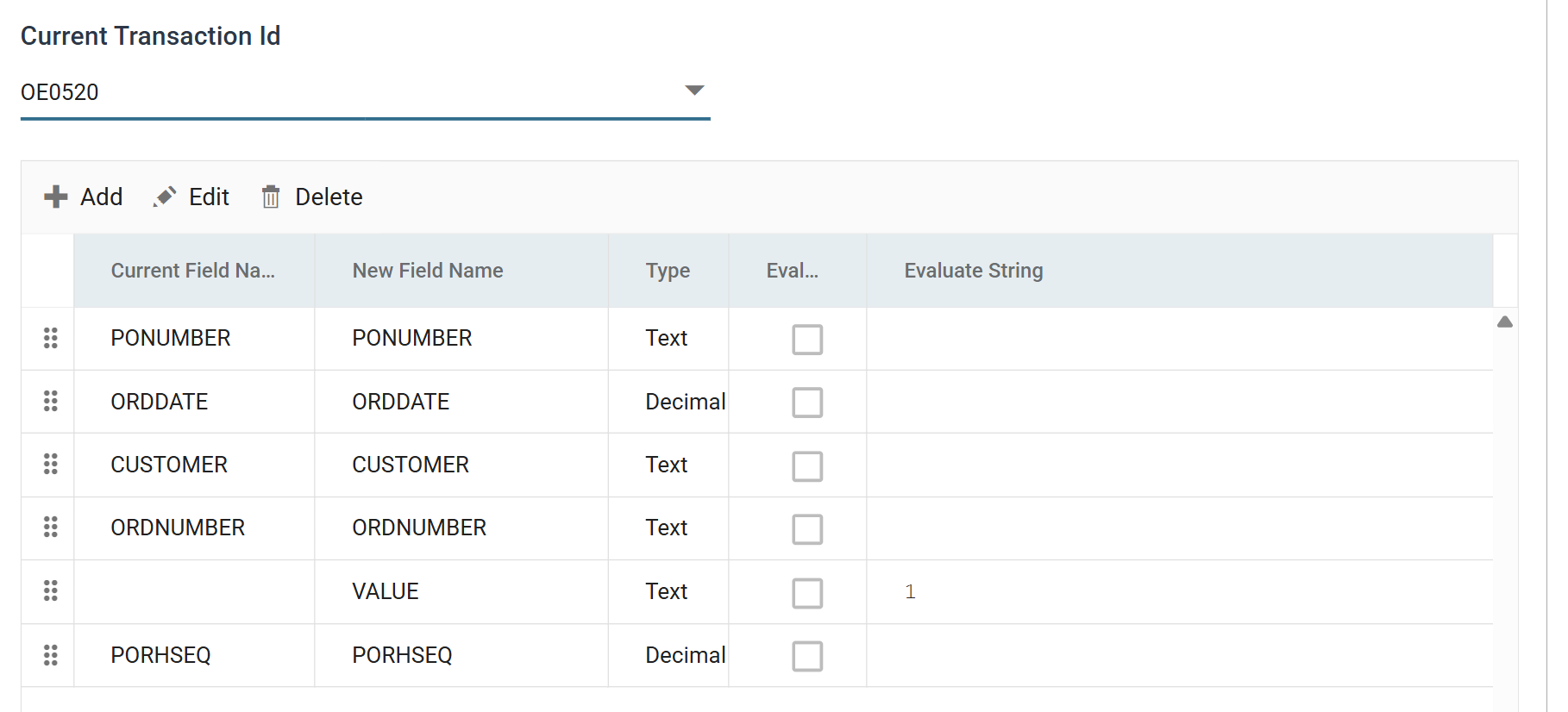

The Map transform's Field Mapping tab on the OE0520 transaction: the fields carried through from the connector, and VALUE added as Text with the value 1

VALUE is 1, the Yes of a Sage 300 Yes/No optional field. The transactions are now called OE0520 and OE0500. The connector renamed them to the Sage 300 views it mapped them to, and every transform downstream of a connector uses the new names.

Database Writer

The last step runs the update.

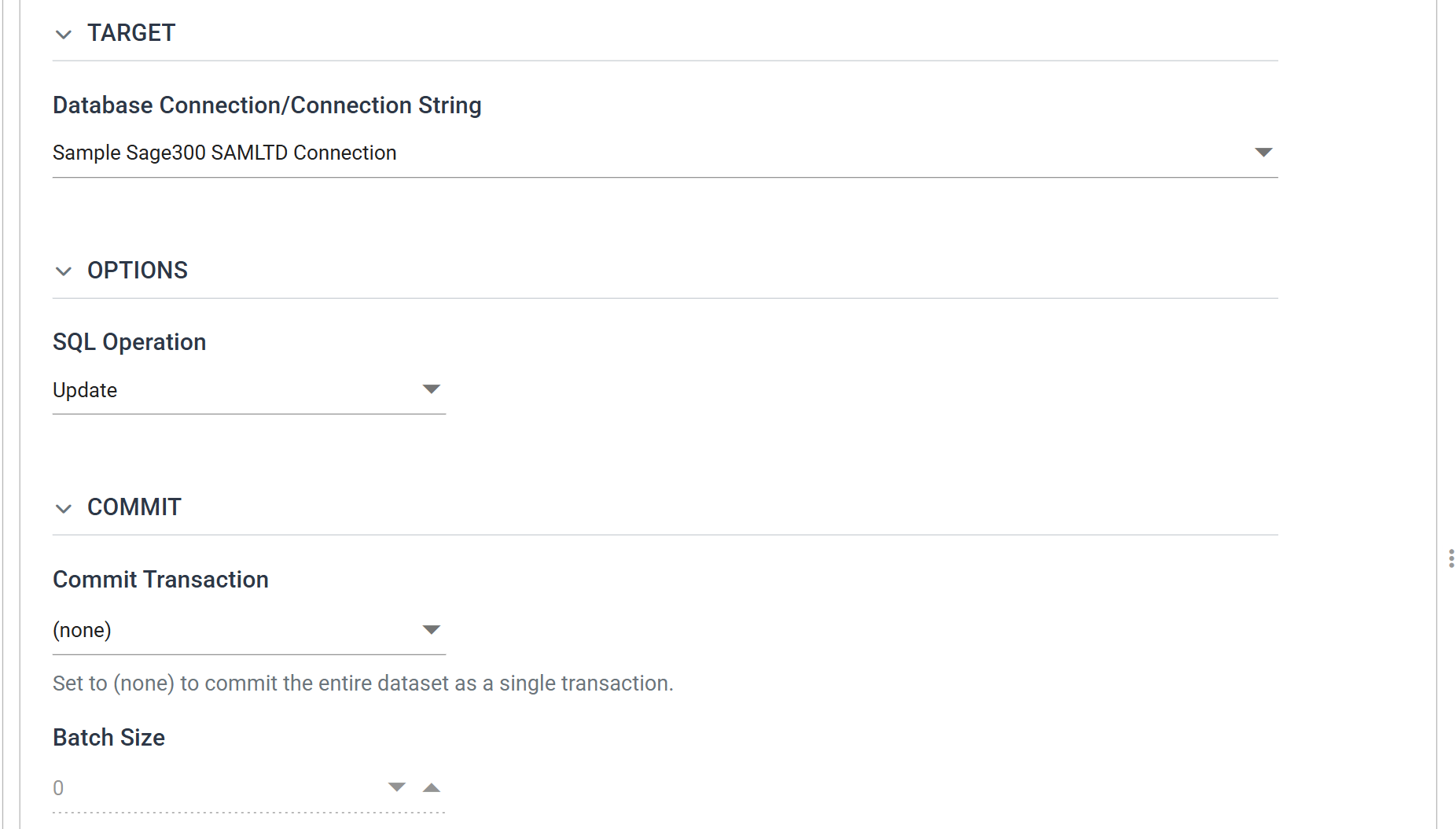

The database writer's Setup tab: Database Connection set to Sample Sage300 SAMLTD Connection, SQL Operation set to Update, Commit Transaction set to (none) and a Batch Size of 0

The connection is back to SAMLTD, because this is the return leg. The operation is Update, not Insert, because the EXPORTED optional field already exists on the order and the writer changes its value from No to Yes.

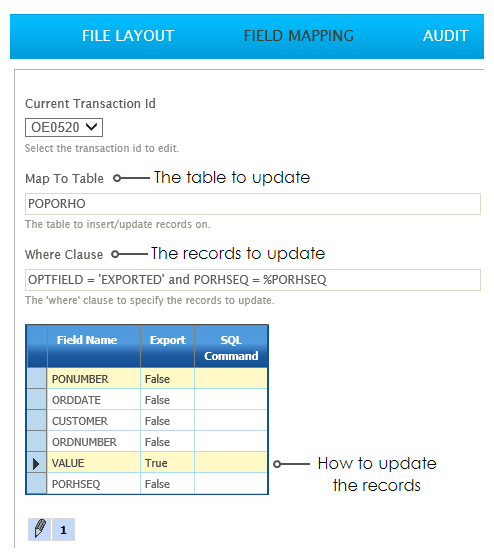

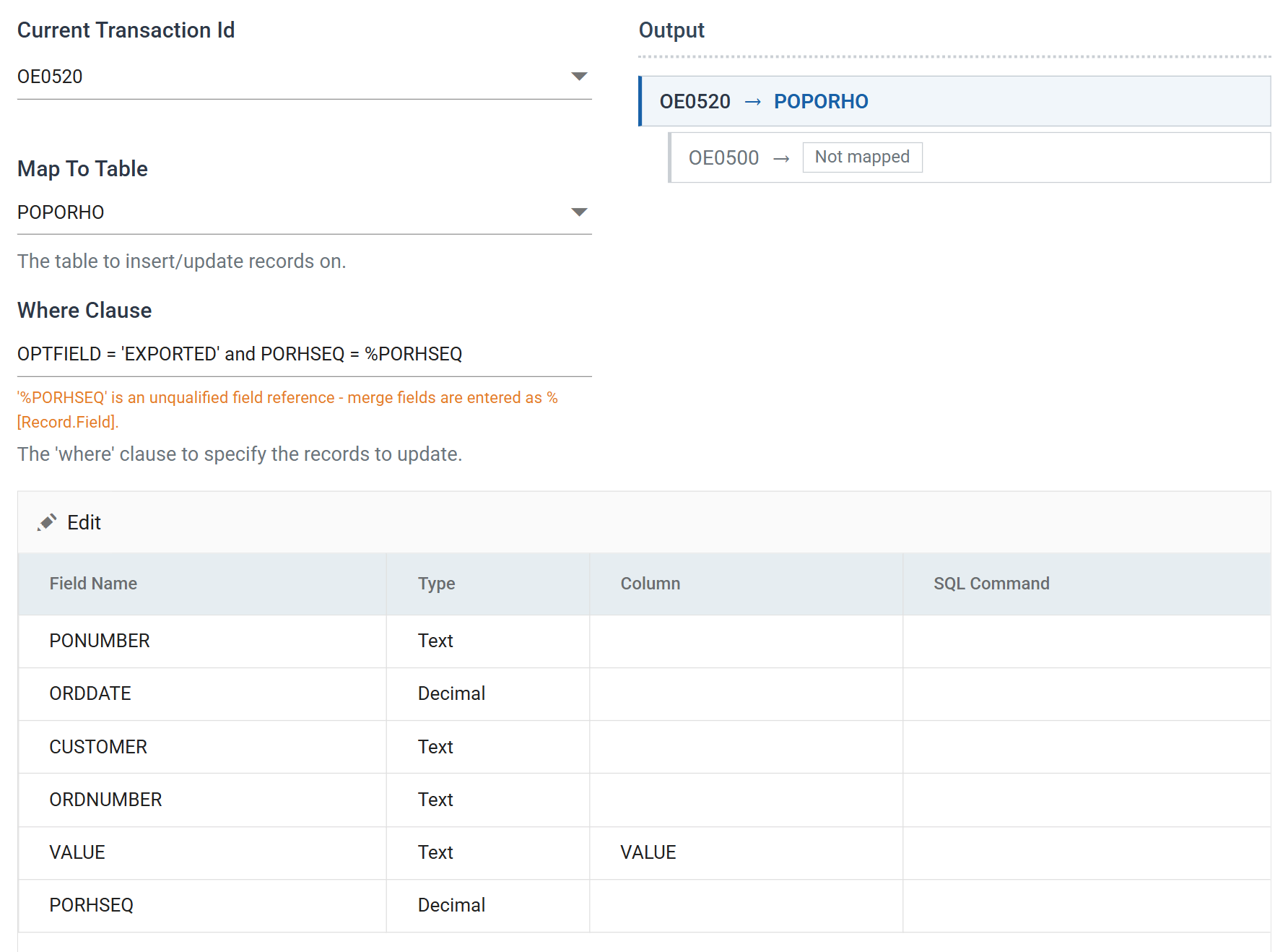

The writer's Field Mapping tab: Map To Table set to POPORHO, a Where Clause of OPTFIELD = 'EXPORTED' and PORHSEQ = %PORHSEQ, an Output tree reading OE0520 to POPORHO with OE0500 not mapped, and a field grid in which only VALUE is given a column

Three properties make up the update:

  • Map To Table — POPORHO, the purchase order header optional fields table.
  • Where Clause — OPTFIELD = 'EXPORTED' and PORHSEQ = %PORHSEQ. Together those two columns are the primary key of POPORHO, so the writer updates exactly one row. %PORHSEQ is a merge field that takes its value from the record being written. The connector carried PORHSEQ along unmapped for this reason.
  • Column — only VALUE is given one, so VALUE is the only column the update sets.

The advisory under the Where Clause, and why the update still runs

Version 6.1 shows an advisory beneath the Where Clause. It says that %PORHSEQ is an unqualified field reference and that merge fields are written %[Record.Field]. The clause still resolves and the update still runs. Use the qualified form in anything you write now.

After the update, the EXPORTED optional field on the purchase order reads Yes, and the next run of the integration will not pick it up:

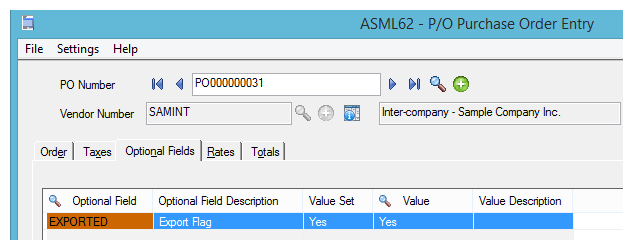

Sage 300's P/O Purchase Order Entry window on the Optional Fields tab, with EXPORTED - Export Flag showing a Value of Yes
