WebAPI Sample Integrations

Eight sample integrations ship with IMan: a query and an order post for each of Sage 200, Sage 300 and Sage X3, a file download and a redirect. The endpoints, web users and property set they need are set up with them.

GET/Query Request Samples

A GET request, parameterised by the route, that queries the Sage database for a customer's orders and returns them as JSON. The customer is the web user's own, from its property value; the location and the start date come from the request.

POST/Create Resource Samples

A POST request carrying an order as JSON, which the integration parses and posts into Sage through the connector, returning what was created.

GET/File Response Sample

A GET whose route names a document, answered with the file itself as a download. Needs no ERP.

Redirect Response Sample

A GET whose route names an order, answered with a redirect to the carrier's tracking page. Needs no ERP.

Before you start

Have a REST client such as Postman ready, and read the anatomy of an HTTP request & response.

Two pages explain what the samples take for granted:

Integration Design

The samples are that page's sequence, applied.

User Property & Request Relationship

The six Sage endpoints require authentication, and each of their samples reads a property value from the web user that called it. The two others allow anonymous requests.

What ships

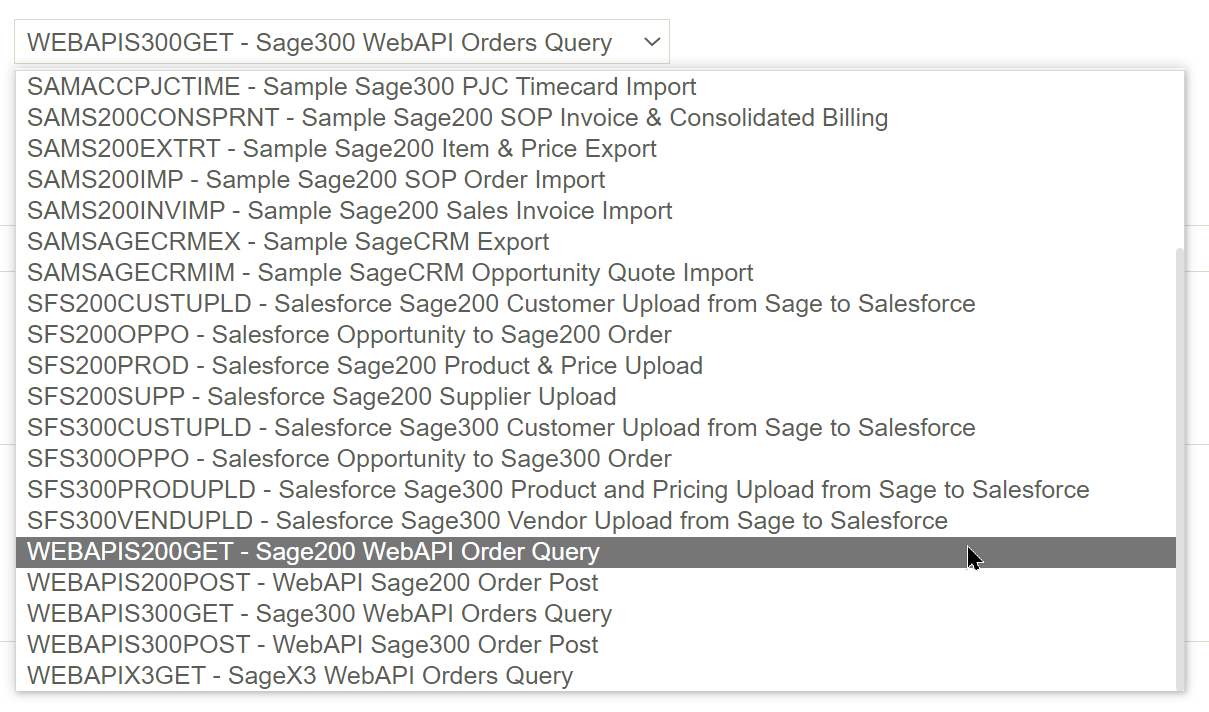

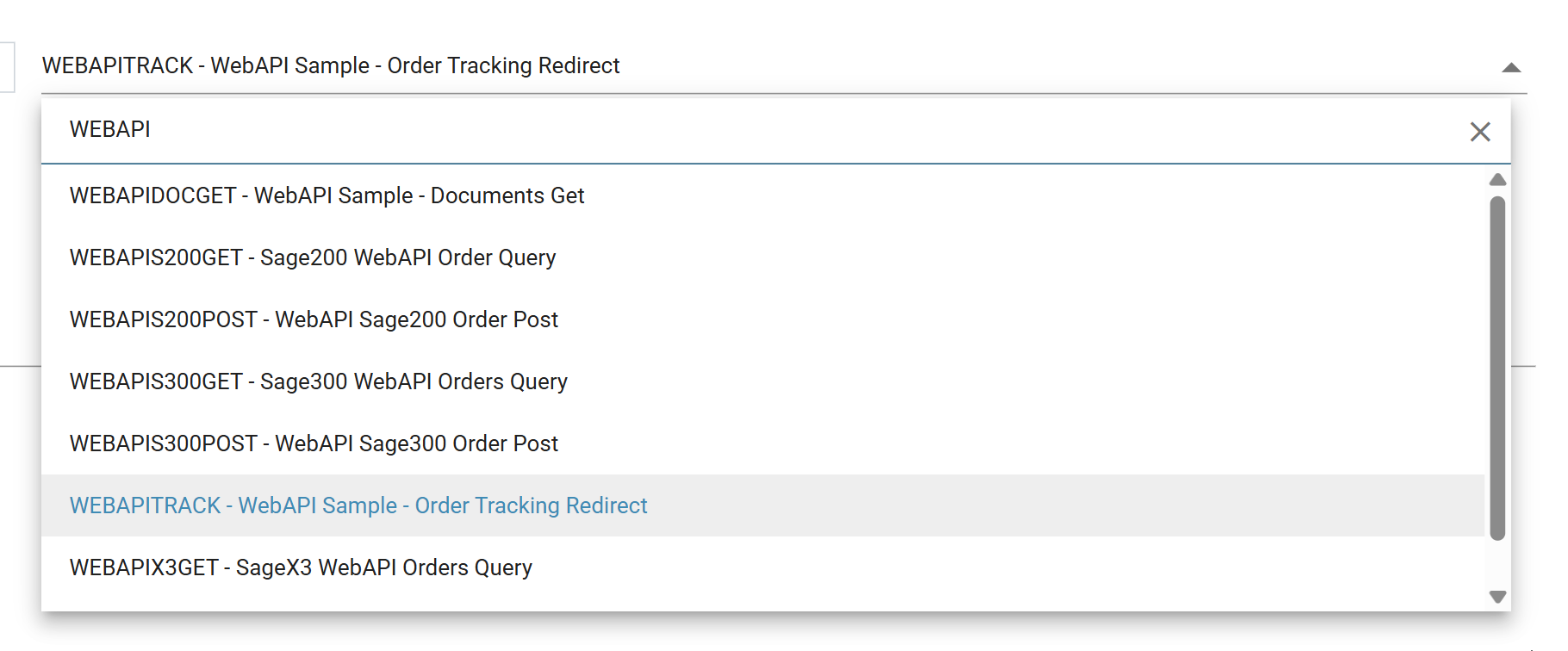

The integrations are prefixed WEBAPI; typing that into the integration list's filter box shows the eight together.

Integration	Endpoint	Method and route	Web user
WEBAPIS200GET	SAMS200GET	GET sage200orders/{location}?startDate={startDate}	SAGE200
WEBAPIS200POST	SAMS200POST	POST sage200order	SAGE200
WEBAPIS300GET	SAMS300GET	GET sage300orders/{location}?startDate={startDate}	SAGE300
WEBAPIS300POST	SAMS300POST	POST sage300order	SAGE300
WEBAPIX3GET	SAMX3GET	GET sagex3orders/{location}?startDate={startDate}	SAGEX3
WEBAPIX3POST	SAMX3POST	POST sagex3order	SAGEX3
WEBAPIDOCGET	DOCGET	GET documents/{id}	anonymous
WEBAPITRACK	TRACKGET	GET orders/{orderNo}/tracking	anonymous

The three web users authenticate with Basic authentication, and each is assigned to its own two endpoints. The six Sage endpoints share the property set Accounting ERP Request Properties, whose three properties, Sage200CustID, Sage300CustID and SageX3CustID, hold each user's customer account in the matching demo company.

Web user	Username	Password	User Token
SAGE200	sage200	sage200-321	BA5F01A5-819F-40AD-89EC-3910184D251E
SAGE300	sage300	sage300-789	776094C1-1DB4-4CD5-A6DB-449544550870
SAGEX3	sageX3	sagex3-456	C43F55FA-76FB-4741-B093-D18145534DE2

The samples are set up against the Sage demo companies. Point the Database Reader and the connector at your own before running one against live data.
