Databases Named by the Data

Sometimes the database is not known when the integration is built. A group runs one company database per region; a bureau runs one per client; a migration runs one per source system. The rows arriving carry the answer, and the connection has to be resolved from them, one row at a time.

This article builds that in both directions — a reader that fetches each order from the database its request names, and a writer that inserts each order into the database its data names — because they are two halves of one idea.

Where the reference material is

Every field on these screens is described in the User Guide, for the Database Reader and the Database Writer. This article is the worked example.

The setup

Two databases, IMANDOCSUK and IMANDOCSUS, each with an Orders table of the same shape. The three sample orders are split between them: the two London orders in the UK database, the Fairbanks one in the US database.

There are two databases because one would prove nothing. A parameterised connection exists to send each record somewhere the data chooses, and against a single target that is indistinguishable from a connection string with no parameter in it. Split the data and a preview returning all three orders has demonstrably opened two connections.

The connection

Under Setup → Database Connections, a connection whose database segment is a parameter rather than a name:

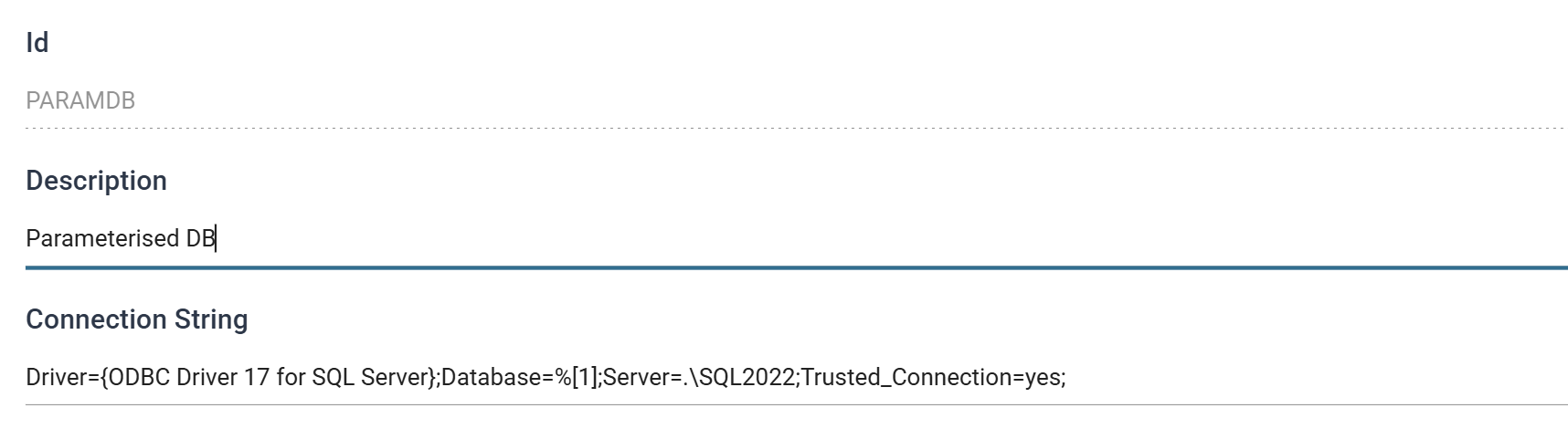

The PARAMDB connection's edit dialog. Id reads PARAMDB, Description reads Parameterised DB, and the Connection String reads Driver equals ODBC Driver 17 for SQL Server, Database equals percent bracket one bracket, Server equals dot backslash SQL2022, Trusted underscore Connection equals yes.

Field Value
Id PARAMDB
Description Parameterised DB
Driver={ODBC Driver 17 for SQL Server};Database=%[1];Server=.\SQL2022;Trusted_Connection=yes;

Everything else is fixed — same server, same driver, same credentials. Only the database is left to the data.

The string must be ODBC or OleDB format; native .NET connection strings are not valid.

The transform's Database Connection drop-down lists the Description, not the Id, so it is Parameterised DB you pick there and PARAMDB you will find in an exported job definition.

Part 1 — Reading

Step a — The requests

The reader has to be told what to fetch, so something has to feed it. Here that is a CSV file, order-requests.csv:

TargetDb,RequestedOrderId
IMANDOCSUS,FBRN-309242
IMANDOCSUK,FBRN-309243
IMANDOCSUK,FBRN-309244

Two columns: which database, and which order from it.

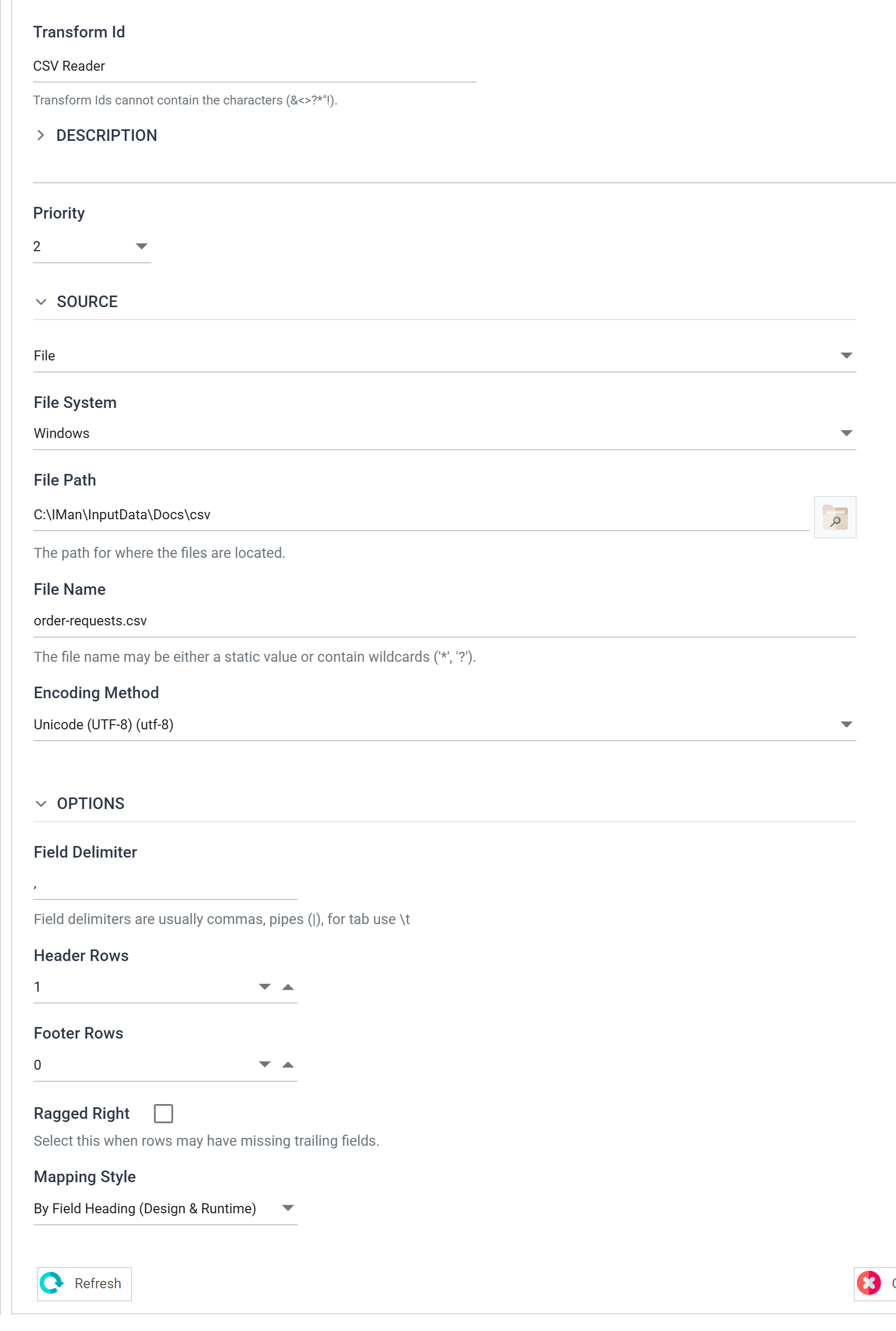

The CSV Reader Setup tab. Transform Id is CSV Reader, File Name is order-requests.csv, Header Rows is 1 and Mapping Style is By Field Heading.

Field Value
Transform Id CSV Reader
File Path C:\IMan\InputData\Docs\csv
File Name order-requests.csv
Header Rows 1
Mapping Style By Field Heading (Design & Runtime)
Hierarchy Style (none)

Do not call the key column OrderId

It is RequestedOrderId deliberately. The reader's own result set contains an OrderId, and two fields of the same name collide — the second arrives suffixed _1.

Nothing fails; you simply end up with OrderId and OrderId_1 in every downstream mapping, and have to remember which is which. Naming the input column something the output cannot also be called avoids it entirely.

Step b — The Database Reader

Drag a Database Reader onto the surface and make it a child of the CSV Reader by dragging a connector from the CSV Reader to it.

A parameterised connection needs a parent

The Connection Parameters rows render only on a reader that is the child of another transform. A top-level Database Reader has no incoming data to resolve a parameter from, so no rows are offered and none can be saved.

If the parameter rows are missing, this is why.

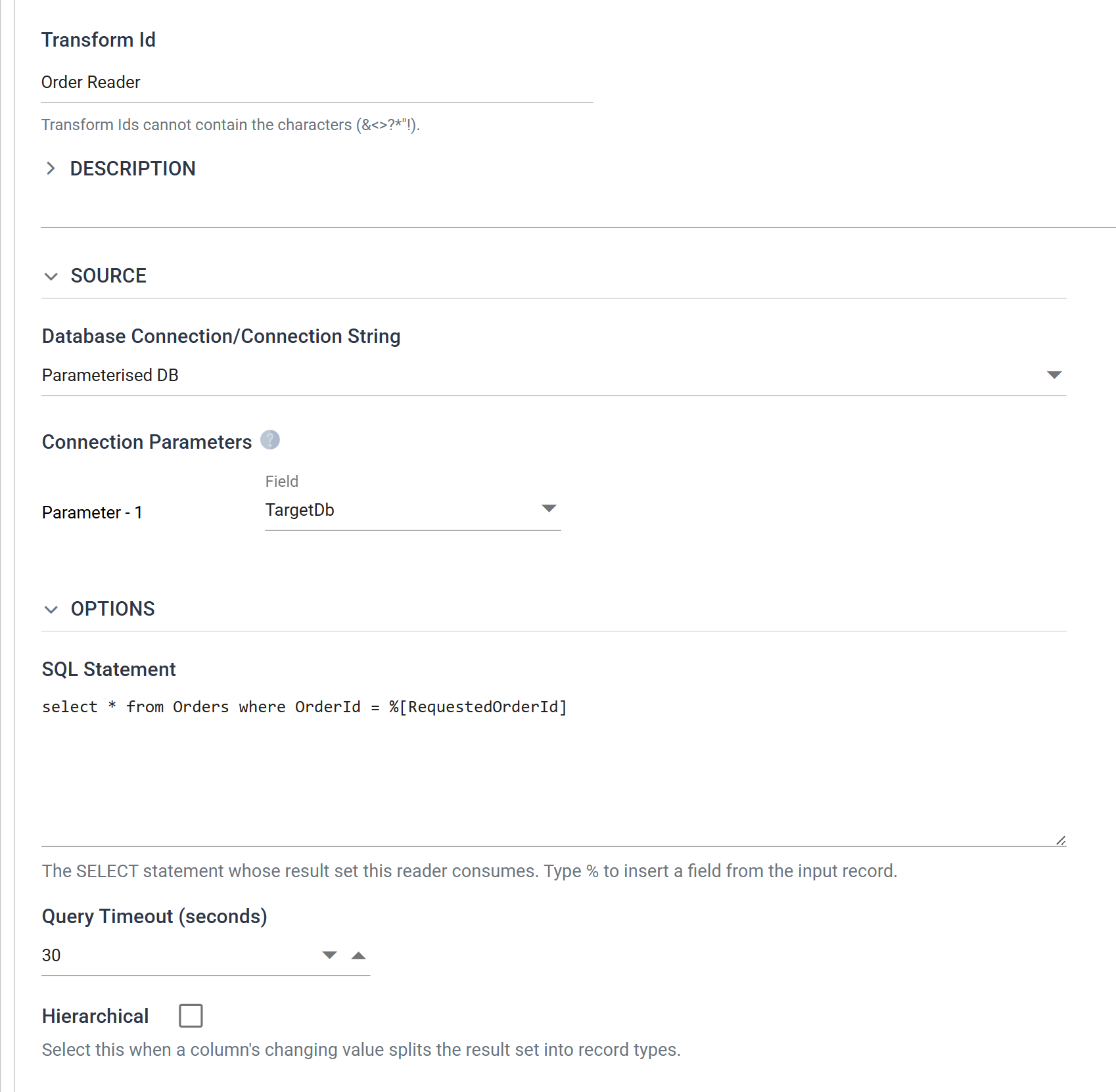

The Database Reader Setup tab. Transform Id is Order Reader, Database Connection is Parameterised DB, a Connection Parameters section shows Parameter - 1 with its Field set to TargetDb, and the SQL Statement reads select star from Orders where OrderId equals percent bracket RequestedOrderId bracket.

Field Value
Transform Id Order Reader
Database Connection Parameterised DB
Parameter - 1 → Field TargetDb Which incoming field fills %[1] in the connection string
SQL Statement select * from Orders where OrderId = %[RequestedOrderId]
Query Timeout (seconds) 30

The two different %[ ] on this one screen

This is the part worth slowing down for, because the same syntax is doing two unrelated jobs:

Where Resolved Chooses
%[1] in the connection string before the connection opens which database
%[RequestedOrderId] in the SQL statement after it opens which rows

The connection parameter is bound through the Parameter - 1 drop-down, and it is positional — %[1] is the first placeholder in the string. The SQL parameter is written straight into the statement and names its field directly; typing % in the SQL box offers the available fields.

The drop-down only offers fields the reader carries from its parent. A connection has to be resolved before the read can run, so a column that the read itself would return can never supply one. TargetDb qualifies because it comes from the CSV; Country would not, because it comes out of the database this parameter is choosing.

Step c — What comes back

A child Database Reader extends the incoming transaction rather than creating a new one. Its field list is the request's fields followed by the result set's:

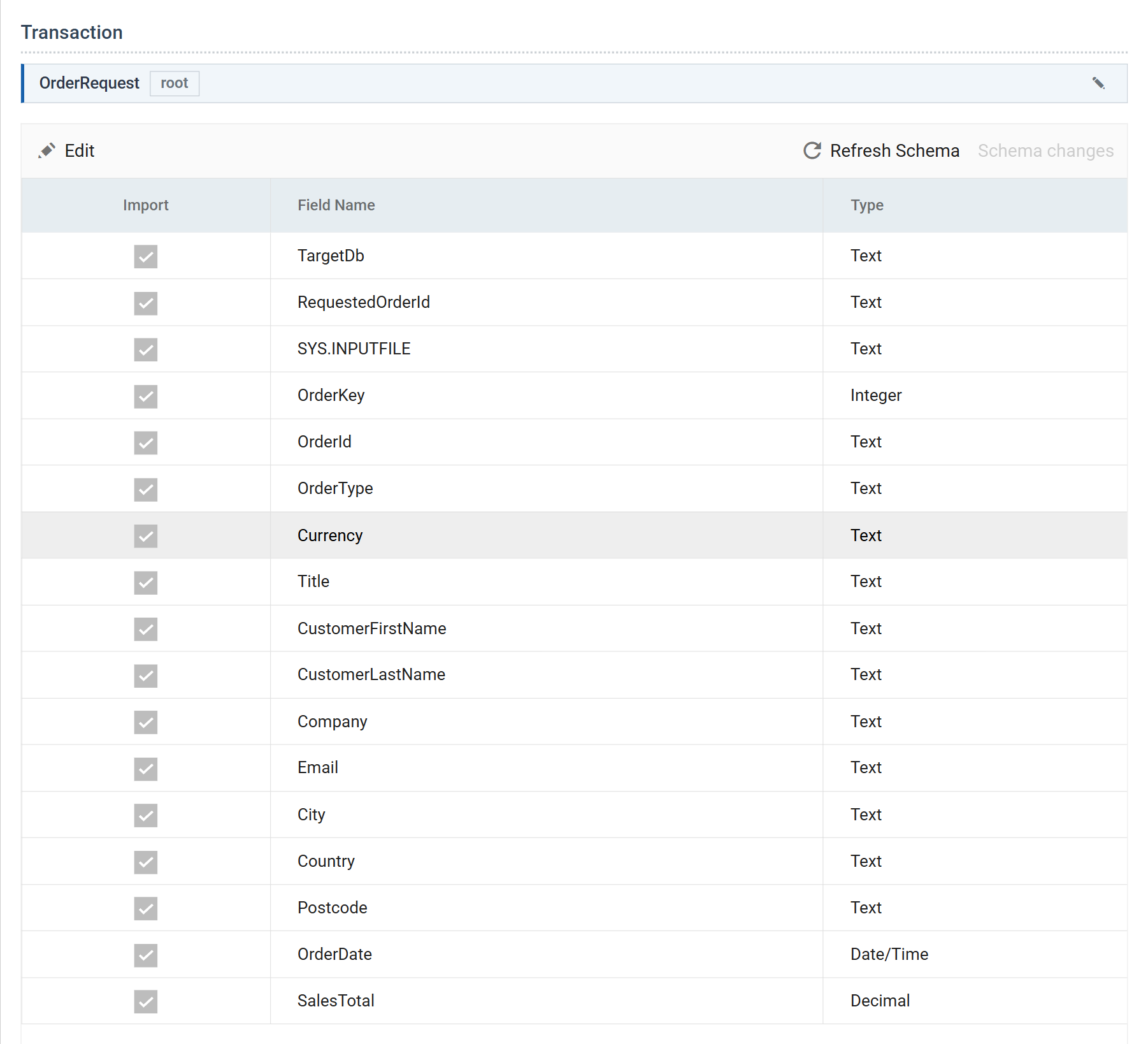

The Order Reader Field Mapping tab, showing a single transaction OrderRequest whose field list begins with TargetDb, RequestedOrderId and SYS.INPUTFILE and continues with OrderKey, OrderId, OrderType, Currency, Title, CustomerFirstName, CustomerLastName, Company, Email, City, Country, Postcode, OrderDate and SalesTotal.

From Fields
The CSV request TargetDb, RequestedOrderId, SYS.INPUTFILE
The SELECT OrderKey, OrderId, OrderType, Currency, Title, CustomerFirstName, CustomerLastName, Company, Email, City, Country, Postcode, OrderDate, SalesTotal

One row in, one row out — this is a lookup that happens to be spelled as a reader. Had the SELECT returned several rows per request, they would have arrived as several transactions.

Press Refresh.

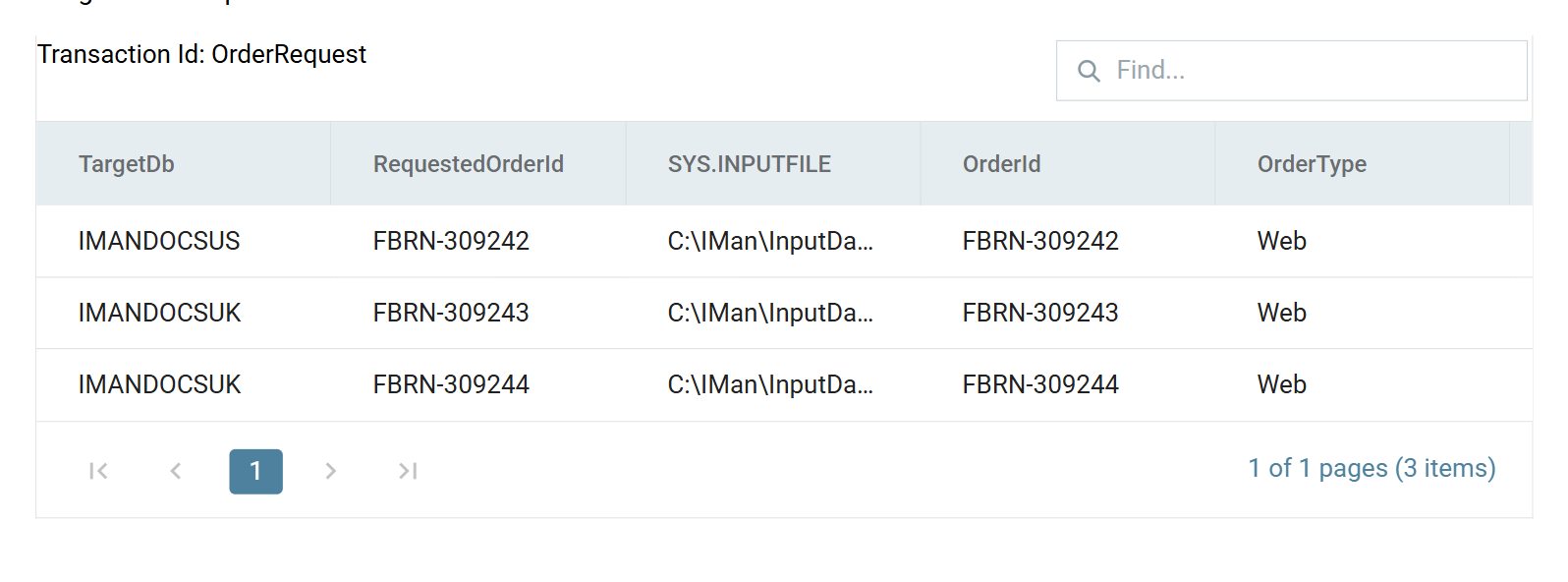

The preview grid for transaction OrderRequest, showing three rows. The TargetDb column reads IMANDOCSUS, IMANDOCSUK and IMANDOCSUK; RequestedOrderId reads FBRN-309242, -309243 and -309244; and the OrderId column returned by each query matches the order requested on that row.

All three orders come back. Two came from IMANDOCSUK and one from IMANDOCSUS; no single connection string could have returned this result set.

Part 2 — Writing

The writer half is the mirror image. orders-by-database.csv carries a leading TargetDb column naming the database each order is to be written to, and the writer is pointed at the same Parameterised DB connection.

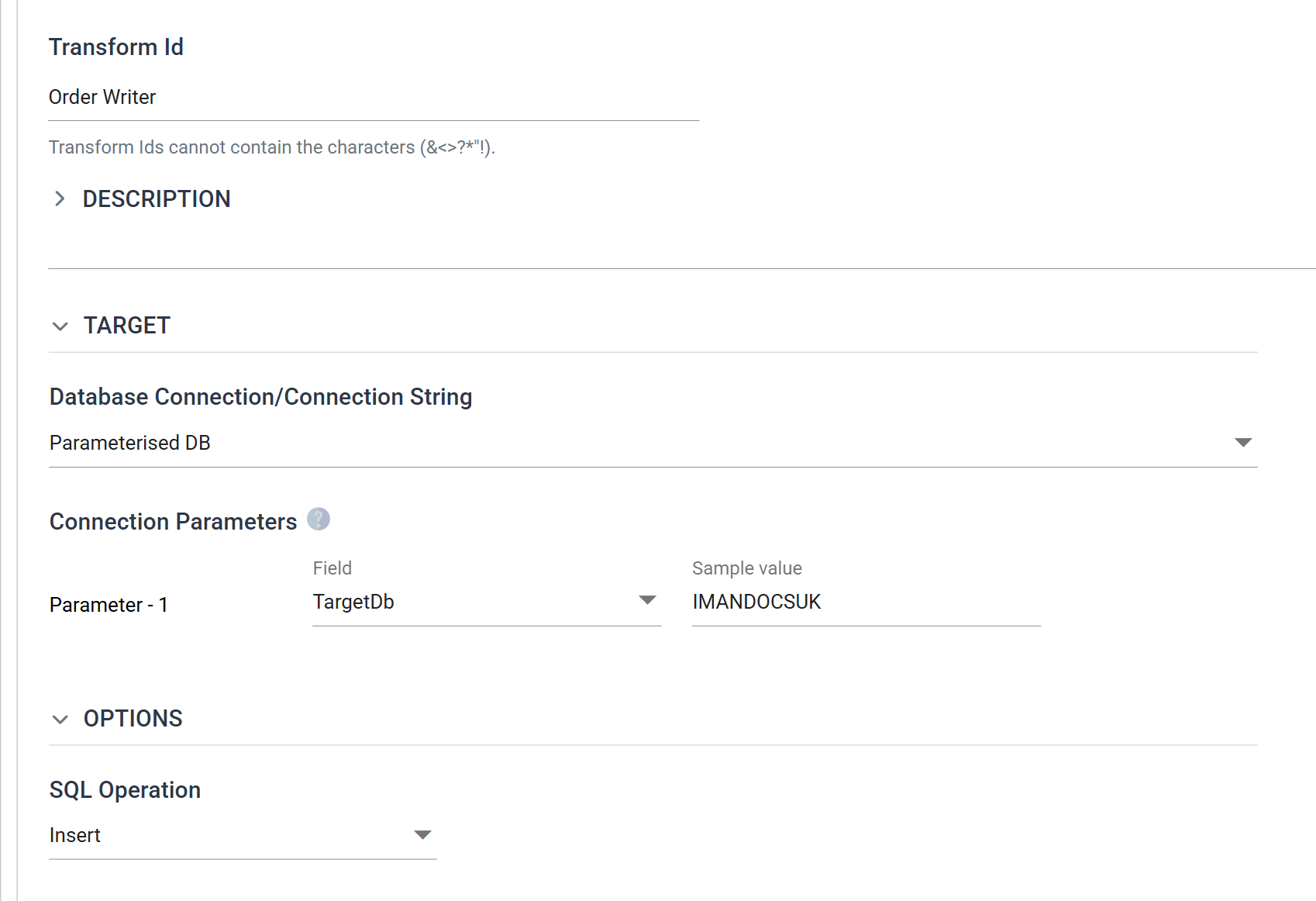

The Database Writer Setup tab. Transform Id is Order Writer, Database Connection is Parameterised DB, Connection Parameters shows Parameter - 1 with Field set to TargetDb and a Sample value of IMANDOCSUK, and SQL Operation is Insert.

Field Value
Transform Id Order Writer
Database Connection Parameterised DB
Parameter - 1 → Field TargetDb
Parameter - 1 → Sample value IMANDOCSUK Only the writer has this
SQL Operation Insert
Commit Transaction (none) Commits the whole dataset as one transaction

Why the writer needs a sample value and the reader does not

A writer has to show you a list of tables and columns to map onto, and it cannot fetch one without opening a connection — at design time, before any row exists. The Sample value is a stand-in used for exactly that, and for nothing at runtime.

The reader needs none, because at design time it resolves the connection from the first row of the preceding transform's preview, which is a real value.

Leave TargetDb unmapped

The column exists to steer the connection, not to be written. Mapping it to a table column would store the routing decision in the routed data.

A hierarchical reader from a UNION

One more thing a Database Reader can do that is not obvious: split a single result set into record types, the same way the CSV Reader splits a file.

This one is a top-level reader on an ordinary, non-parameterised connection:

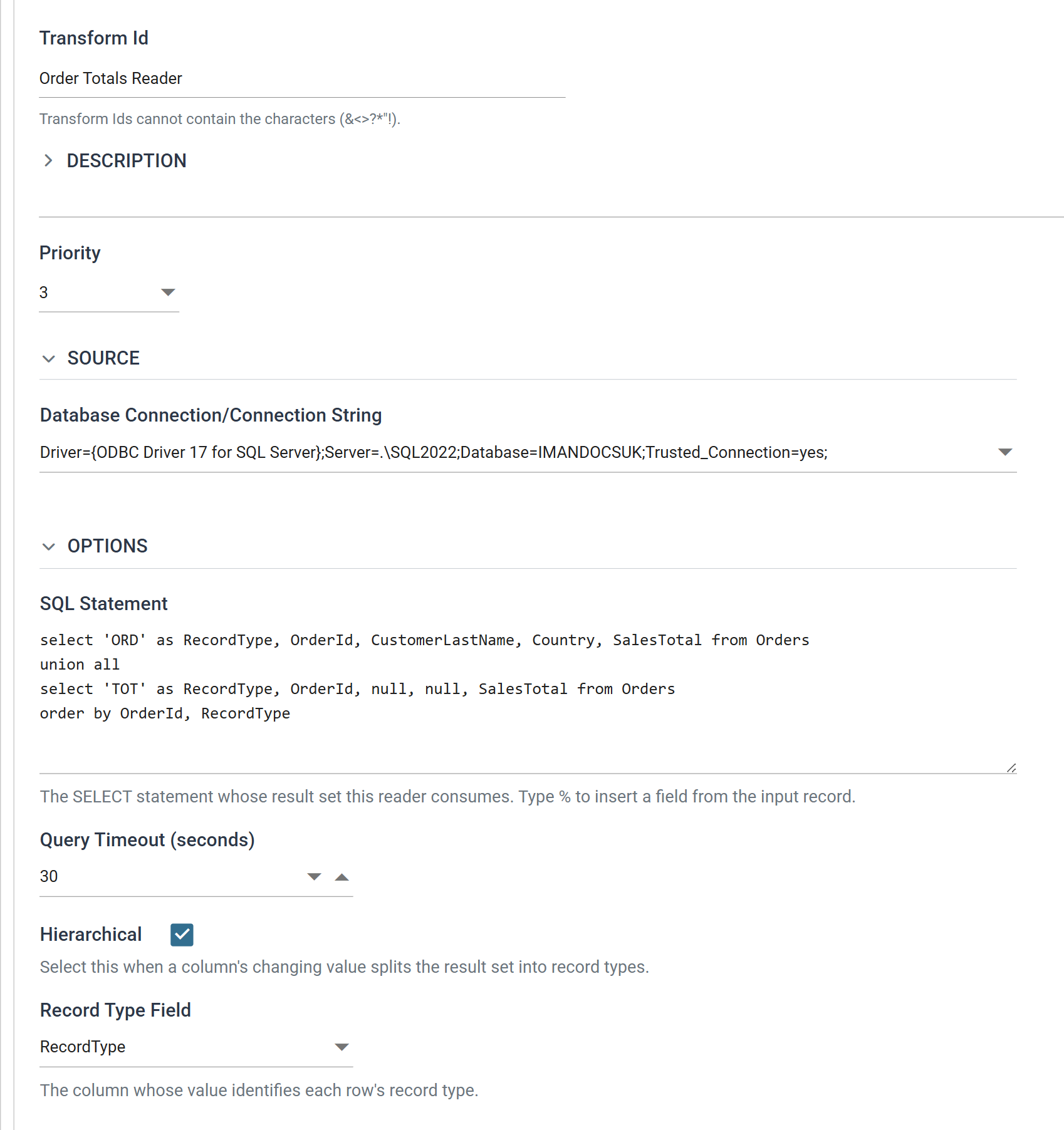

The Order Totals Reader Setup tab. The SQL Statement holds a UNION ALL of two selects, the first labelling its rows ORD and the second TOT, with Hierarchical ticked and Record Type Field set to RecordType.

select 'ORD' as RecordType, OrderId, CustomerLastName, Country, SalesTotal from Orders
union all
select 'TOT' as RecordType, OrderId, null, null, SalesTotal from Orders
order by OrderId, RecordType
Field Value
Transform Id Order Totals Reader
Hierarchical ticked
Record Type Field RecordType

The SELECT labels its own rows, and RecordType is an ordinary column that happens to hold a constant. Hierarchical turns that column into the record type, and the reader builds one transaction per distinct value — ORD as the root, TOT as its child — keyed on OrderId.

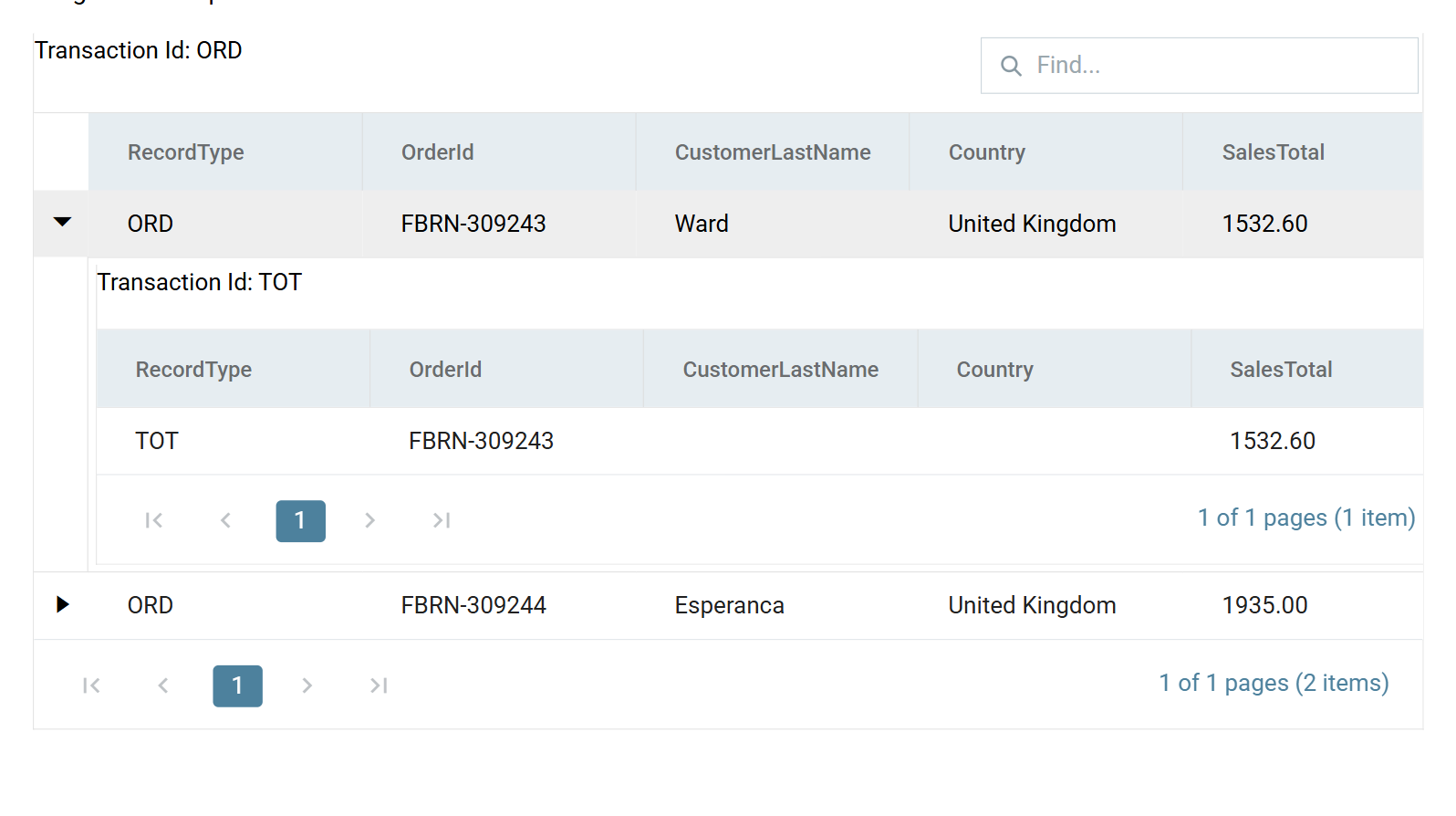

The preview grid for the Order Totals Reader, showing ORD rows each expandable to reveal a TOT child carrying the same OrderId and SalesTotal.

The ORDER BY is not decoration

The reader streams, so a parent must be read before its children exactly as in a hierarchical file. order by OrderId, RecordType guarantees each ORD arrives before its TOT — ORD sorts before TOT alphabetically.

A SELECT without an ORDER BY has no defined row order, whatever it happens to return today; a UNION ALL is free to interleave its two halves, and the plan can change when the data does. Order the result set explicitly whenever a Database Reader is hierarchical.

Verified against IMan 6.1, September 2026.
