Hierarchical Data Files

A hierarchical file is one where a single file carries more than one kind of record — an order header, its lines, its charges — with a column saying which kind each row is.

This article reads one with a CSV Reader, using Keyed Fields so that the rows do not have to arrive in any particular grouping.

The file

orders-keyed.csv holds three orders. The first column is the record type — H, D, C — and the second is always the order it belongs to:

H,FBRN-309242,Web,USD,Mr,Ronald,English,Imperial Soap Inc,[email protected],Fairbanks,USA,79160,2016-03-11,282.00
H,FBRN-309244,Web,GBP,Ms,Marie,Esperanca,Endemol Building,[email protected],London,United Kingdom,W15 7UU,2016-03-12,1935.00
H,FBRN-309243,Web,GBP,Miss,Claire,Ward,F3,[email protected],London,United Kingdom,E3 4RR,2016-03-11,1532.60
D,FBRN-309243,2,6,A1-103/0,Desklamp,22.50
C,FBRN-309244,Assembly,60.00
D,FBRN-309242,2,30,A1-401/0,Big Style Notepad,5.10
C,FBRN-309242,Delivery,29.00
D,FBRN-309243,1,2,S1-200/B,Flat Screen 2M,141.80

Look at the order of those rows. No order's lines are next to it, and no order's lines are even next to each other. FBRN-309243's line 2 arrives before FBRN-309242 has been mentioned at all. A file like this is what Keyed Fields is for.

The three record types do not share a column layout — H has fourteen columns, D has seven, C has four, so this file has no heading row and is mapped By Position.

What Keyed Fields actually buys you

It buys interleaving, not freedom from ordering.

With Ordered Data, structure comes from position: each parent must be followed by its own children and nothing else. With Keyed Fields, structure comes from the key columns, so children belonging to different parents may be mixed together in any order.

What does not change is that a parent must still be read before any of its children. The reader streams rather than buffering the file, so a child whose parent it has not yet seen fails the whole run:

Orphaned transaction encountered whilst inserting transaction into
hierarchical dataset ... Transaction Id [OrderLine] Parent [Order]
Key Values [FBRN-309243, 2]

That is why this file leads with all three H rows.

Method

  1. Import Hierarchical CSV File
  2. Set Hierarchical Dataset Options
  3. Organise the Hierarchy

Import Hierarchical CSV File

  1. Create a new integration — this article uses DOCSCSVREAD.
  2. On the Transform Setup tab, open the Readers group in the palette and drag a CSV Reader onto the design surface.
  3. Save the integration. A newly dropped node cannot be opened until it has been saved.
  4. Double-click the node to open its setup pane, and fill in the Source section.

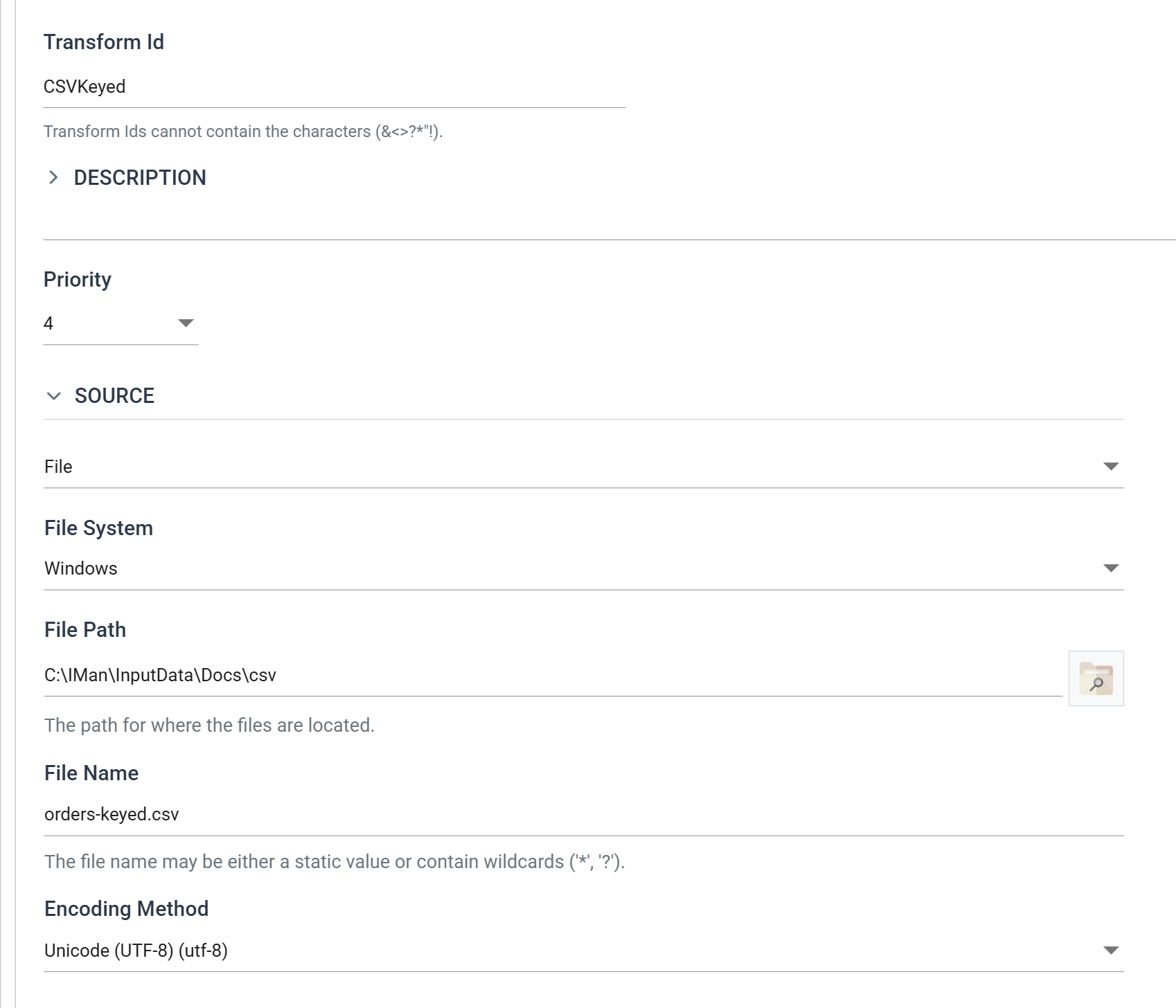

The CSV Reader Setup tab, Source section. Transform Id is CSVKeyed, Source is set to File, File System to Windows, File Path to C colon backslash IMan backslash InputData backslash Docs backslash csv, File Name to orders-keyed.csv and Encoding Method to Unicode UTF-8.

Field Value
Transform Id CSVKeyed Names the transform in the diagram and in error messages
Source File
File System Windows
File Path C:\IMan\InputData\Docs\csv
File Name orders-keyed.csv May be a static name or contain * or ?
Encoding Method Unicode (UTF-8)

Set Hierarchical Dataset Options

The Options section below it is where the file stops being a flat list of rows.

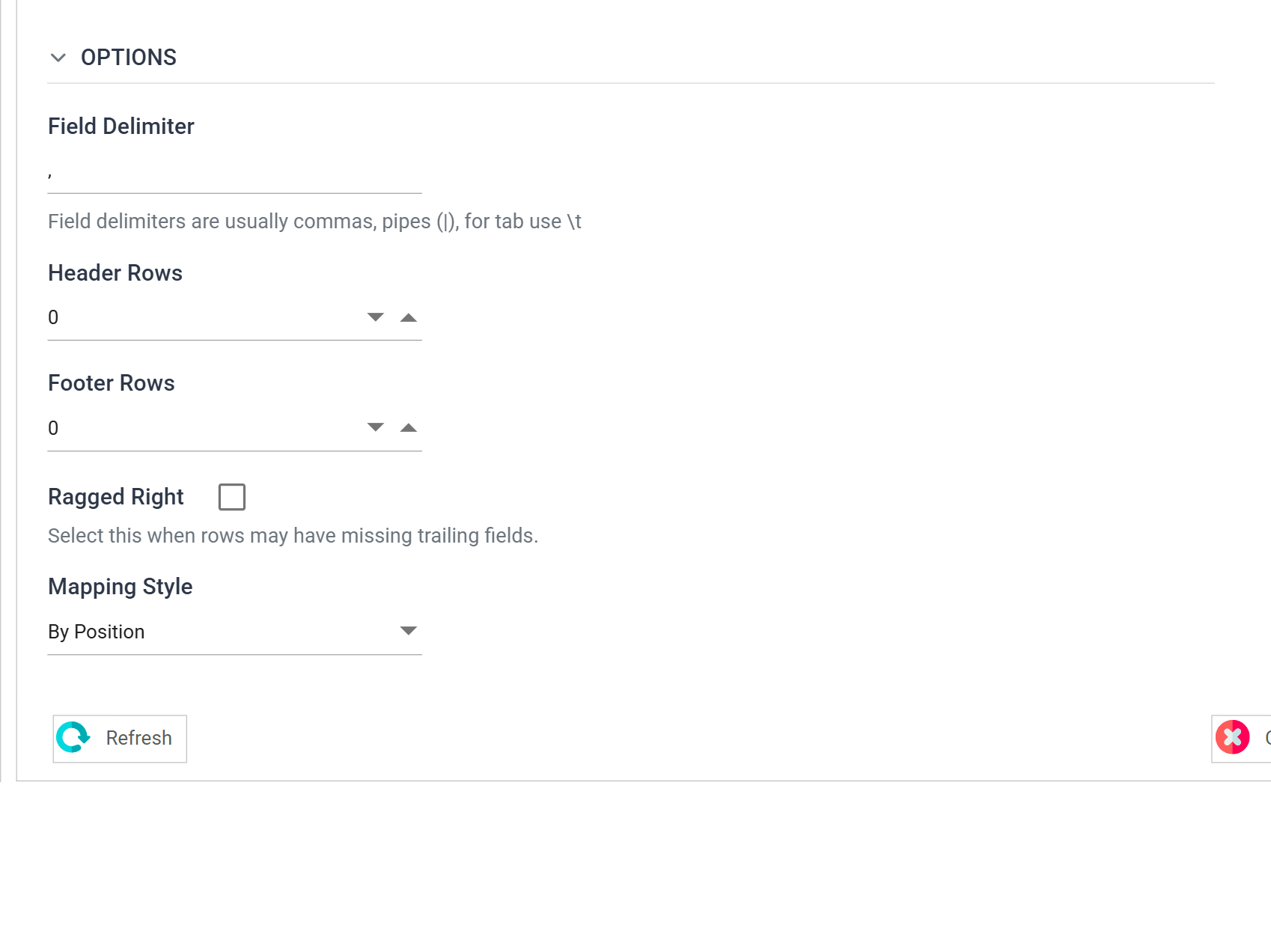

The CSV Reader Setup tab, Options section. Field Delimiter is a comma, Header Rows 0, Footer Rows 0, Ragged Right unticked, Mapping Style By Position, Hierarchy Style Keyed Fields and Record Type Field Field1.

Field Value
Field Delimiter ,
Header Rows 0 The file has no heading row — the record types disagree about their columns
Footer Rows 0
Ragged Right unticked
Mapping Style By Position Fields are Field1…FieldN. By Field Heading needs a heading row, which this file cannot have
Hierarchy Style Keyed Fields
Record Type Field Field1

Record Type Field is the whole hinge. It names the column whose value says what kind of row this is, and it only appears once Hierarchy Style is set to something other than (none).

Press Refresh Schema on the field grid's toolbar. IMan reads the file, finds the distinct values in Field1 and offers one transaction type per value for review.

Detection uses the file you point it at

Schema detection can only find the record types that are actually present. Point it at a file missing one and that type is simply never created, and IMan offers to delete any type it no longer finds.

Use a file that contains every record type you expect to handle.

The first row's record type becomes the root

Detection makes the record type of the first row in the file the root transaction, and every other type a child of it.

A file that opens on a D row therefore produces a tree with OrderLine at the root and Order hanging off it. Nothing warns you, and the root cannot be deleted afterwards — the transaction tree offers no ✕ on a root — so the only way out is to build the reader again from a new node.

This file leads with H rows deliberately.

Organise the Hierarchy

Move to the Field Mapping tab. The tree on the left holds the three transaction types detection found.

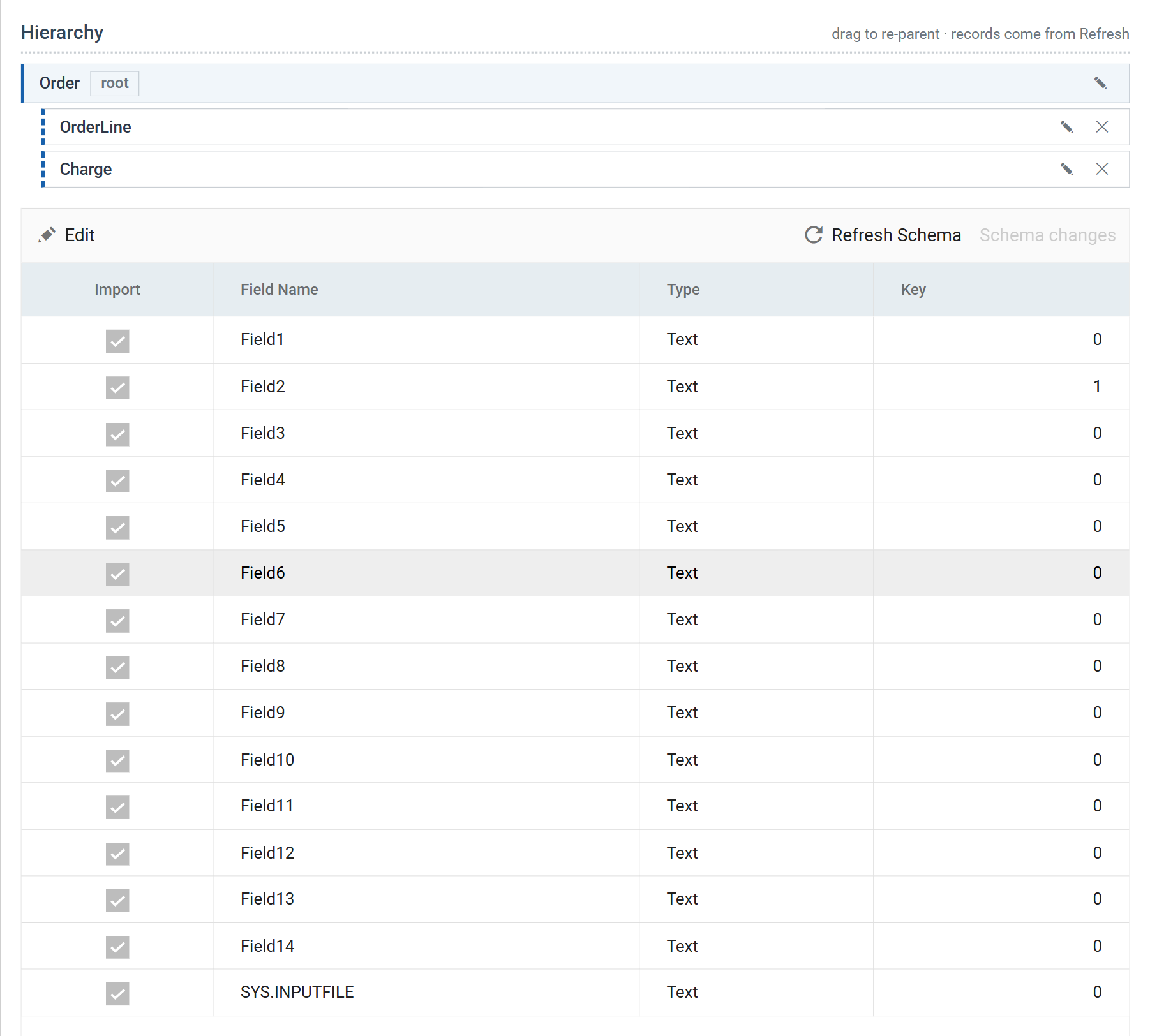

The Field Mapping tab. The Hierarchy strip shows Order as the root with OrderLine and Charge as its children, and the field grid below lists Field1 to Field14 and SYS.INPUTFILE under Import, Field Name, Type and Key, with Refresh Schema and a greyed Schema changes item on its toolbar.

Rename each type to something meaningful and arrange the parentage: Order at the root, with OrderLine and Charge beneath it.

Selecting a transaction scopes the grid

A Reader has no Current Transaction Id drop-down. Clicking a node in the tree is the only thing that decides whose fields the grid is showing.

The keys

Now set the Key column. It makes the whole thing work, and the rule is short:

A key value of 0 means "not a key". Otherwise the number is the field's position in the key, and a child carries its parent's key plus one more field of its own.

Select Order. Its key is the order id alone:

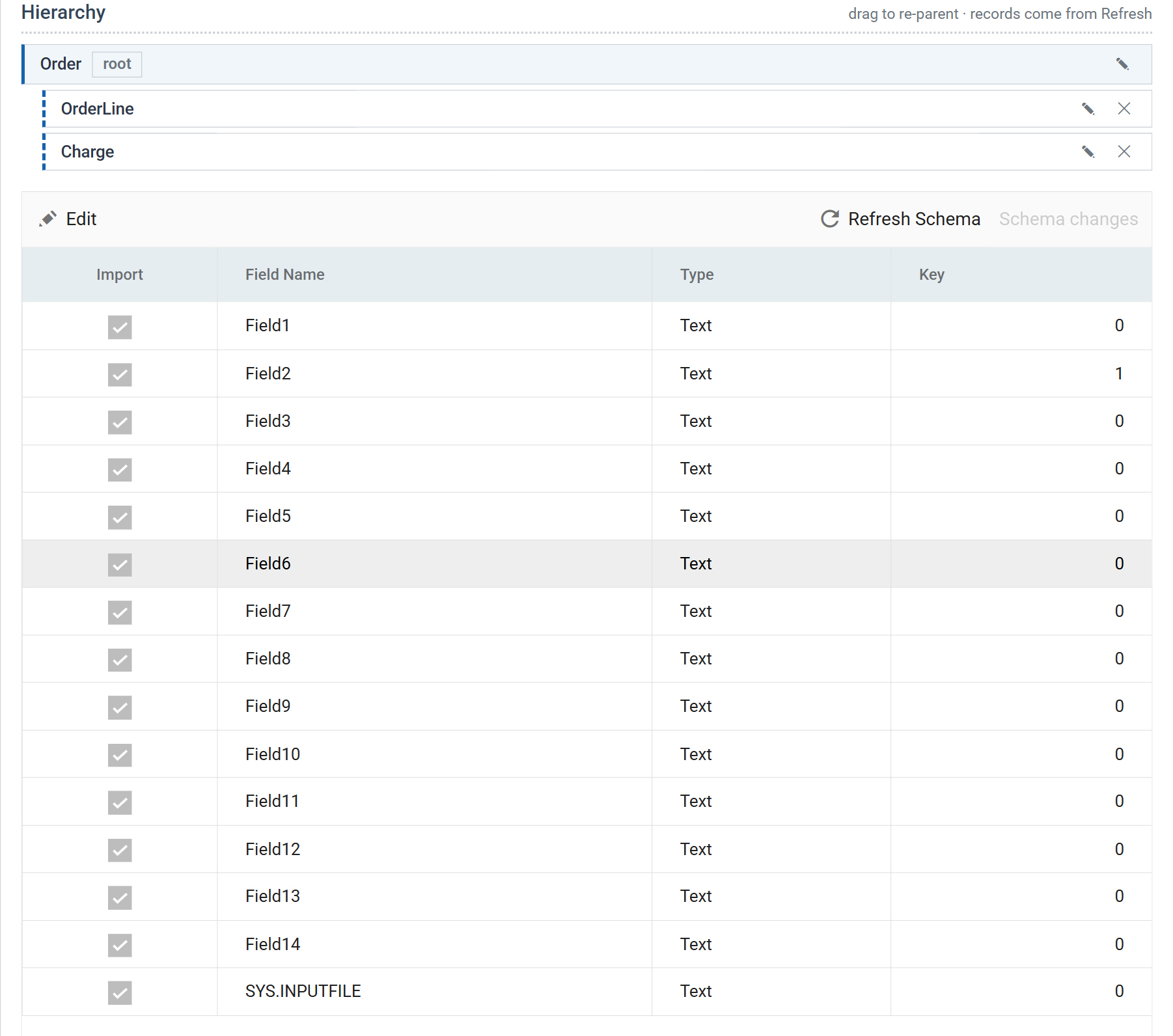

The Order transaction's field grid. Field2 has a Key of 1 and every other field, Field1 and Field3 through Field14 plus SYS.INPUTFILE, has a Key of 0.

Field Holds Key
Field1 record type, H 0
Field2 OrderId 1
Field3…Field14 order type, currency, customer, address, date, total 0

Select OrderLine. It keys on the order id and its own line number:

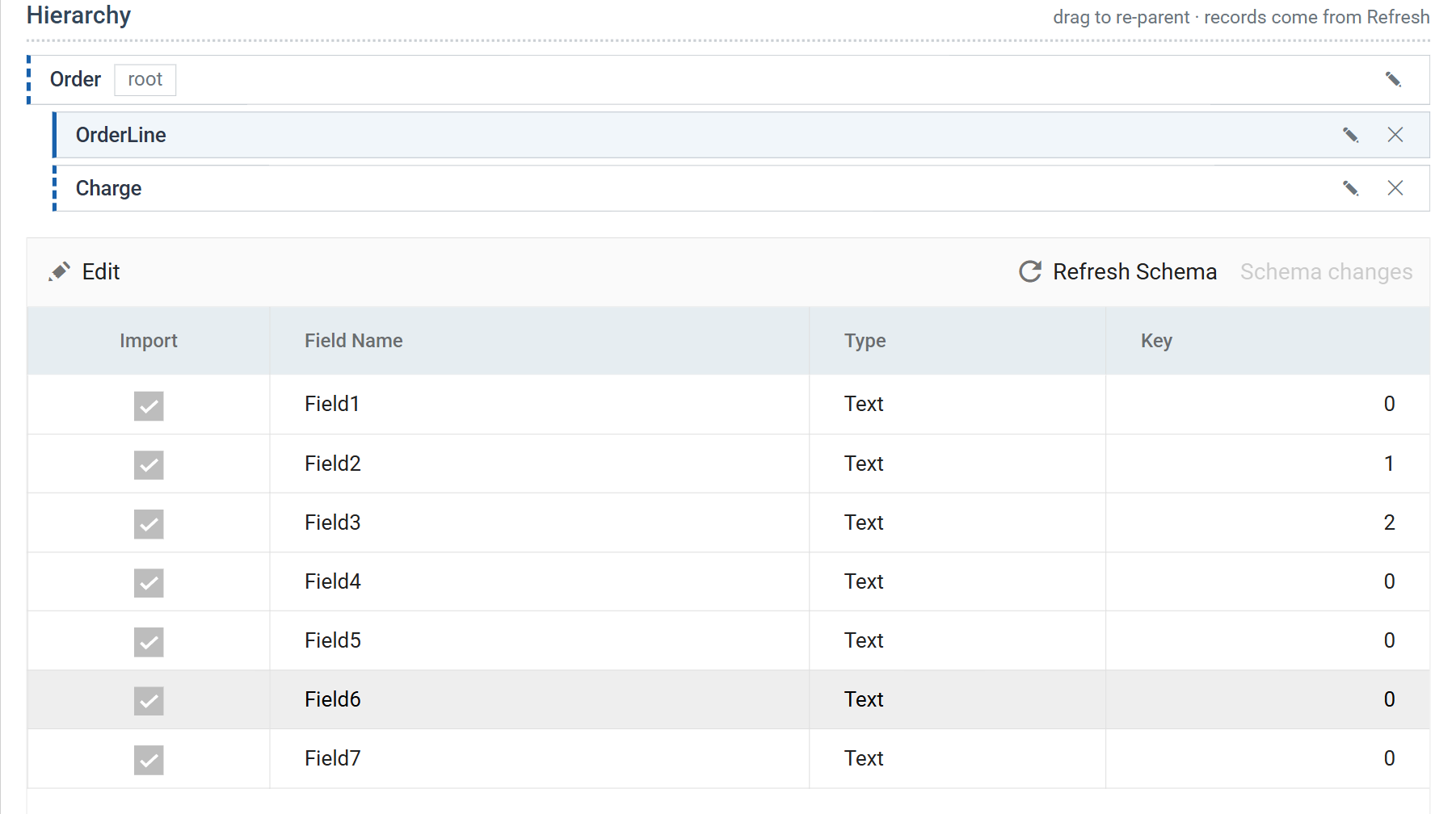

The OrderLine transaction's field grid. Field2 has a Key of 1, Field3 has a Key of 2, and Field1 and Field4 through Field7 have a Key of 0.

Field Holds Key
Field1 record type, D 0
Field2 OrderId — the parent's key 1
Field3 LineNo — this row's own key 2
Field4…Field7 qty, SKU, description, unit price 0

Select Charge, and do the same. Its own key is the charge type rather than a line number, but the shape is identical — the parent's key first, then one more:

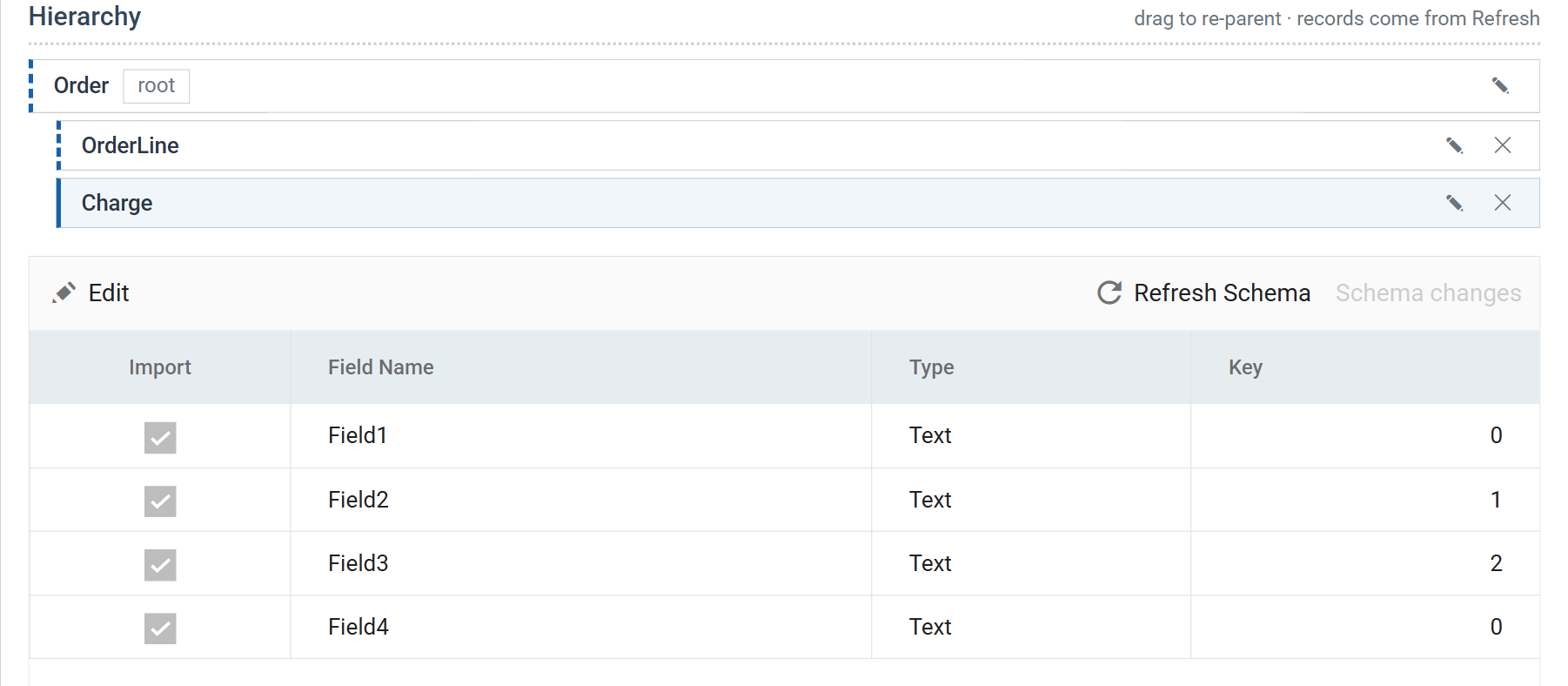

The Charge transaction's field grid. Field2 has a Key of 1, Field3 has a Key of 2, and Field1 and Field4 have a Key of 0.

Field Holds Key
Field1 record type, C 0
Field2 OrderId — the parent's key 1
Field3 ChargeType — this row's own key 2
Field4 Amount 0

See Key Fields for the underlying concept.

The keys must identify the row, not merely describe it

Charge keys on the charge type, because the charge type is what makes a charge unique within its order — FBRN-309244 has both an Assembly and a TwoManDelivery. Had two charges of the same type been possible on one order, the key would not have been enough and the file would have needed a sequence column.

Check it

Press Refresh and expand a row in the preview grid.

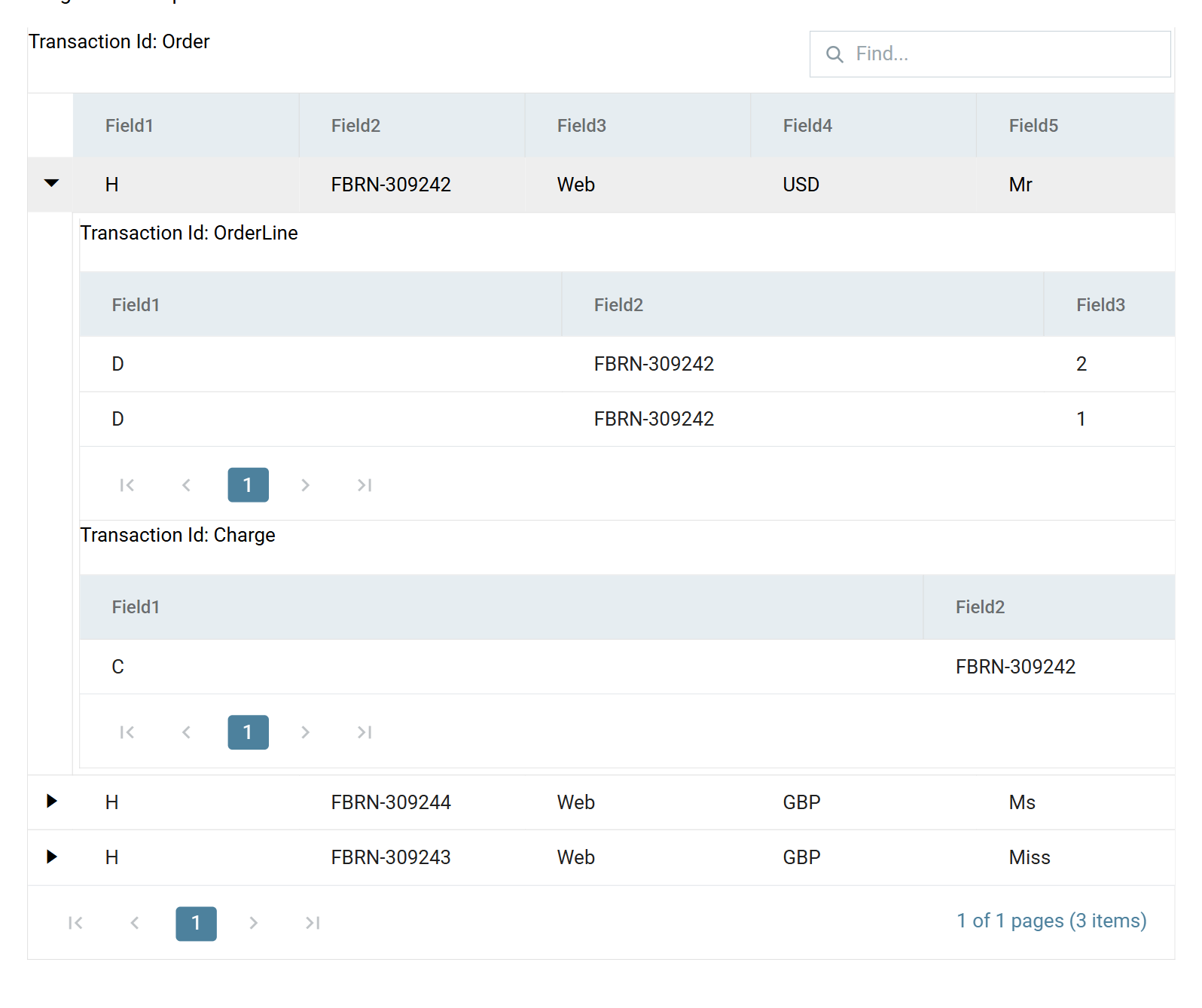

The preview grid showing three Order rows, each expandable to reveal its own OrderLine and Charge children, with FBRN-309242 expanded to show two lines and one charge.

Three orders, each carrying its own lines and charges, reassembled out of a file in which none of them were adjacent. If a row's children are missing or attached to the wrong parent, check the key columns.

Close the setup pane and press Save on the design screen.
