Reading XML Documents

This article builds an Xml Reader over a document that carries two namespaces and puts some of its values in attributes — the two things that make XML different from every other file a Reader handles.

Introduction to XML

  1. Xml Data
  2. IMan Xml Parsing

Method

  1. Setup an XML Reader
  2. Create Parent Transaction Type
  3. Create Children Transaction Types
  4. Referencing the value of a repeating node

Xml Data

Xml is a self-describing, hierarchical data format. It is straightforward to work with because:

  • Xml parsers validate the syntax on load, and further validation can be enforced through an Xml schema;
  • fields and record types can be added without breaking an existing setup.

orders.xml holds three orders. Trimmed to one:

<?xml version="1.0" encoding="utf-8"?>
<OrderExport xmlns="http://schemas.realisable.co.uk/sample/orders/v1"
             xmlns:cust="http://schemas.realisable.co.uk/sample/customer/v1"
             exportedOn="2016-03-12T09:14:00Z"
             source="Web Storefront">
  <Order id="FBRN-309242" type="Web" currency="USD">
    <OrderDate>2016-03-11</OrderDate>
    <SalesTotal>282.00</SalesTotal>
    <cust:Customer>
      <cust:Title>Mr</cust:Title>
      <cust:FirstName>Ronald</cust:FirstName>
      <cust:LastName>English</cust:LastName>
    </cust:Customer>
    <ShipTo>
      <City>Fairbanks</City>
      <Country>USA</Country>
    </ShipTo>
    <Lines>
      <Line no="1">
        <Qty>5</Qty>
        <SkuCode>A1-103/0</SkuCode>
        <UnitPrice>20.00</UnitPrice>
      </Line>
    </Lines>
    <Charges>
      <Charge type="Delivery">
        <Amount>29.00</Amount>
      </Charge>
    </Charges>
  </Order>
</OrderExport>

Two things in there shape everything below:

  • Two namespaces. A default one on OrderExport, which every unprefixed element inherits, and cust: for the customer.
  • Attributes. The order id, type and currency, the line number and the charge type are attributes rather than elements.

IMan Xml Parsing

XML is parsed into three sections:

  1. Entry Point
    1. The XPath identifying the repeating element the top transaction is read from.
  2. Top Record Type
    1. The top repeating transaction type, read from the entry point itself.
  3. Children Transaction Types
    1. The nodes denoting child records. An unlimited number of children in virtually unlimited nesting (max. 64 child transactions).

Setup an XML Reader

  1. Create a new integration — this article uses DOCSXMLREAD.
  2. On the Transform Setup tab, open the Readers group in the palette and drag an Xml Reader onto the design surface.
  3. Save the integration. A newly dropped node cannot be opened until it has been saved.
  4. Double-click the node to open its setup pane.

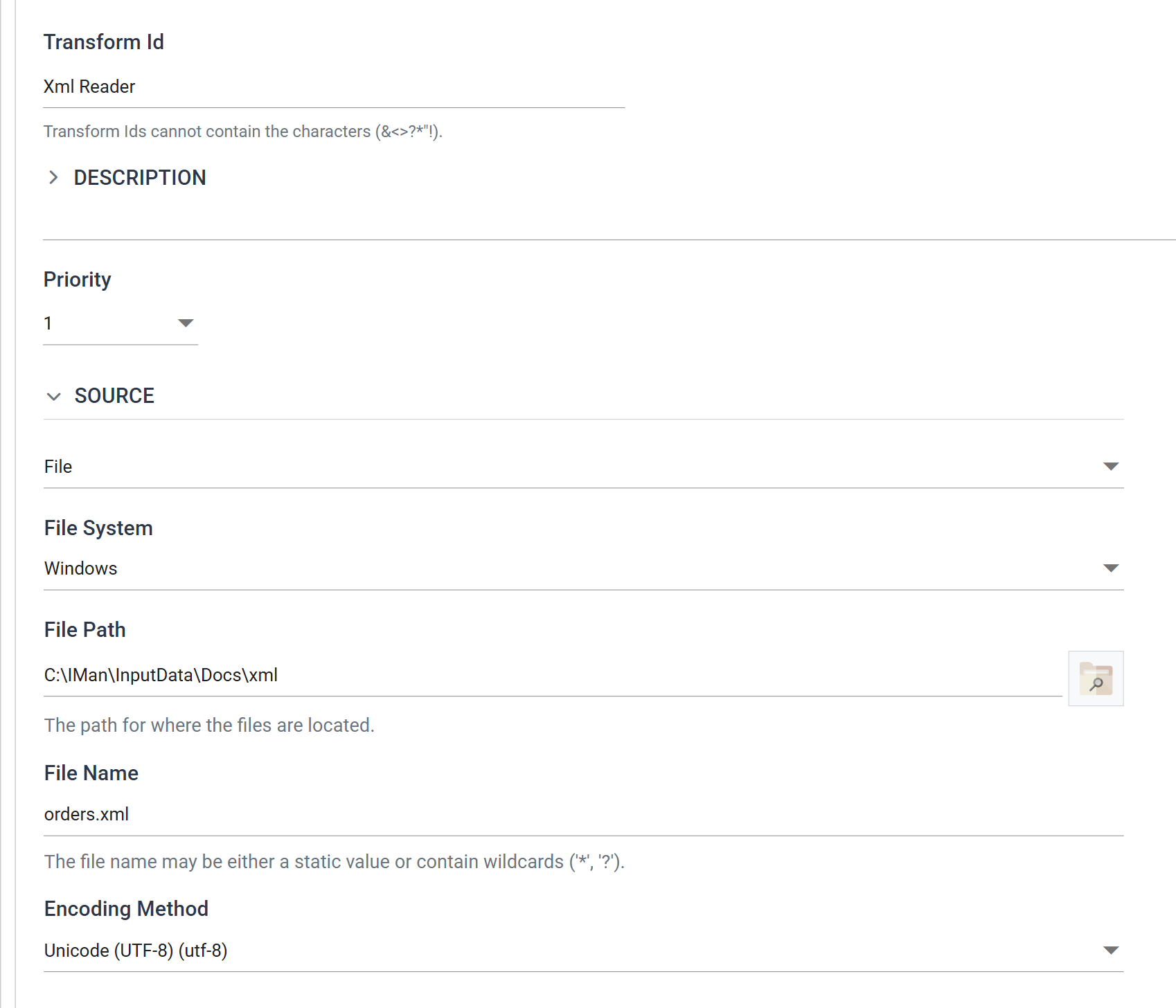

The Xml Reader Setup tab, Source section. Transform Id is Xml Reader, Source is set to File, File System to Windows, File Path to C colon backslash IMan backslash InputData backslash Docs backslash xml, File Name to orders.xml and Encoding Method to Unicode UTF-8.

Field Value
Transform Id Xml Reader Names the transform in the diagram and in error messages
Source File Or http(s) Url — see the Webservices cookbook
File System Windows
File Path C:\IMan\InputData\Docs\xml
File Name orders.xml
Encoding Method Unicode (UTF-8) Xml files are usually UTF-8; most other text files are ASCII

Namespaces, and the prefix you have to invent

Below the source is Xml Namespace Declaration. Every namespace the document uses is declared here, one per line, in the form xmlns:prefix="<namespace>".

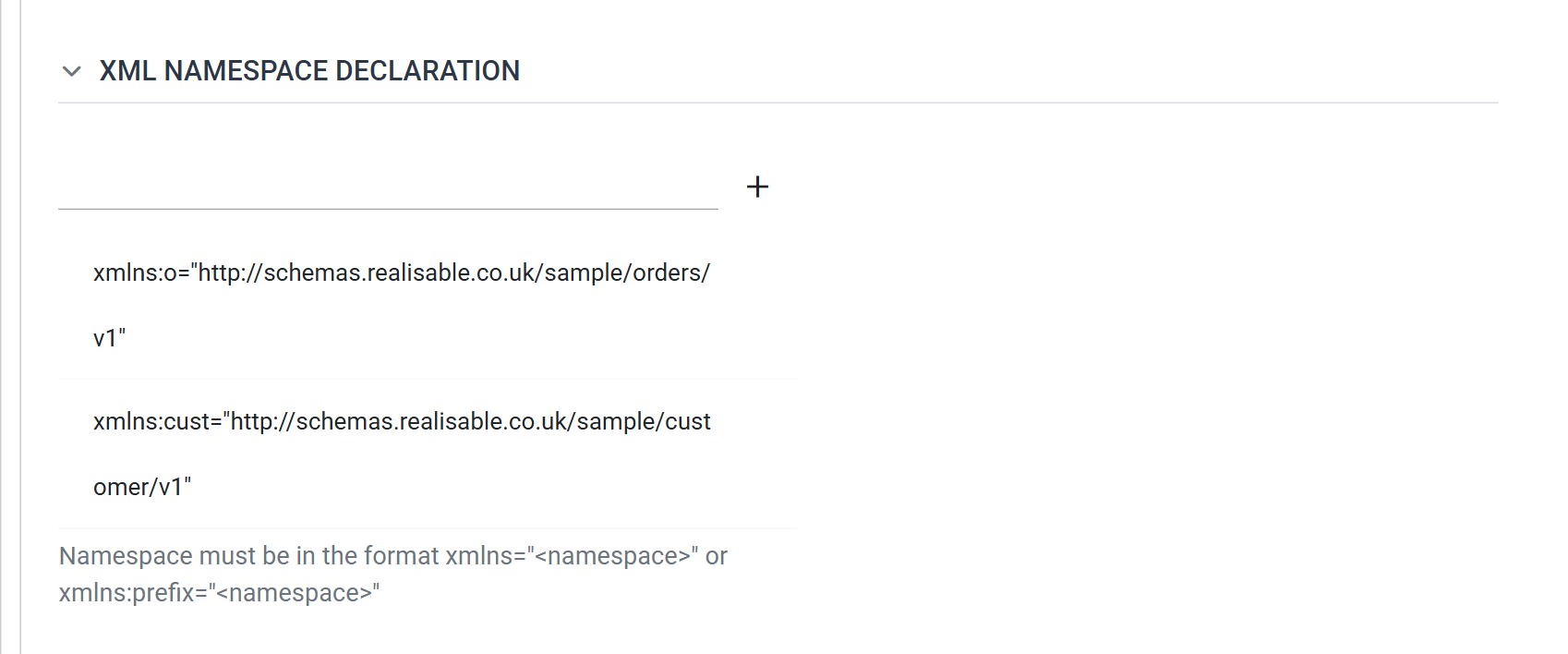

The Xml Namespace Declaration list holding two entries: xmlns colon o equals the orders namespace URI, and xmlns colon cust equals the customer namespace URI.

xmlns:o="http://schemas.realisable.co.uk/sample/orders/v1"
xmlns:cust="http://schemas.realisable.co.uk/sample/customer/v1"

The second line is the obvious one — the document itself says xmlns:cust=…, so it is copied across as-is.

The first line is the one that catches people out. In the document that namespace is the default — it is declared as plain xmlns= and its elements carry no prefix at all. But XPath 1.0 has no notion of a default namespace: an unprefixed name in an XPath means no namespace, which matches nothing in a document like this.

You therefore have to invent a prefix for it. o is chosen here; it could be anything. It exists only inside IMan and appears nowhere in the document.

The commonest XML reader fault

An XPath of /OrderExport/Order against this document selects nothing, and it fails silently — no error, just no data. /o:OrderExport/o:Order works.

If a Refresh returns no rows and the paths look right, this is almost always why.

Press the green tick to save.

Create Parent Transaction Type

Move to the Field Mapping tab and press Refresh Schema on the field grid's toolbar. IMan reads the document, works out its structure, and opens the review on what it found. OK commits it.

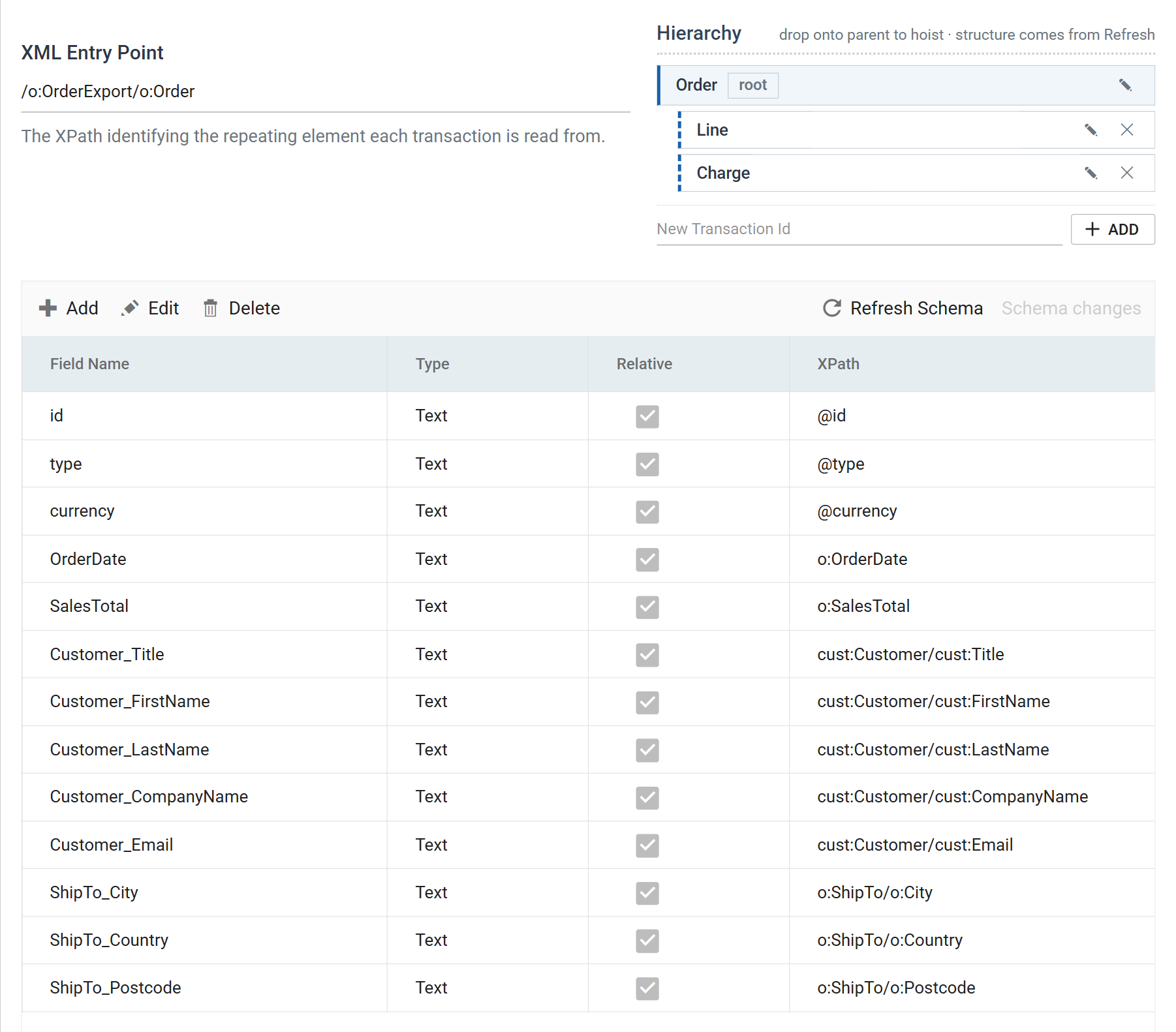

The Field Mapping tab after applying the detected schema. XML Entry Point holds slash o colon OrderExport slash o colon Order, and the hierarchy tree shows Order marked root with Line and Charge as its children.

Detection fills in the XML Entry Point itself:

/o:OrderExport/o:Order

The entry point is the repeating element, not the container

It points at Order, not at the OrderExport wrapper around it. The top transaction is read from the entry point, so the root transaction has no Transaction XPath of its own — the control is not even shown for it. Only child transactions have one.

Earlier releases of IMan asked for the container here and gave the top record a relative path beneath it. If you are maintaining a reader built that way, this is the difference.

Rename the root transaction to Order, then select it to see its fields.

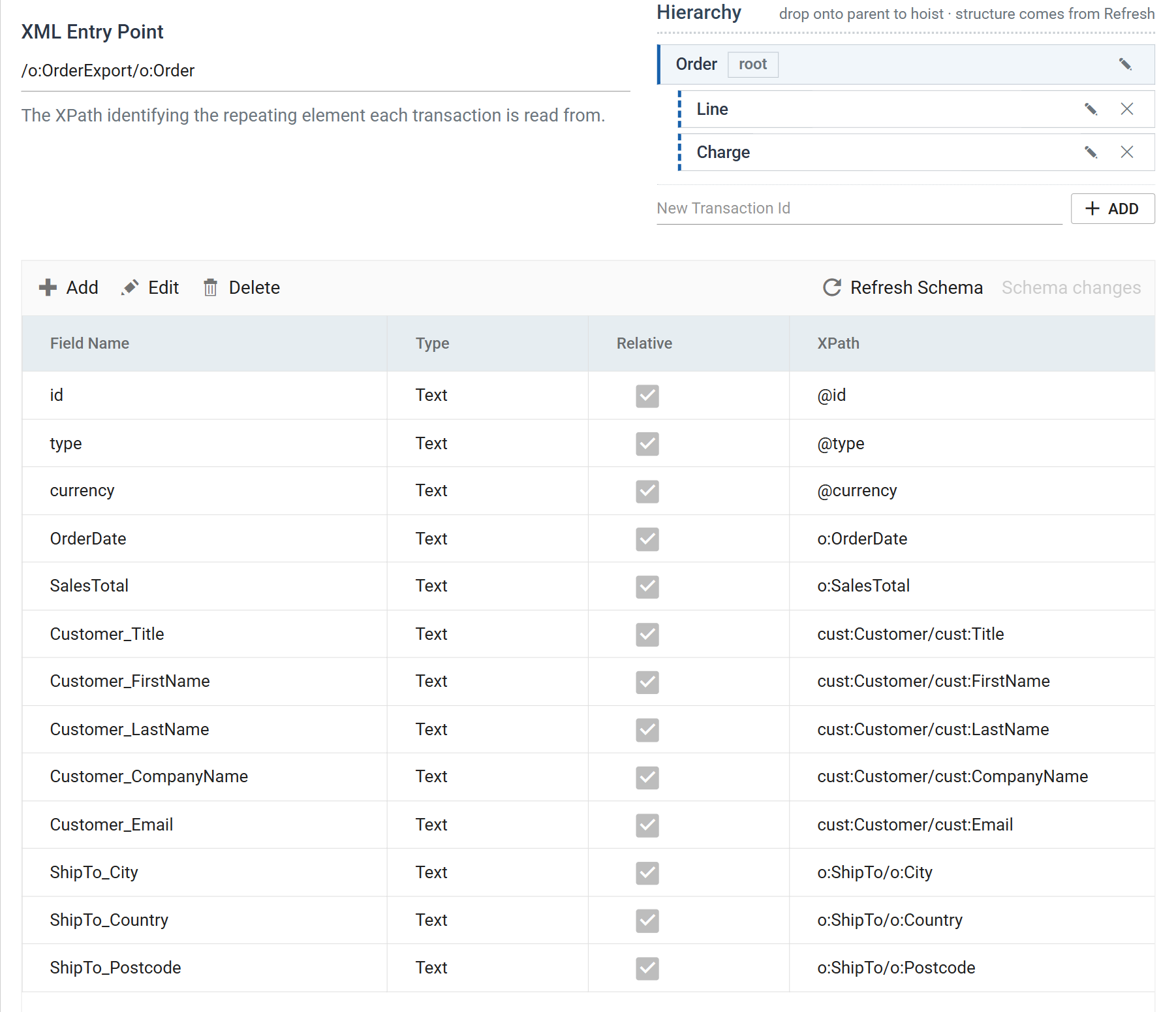

The Order transaction's field grid, with columns Field Name, Type, Relative and XPath. Rows include id mapped to at-sign id, type to at-sign type, currency to at-sign currency, OrderDate to o colon OrderDate, and Customer underscore Title to cust colon Customer slash cust colon Title.

Each field carries an XPath relative to its transaction's node:

Field XPath
id @id An attribute — @ is XPath for "attribute of this node"
type @type
currency @currency
OrderDate o:OrderDate A child element, in the default namespace, so prefixed o:
SalesTotal o:SalesTotal
Customer_Title cust:Customer/cust:Title Two levels down, and in the other namespace
Customer_FirstName cust:Customer/cust:FirstName
ShipTo_City o:ShipTo/o:City A nested element in the default namespace
ShipTo_Country o:ShipTo/o:Country

Two things worth drawing out:

  • An attribute is just an XPath step. There is no separate "read the attribute" setting — @id is a path like any other.
  • A nested element does not need its own transaction. cust:Customer and o:ShipTo each occur once per order, so they are flattened into the order's own fields with a two-step path. Give a node its own transaction only when it repeats.

Check the field types

Detection reads structure, not meaning, and types everything Text. Set SalesTotal, UnitPrice and Amount to Decimal, Qty to Integer and OrderDate to Date/Time if anything downstream is going to do arithmetic or date comparison on them.

Create Children Transaction Types

Lines/Line and Charges/Charge do repeat, so each gets its own transaction. Select one in the tree and its Transaction XPath appears.

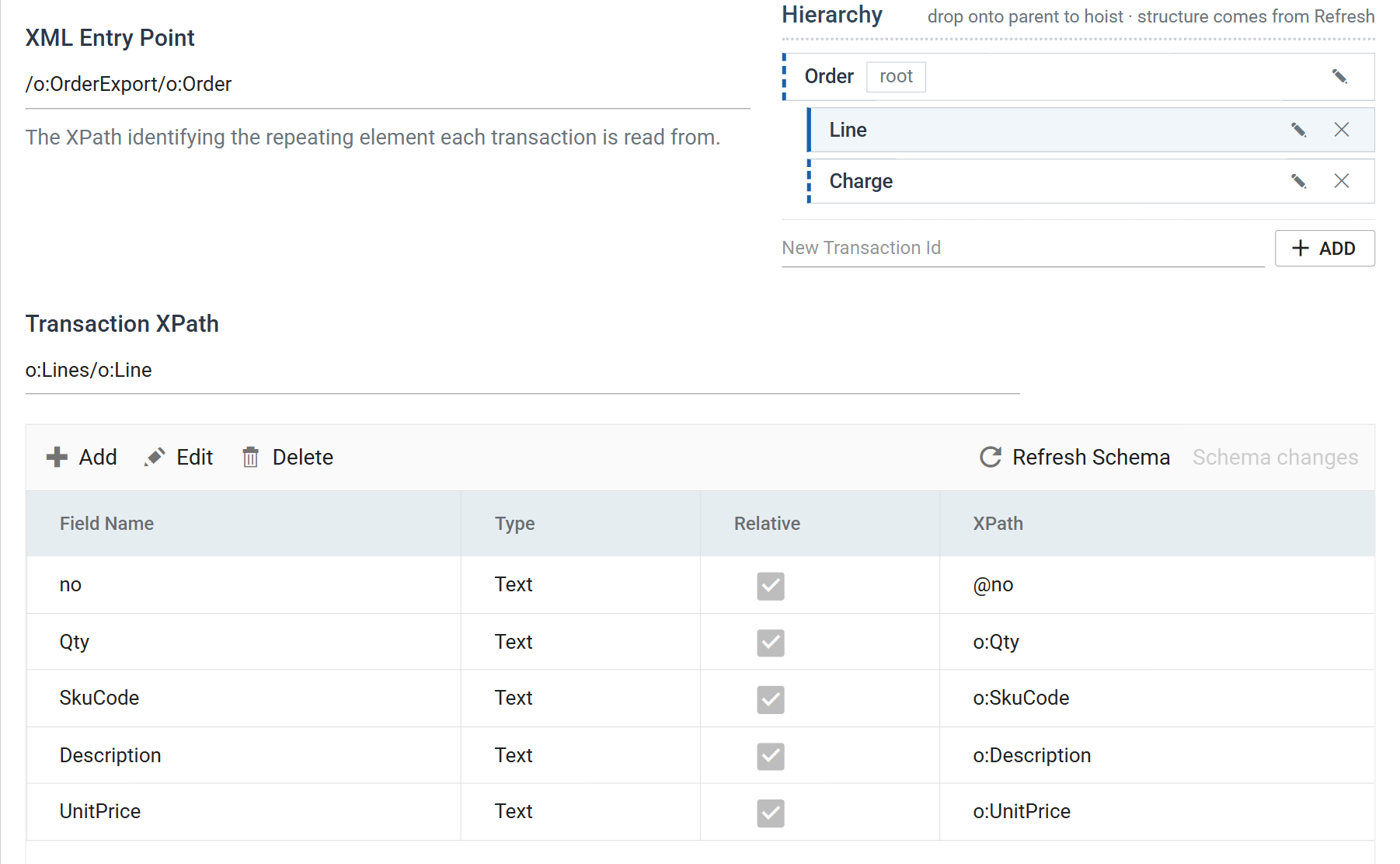

The Line transaction selected. Transaction XPath holds o colon Lines slash o colon Line, and the field grid below lists no mapped to at-sign no, Qty to o colon Qty, SkuCode to o colon SkuCode, Description to o colon Description and UnitPrice to o colon UnitPrice.

Transaction Transaction XPath Fields
Line o:Lines/o:Line @no, o:Qty, o:SkuCode, o:Description, o:UnitPrice
Charge o:Charges/o:Charge @type, o:Amount

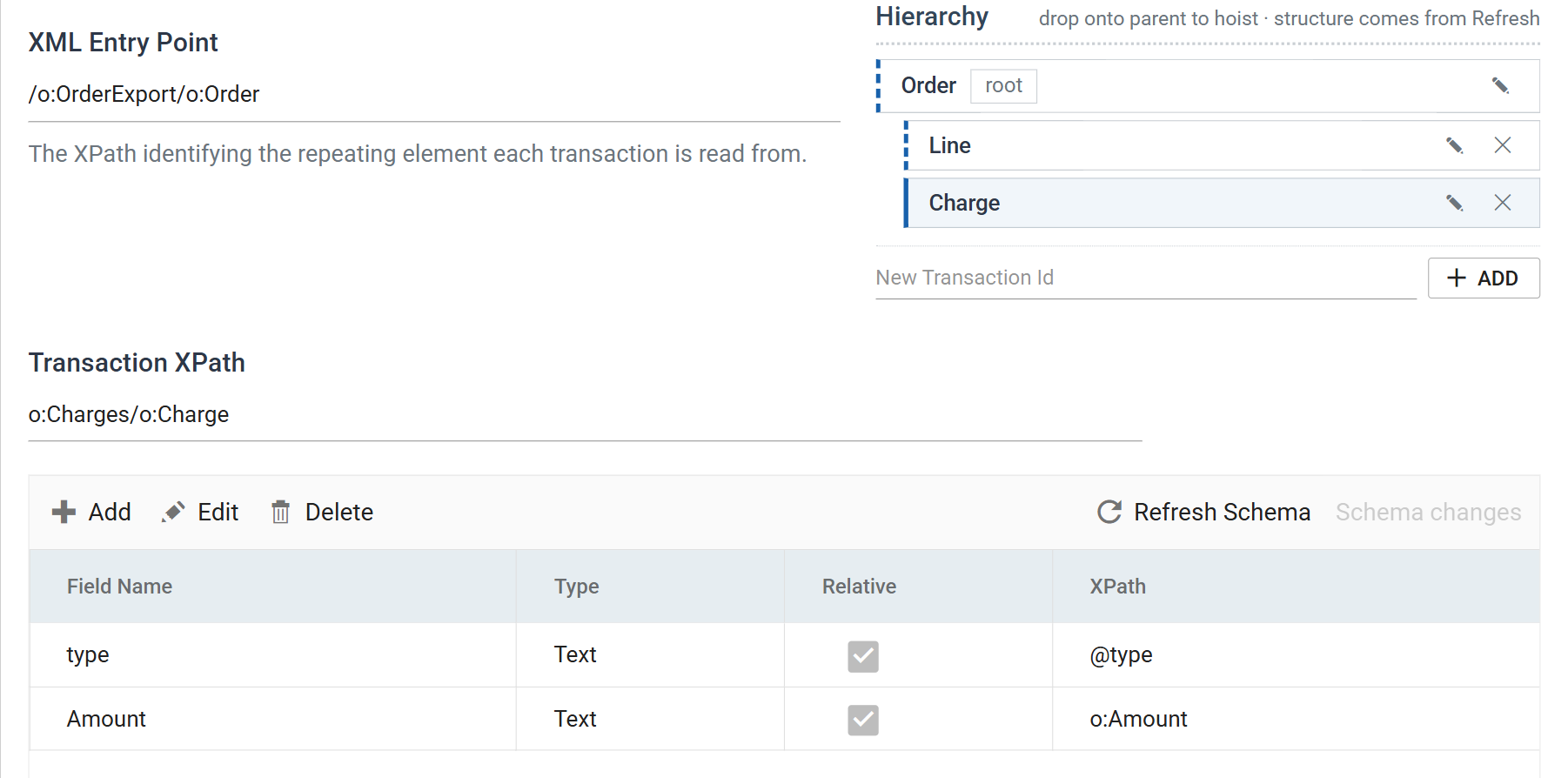

The Charge transaction selected. Transaction XPath holds o colon Charges slash o colon Charge, and the field grid lists type mapped to at-sign type and Amount to o colon Amount.

The transaction XPath is relative to the parent, and it includes the wrapper. o:Lines/o:Line walks through the Lines container to the repeating Line inside it. The container gets no transaction of its own because it does not repeat — it just has to be walked through.

Press Save, then Refresh.

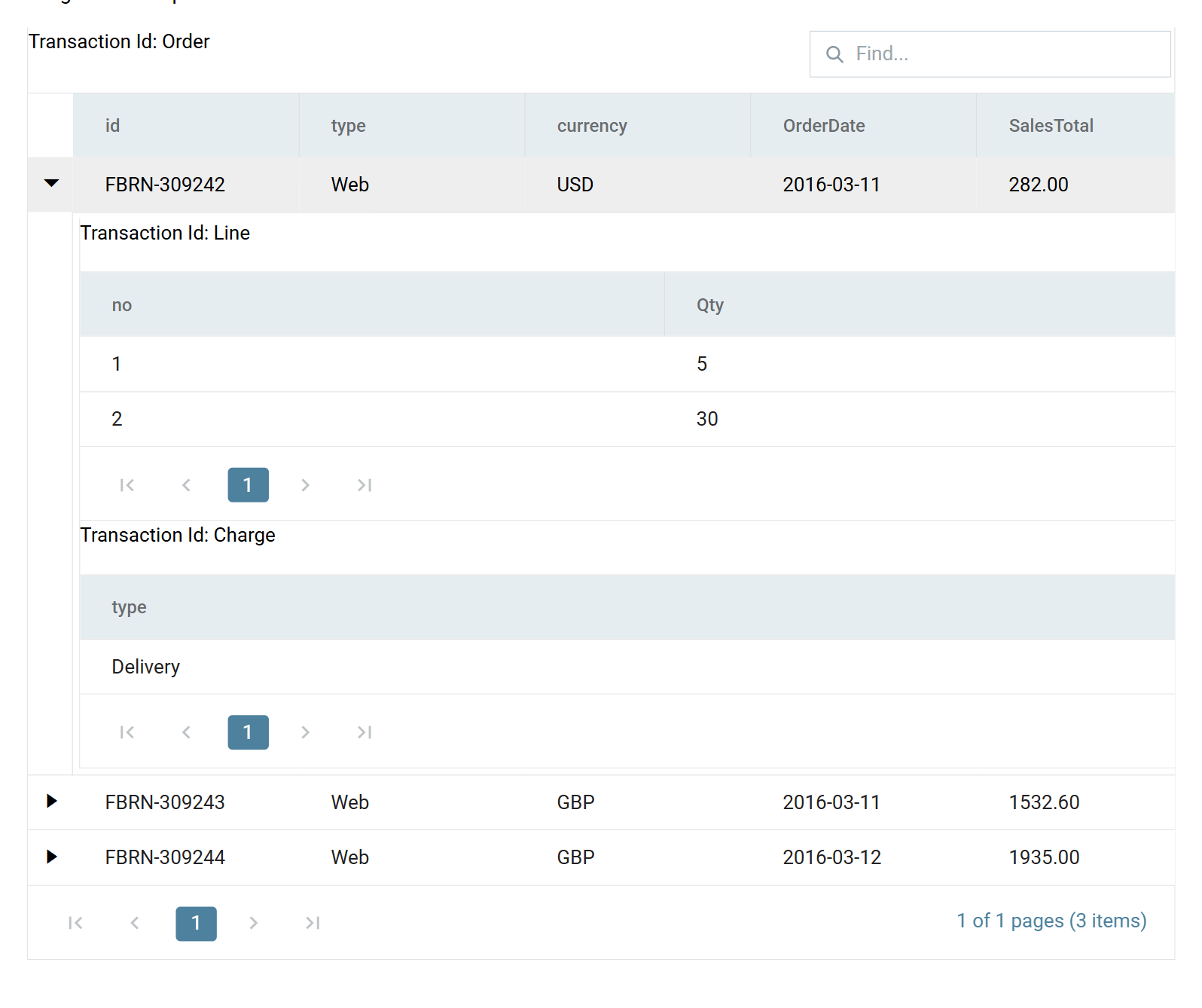

The preview grid showing three Order rows, with FBRN-309242 expanded to reveal its two Line children and one Charge child.

Close the setup pane and press Save on the design screen.

Referencing the value of a repeating node

Everything above reads values out of nodes that are children of the repeating node. This section covers the case where the value is held in the repeating node itself.

Scenario

We need to obtain both of the values contained in the ReferenceNumber nodes. That is, the values are enclosed in the node itself.

This shape differs from the one above

This differs from the setup above, where the values being queried are nested within nodes that are children to the repeating node.

An Xml document fragment showing a MercuryGate root, a MasterBillOfLading node, and within it a ReferenceNumbers node containing two ReferenceNumber nodes whose values are held directly in the nodes themselves.

Solution

Assuming a parent transaction type whose Transaction XPath is MasterBillOfLading and an entry point of MercuryGate, both marked above.

Transaction XPath

Plan/Events/Event[@type='Pickup']/Shipments/ReferenceNumbers/ReferenceNumber

The repeating node is part of the XPath

The ReferenceNumber node itself is included in the XPath, because ReferenceNumber is the repeating node. See the image above.

Field XPath

The field XPath is a single dot, ., which is XPath's shorthand for the current node.

The Xml Reader field mapping for the repeating node case, showing a Transaction XPath ending in ReferenceNumber and a single field whose XPath is a dot.

Stop the Transaction XPath short and you read one value

If the Transaction XPath were specified only as far as the ReferenceNumbers node and the Field XPath were ReferenceNumber, you would pick up only the first value, because there is a single ReferenceNumbers node.

Verified against IMan 6.1, September 2026. The two images in the final section are from an earlier release and a customer document that is not reproducible here; the technique they show is unchanged.
