IMan v6.0 New Features and Improvements
IMan Version 6 marks a big new chapter in Realisable’s life. Built on extensive user feedback and inspired by the tools developers rely on every day, this release delivers a more intuitive, responsive, and powerful experience.
V6 sits on a new architecture, the latest release of .net core, a modernised interface with smarter feedback mechanisms, significant backend performance gains, and an array of new functionality V6 not only streamlines the way integrations are built but also lays the foundation for our upcoming cloud-native solution. Whether you’re configuring connections, scheduling jobs, or just configuring lookups, IMan V6 empowers you to integrate faster, and with more confidence.
Introduction & Major Highlights
Modernised User Interface
New user interfaces across the entire product, based on Microsoft’s Blazor UI platform. The Designer now loads transforms now in tabs vs. popups. The Setup and Schedule screens have all been re-implemented. Each Setup UI now gone through radical improvement with better validation, ability to view connection traces and visualisations of the various setups.
Converting the transform setup screens are the next step.
Preview Screen
A trace tab has been added to the Preview, enabling users to see the detailed requests and the corresponding responses.
Audit Log Query
A new screen allows you to query historical logs.
New Tiered Lookup
Tiered lookups allow you to define cascading lists of data which can be queried through an accompanying TieredLookup function. Tiered Lookups can have differing rules attached to any one lookup. For example shipping rules can be maintained where rules are based on differing combinations of criteria i.e. weight, supplier, quantity, product type.
Authentication
New OpenIDDict compliant authentication and authorisation.
⚡ Why It Matters
Version 6 isn’t just a facelift—it’s a foundation for Realisable’s cloud-native future. Faster runtimes, smarter design configuration and debugging, and modern security mean integration designers can build, test, and deploy with confidence and speed.
Designer Changes

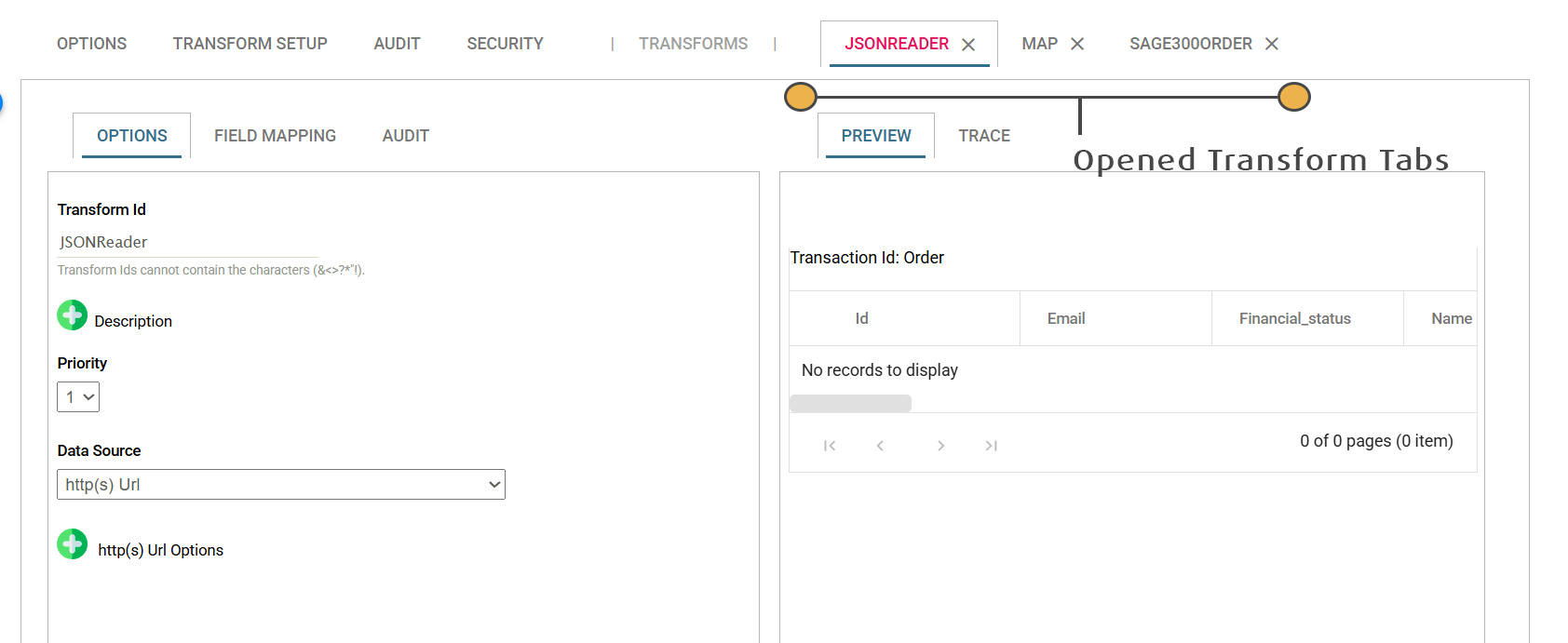

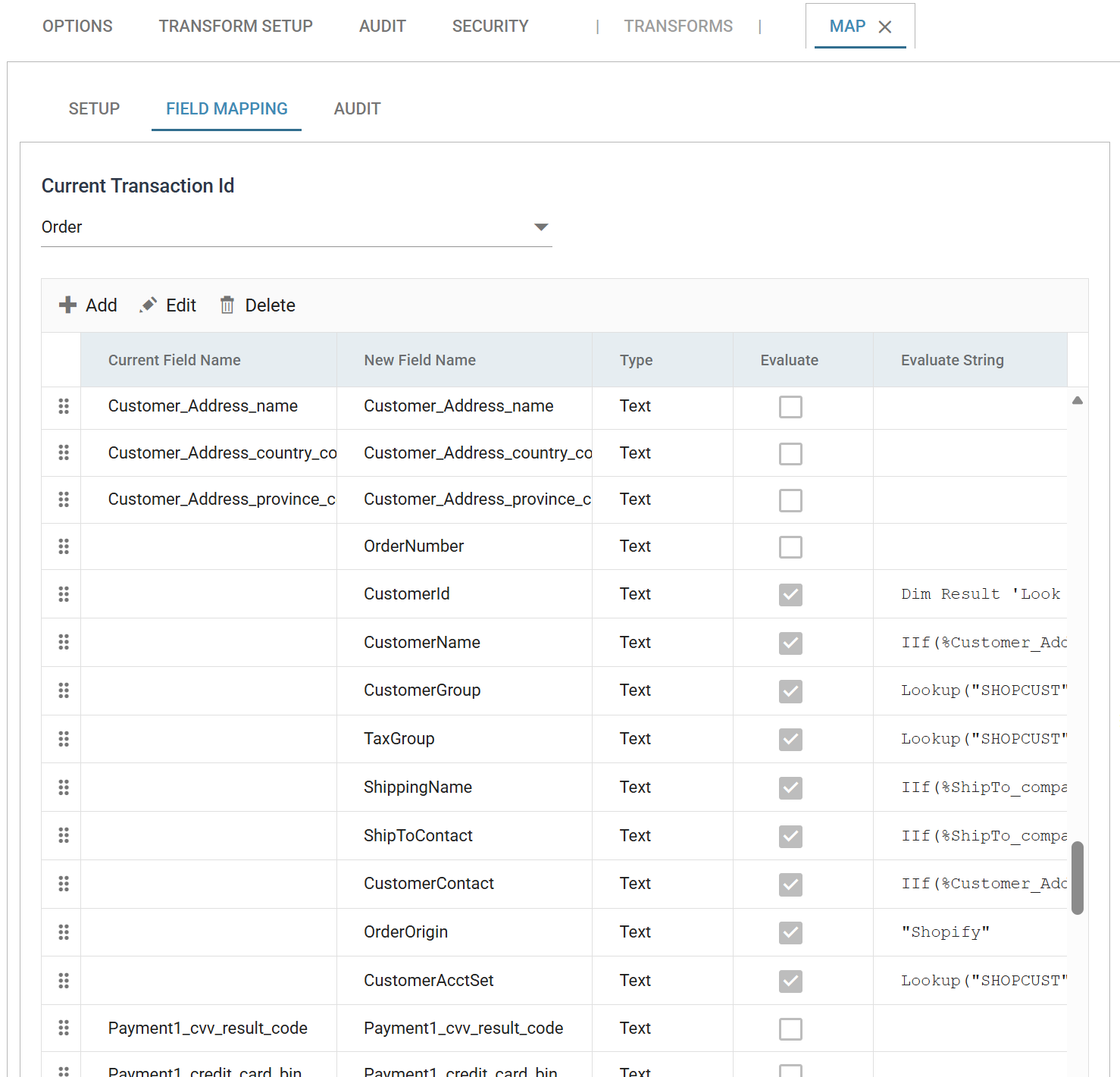

IMan is now a single page application! Transforms now open in separate tabs on the primary screen vs. as pop-ups.

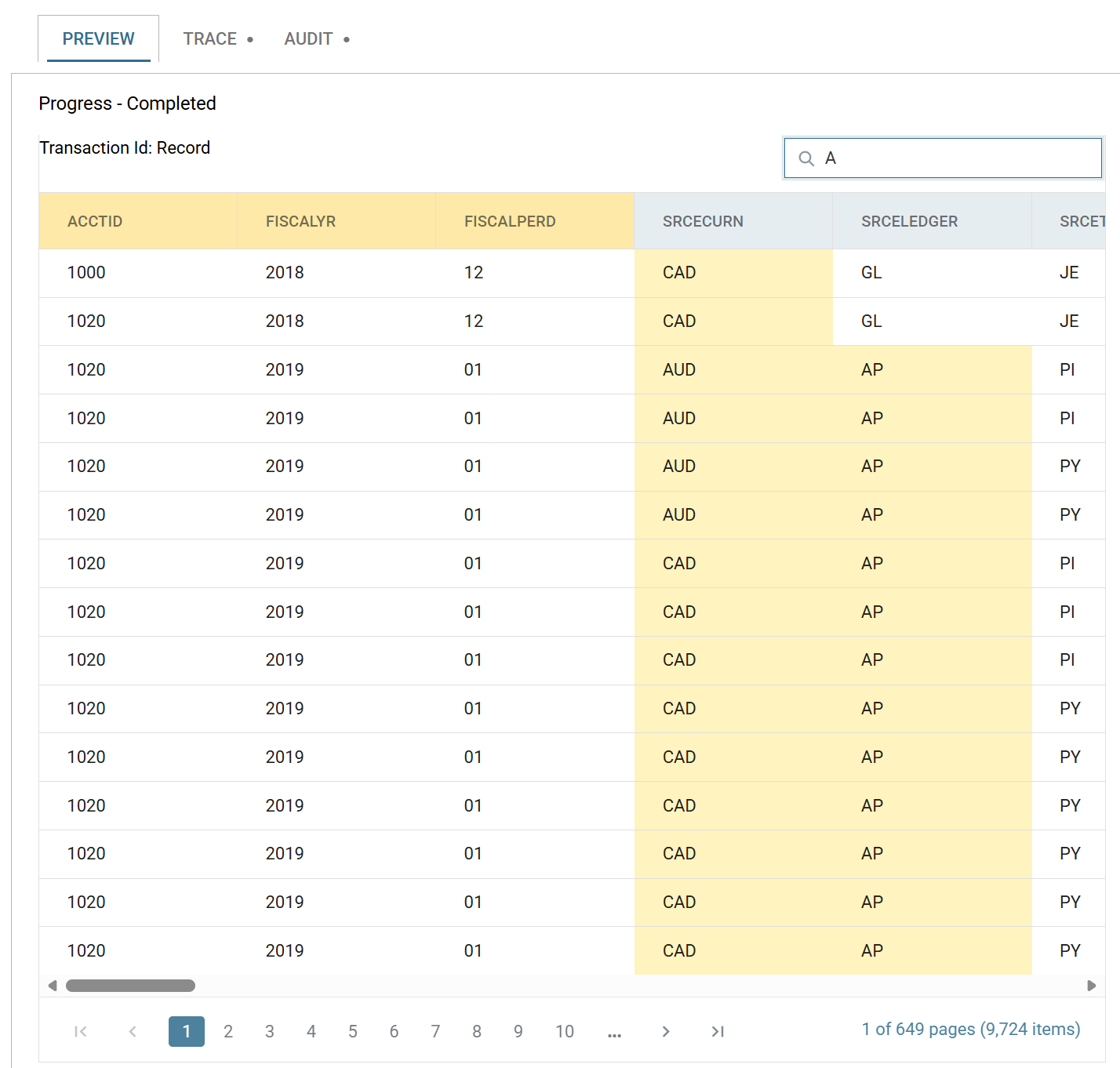

Preview Trace

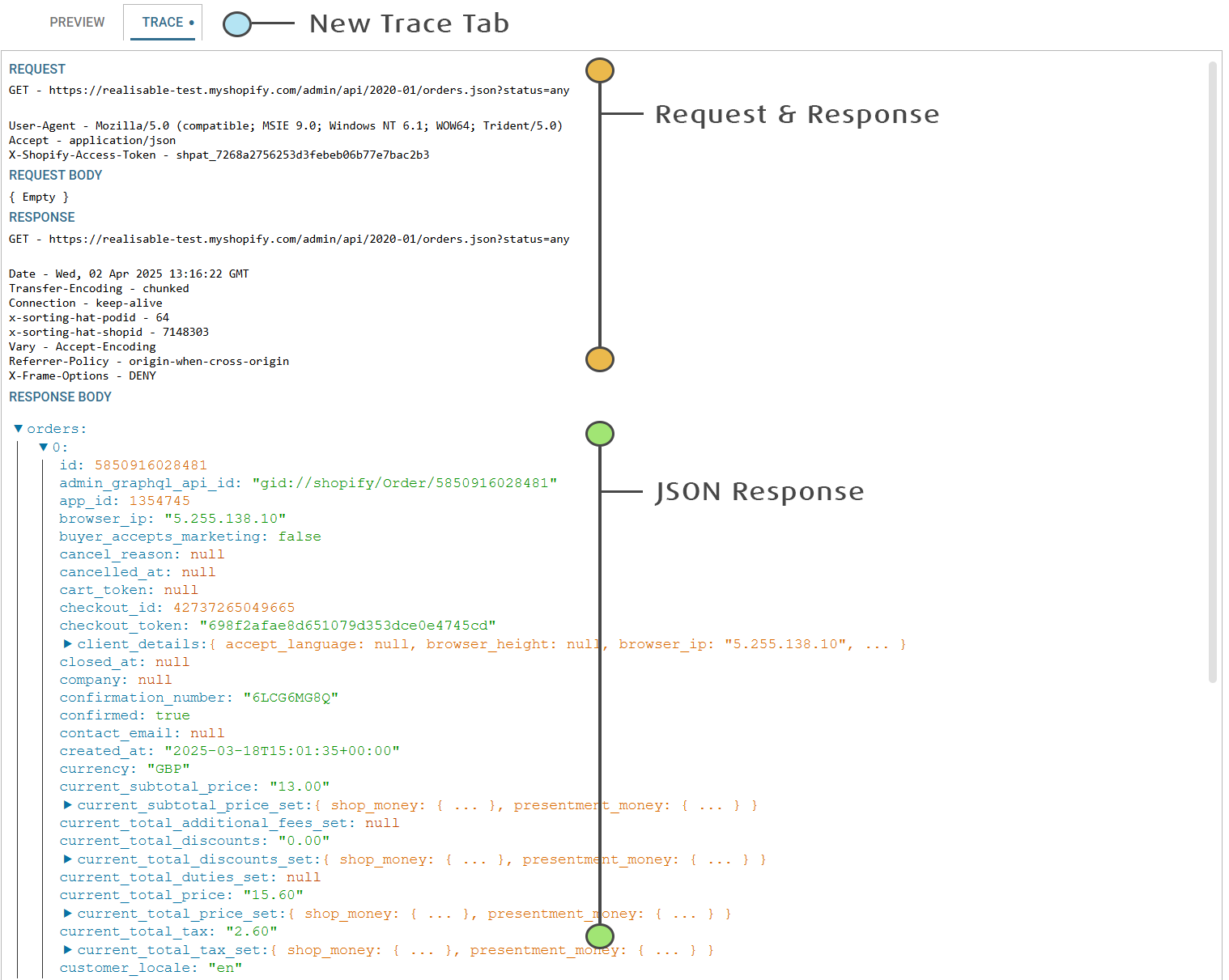

A new trace tab displays debug and trace data from the resource being consumed, the data being written or the transform being executed.
For example, web requests will display the request and responses being made to the webservice. Where possible, the trace will format responses into an easily navigable form i.e. JSON and Xml type data adds ability to expand collapse each of their nodes.
Preview area is much more performant with results and traces being streamed, as soon as they are generated.
Better Navigation and Easier Workflow

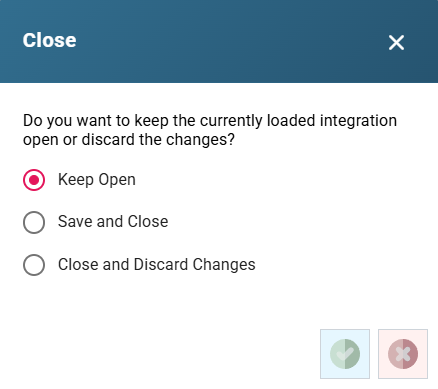

The designer adds the ability to both retain autosaved changes without having to either commit or discard them, in conjunction with keeping the integration open when moving to the setup screens.
Audit Log Query

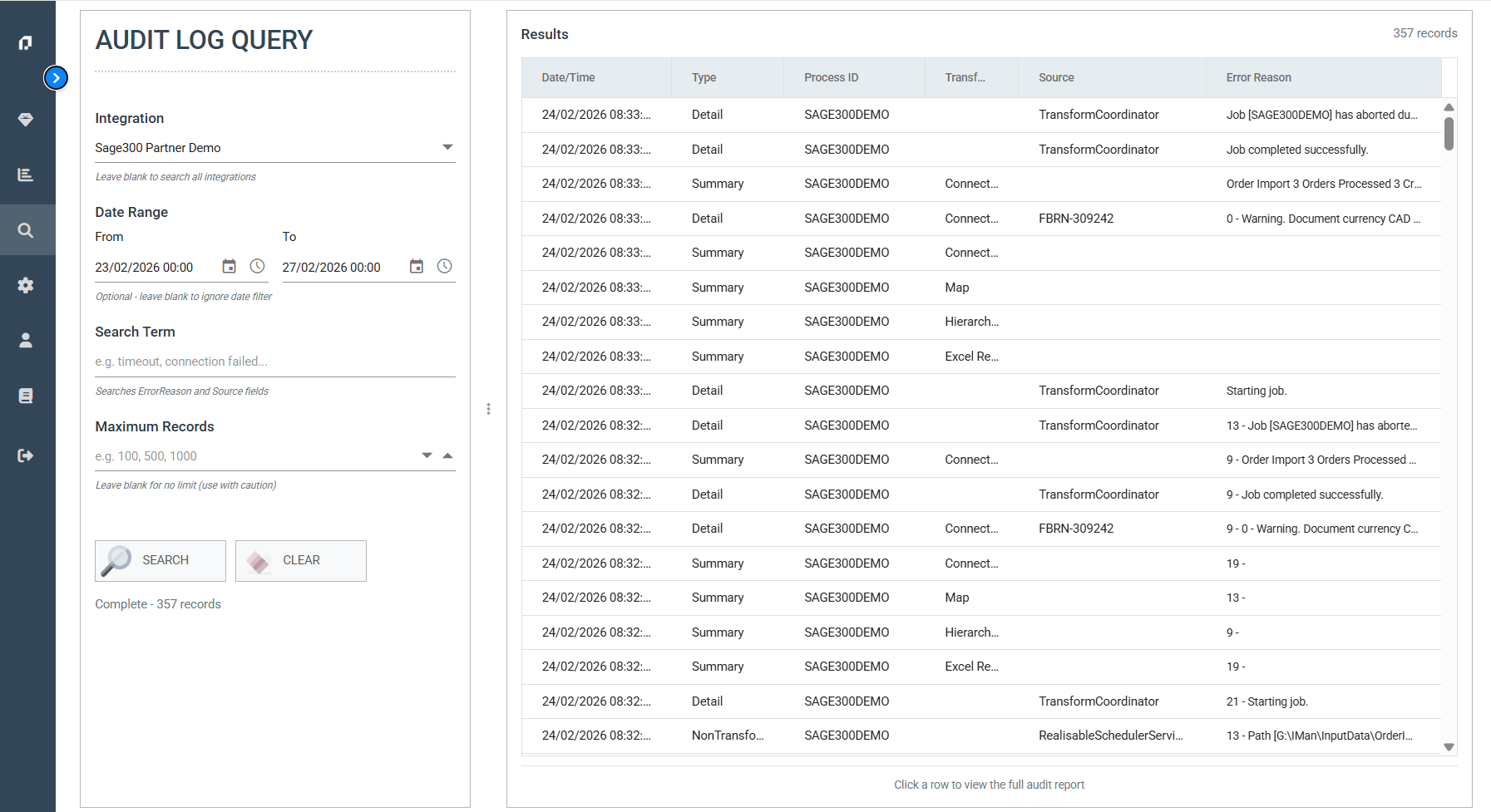

A brand new screen allows you to query historical audit logs - no more searching the database.

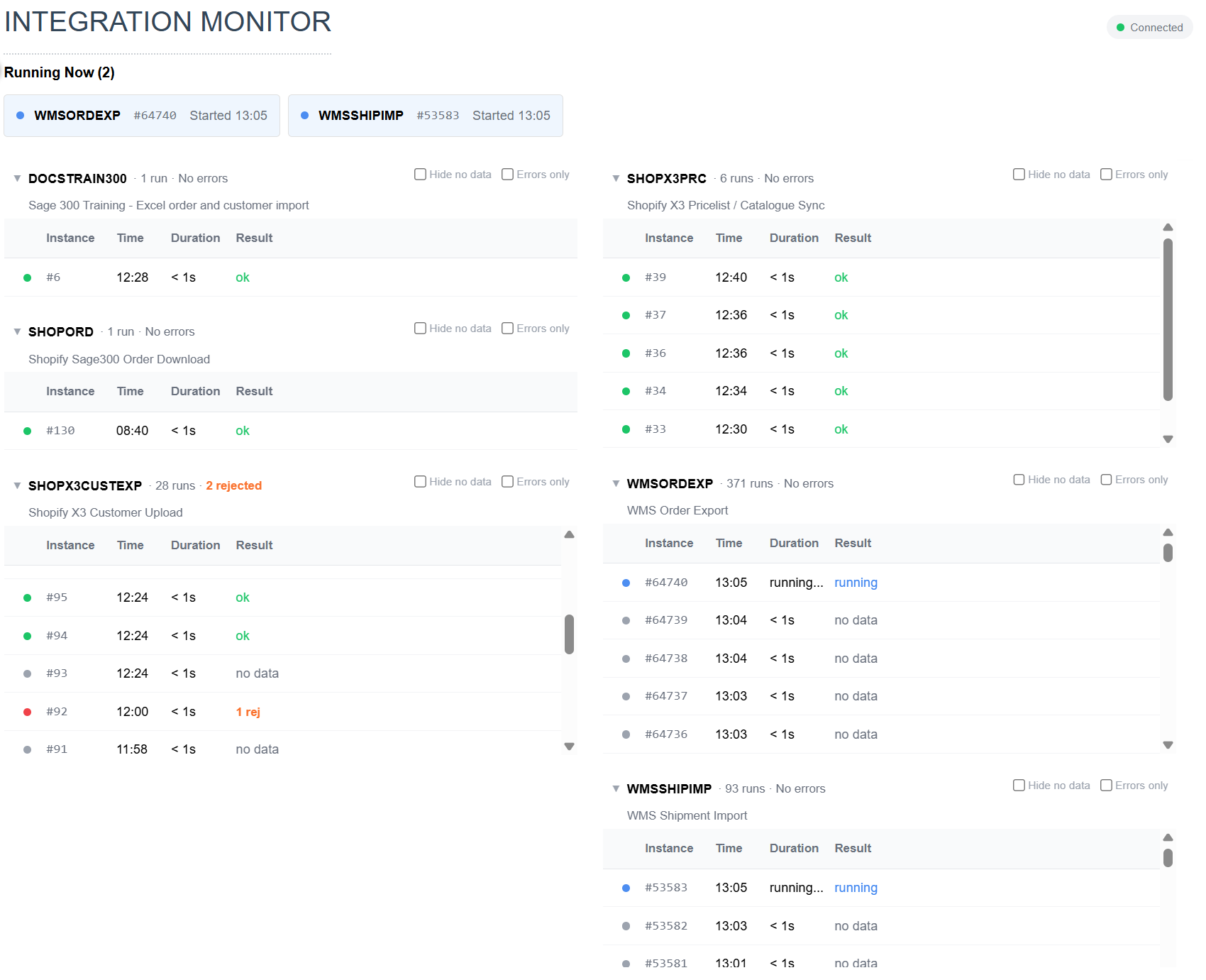

A realtime monitoring screen is in the works.
Setup Screen New Features
Each of the setup screens have been modernised, with emphasis usability and better feedback and test capability.
(Database) Lookups

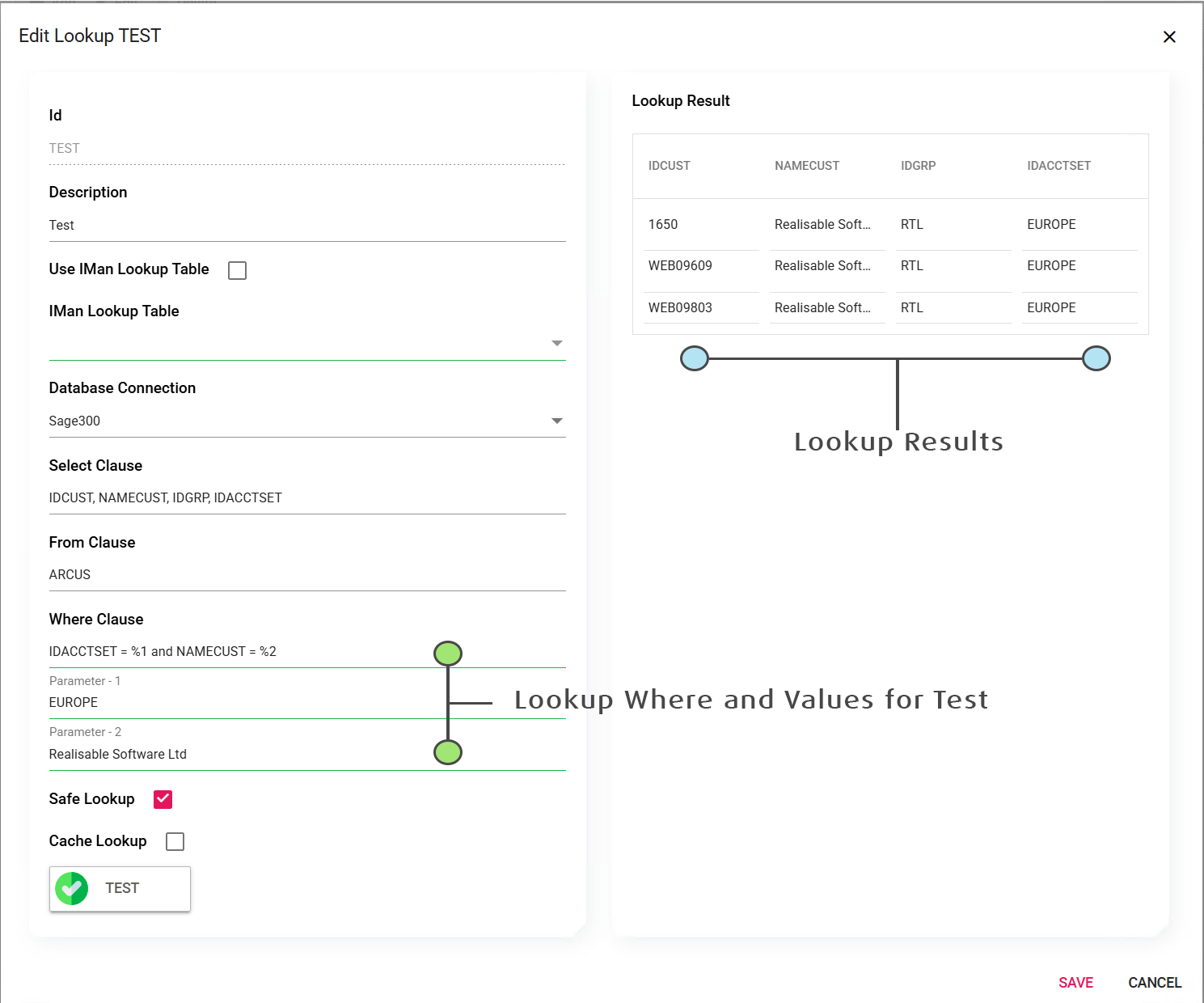

Ability to test lookups and see the results in a grid next to request.
OAuth
The OAuth screen has undergone a major overhaul. The resulting screen is to make OAuth setup as easy as possible, with setup transferable from any API documentation and better feedback when testing setup.

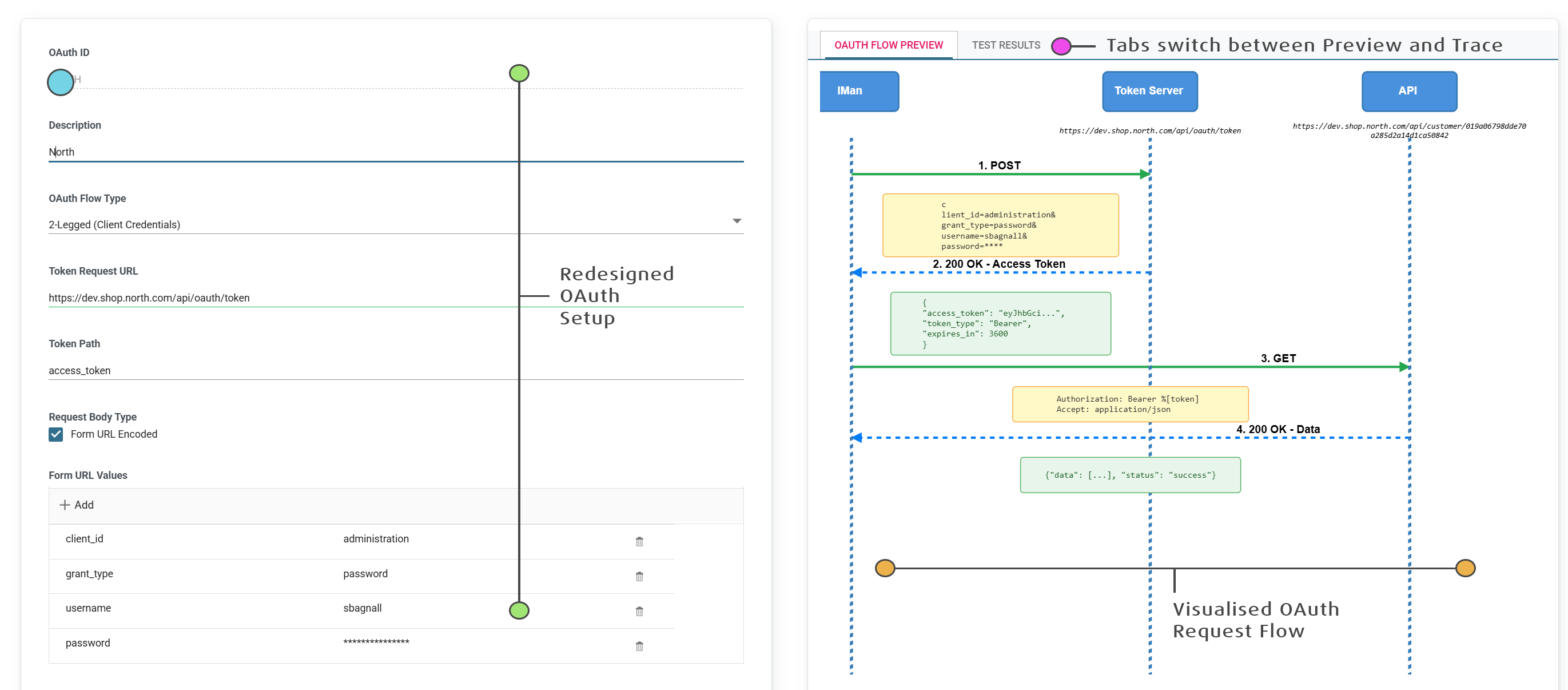

The OAuth setup now has two panes – the left hand is the entry/setup and the right a visualisation of how that request will be made.
The setup supports both 2-Legged (Client Credentials/Resource Owner) and 3-Legged (Authorisation Code Flow) with Refresh Token flow support where needed.

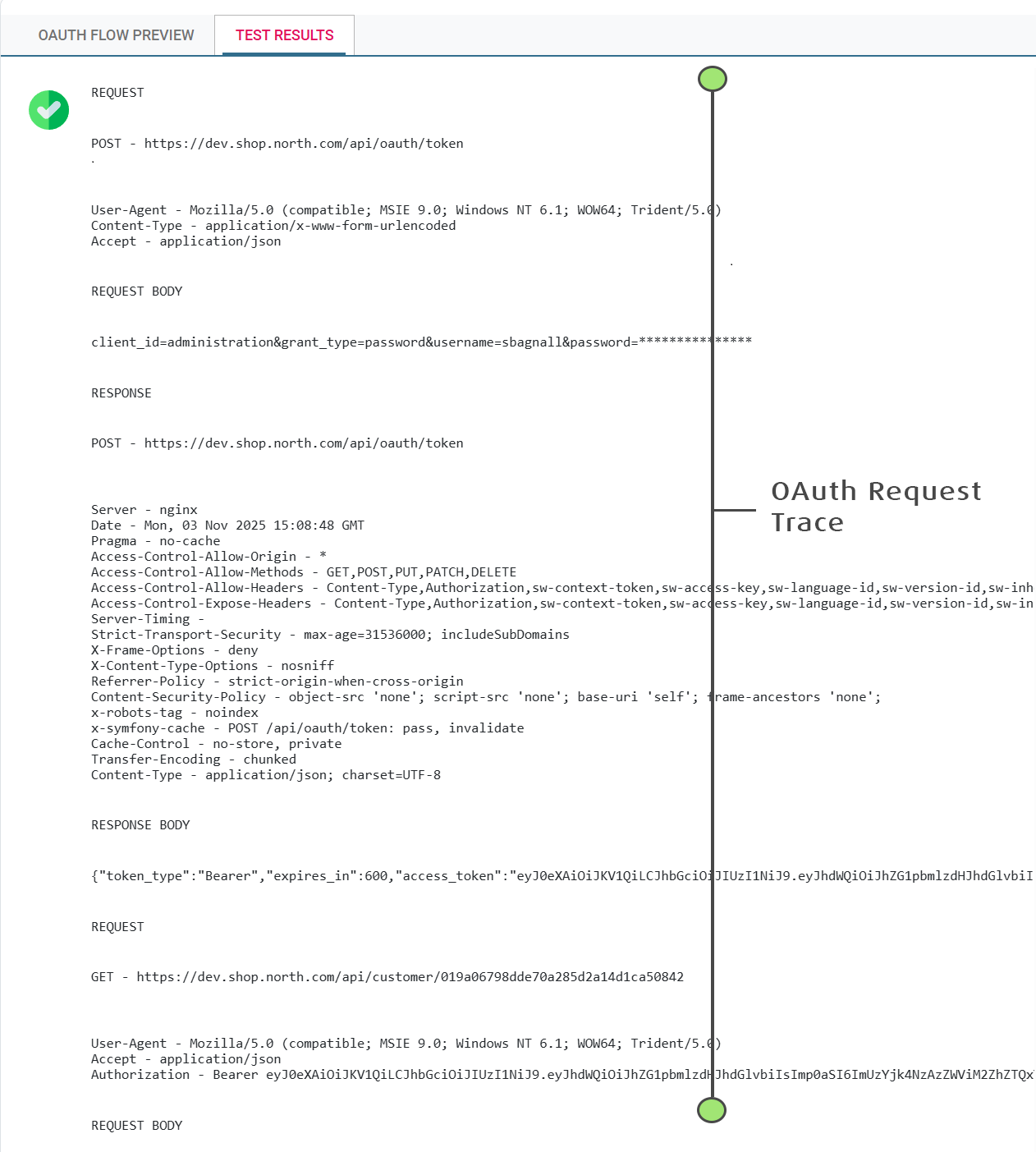

The test function now traces the entire set of OAuth requests; the initial token request, it’s headers and body, the token response and the request to a resource.
Custom Functions

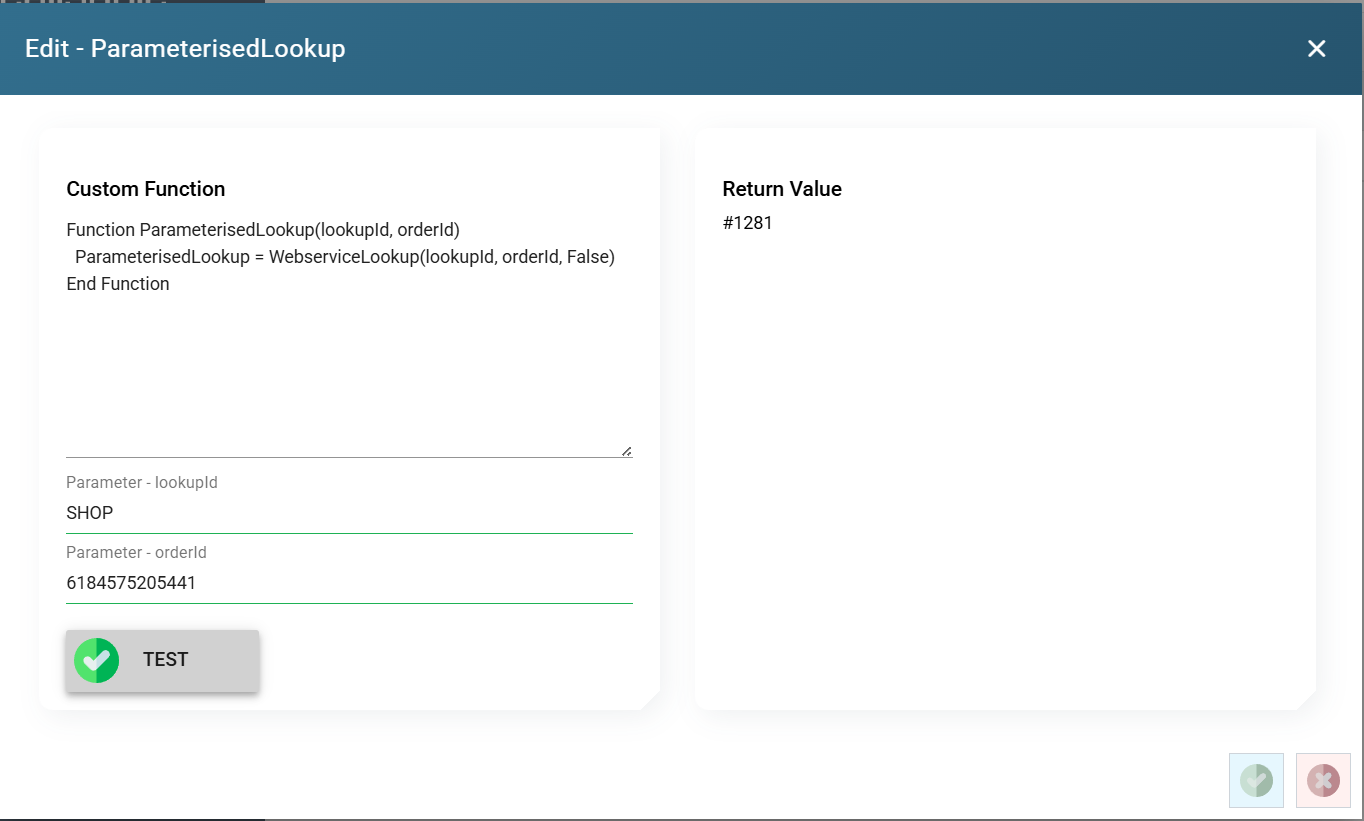

Custom functions can now be tested.

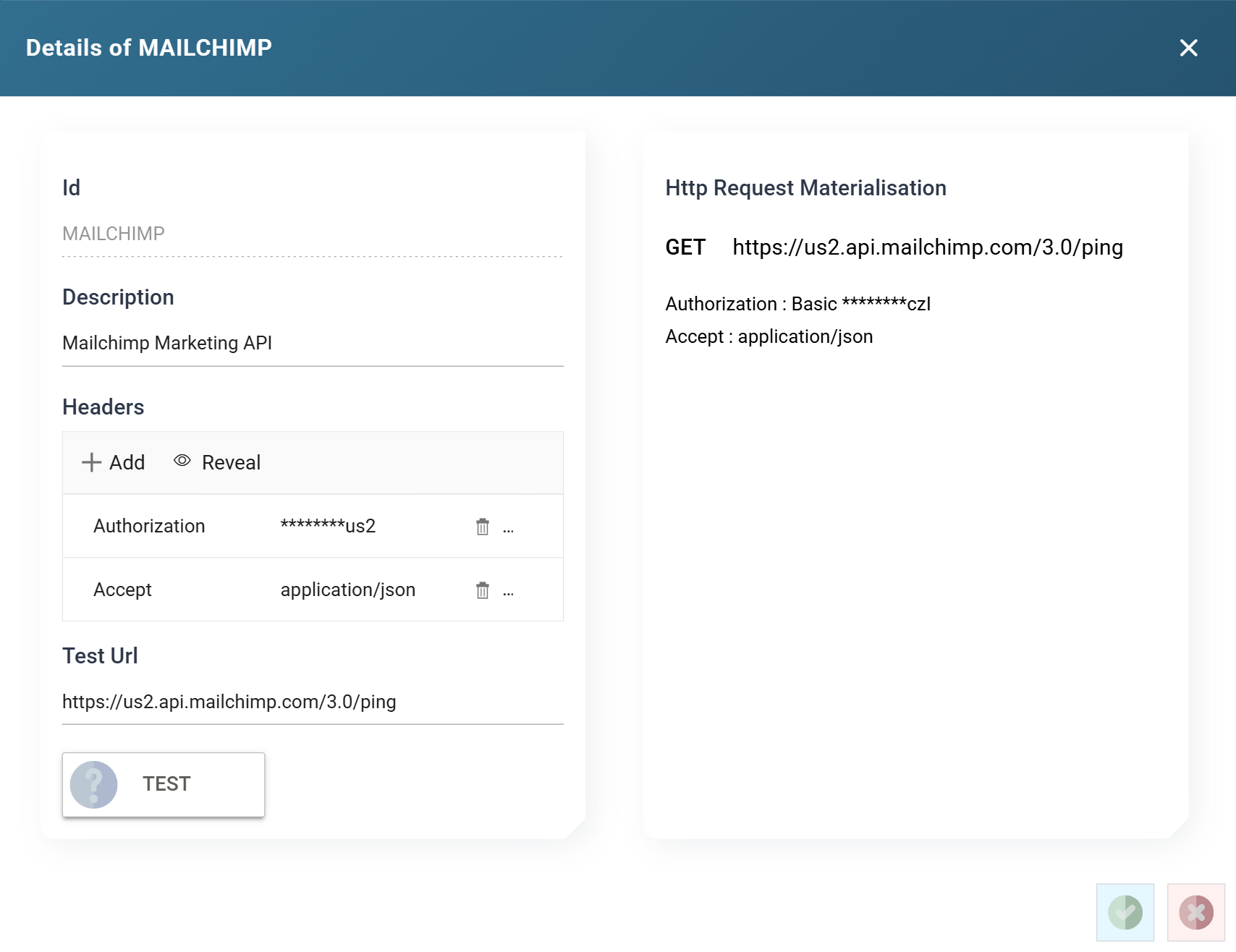

Webservices Basic Authentication

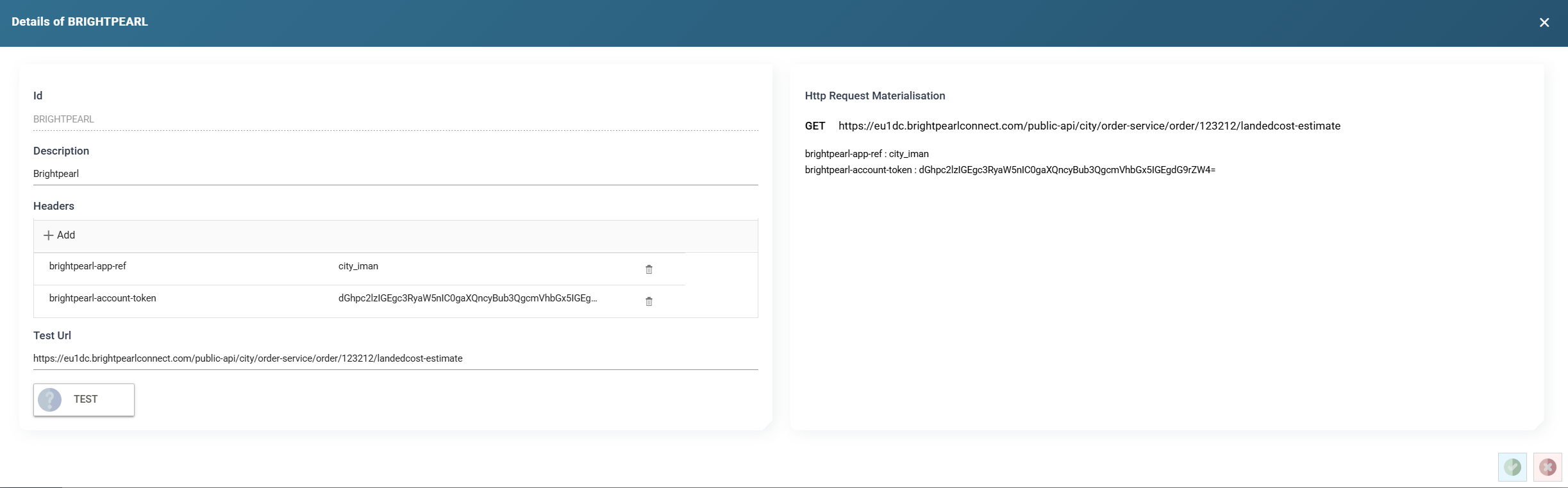

Webservices setup now has a live preview to show the exact request that will be made.
Webservices (General)

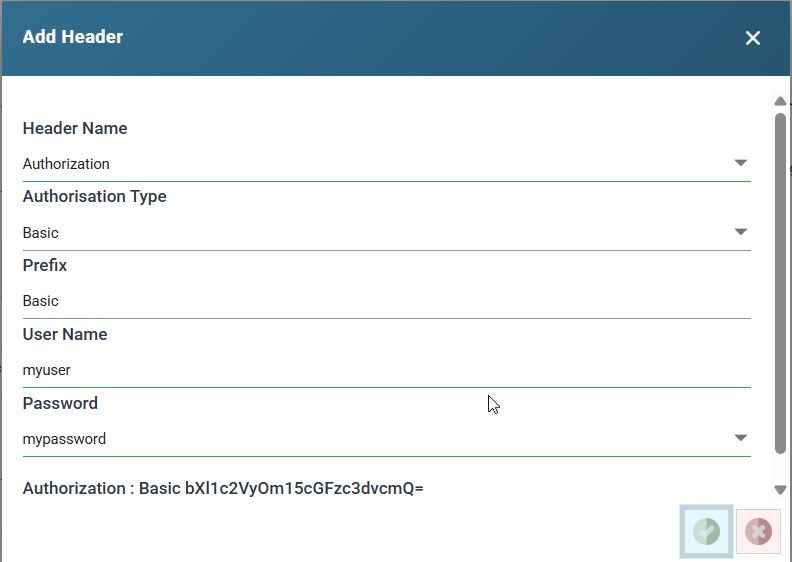

Improved request header setup:
- Default values for known headers such as Accept and Content-Type.
- Better ‘Authorization’ header handling.
Webservice Lookup

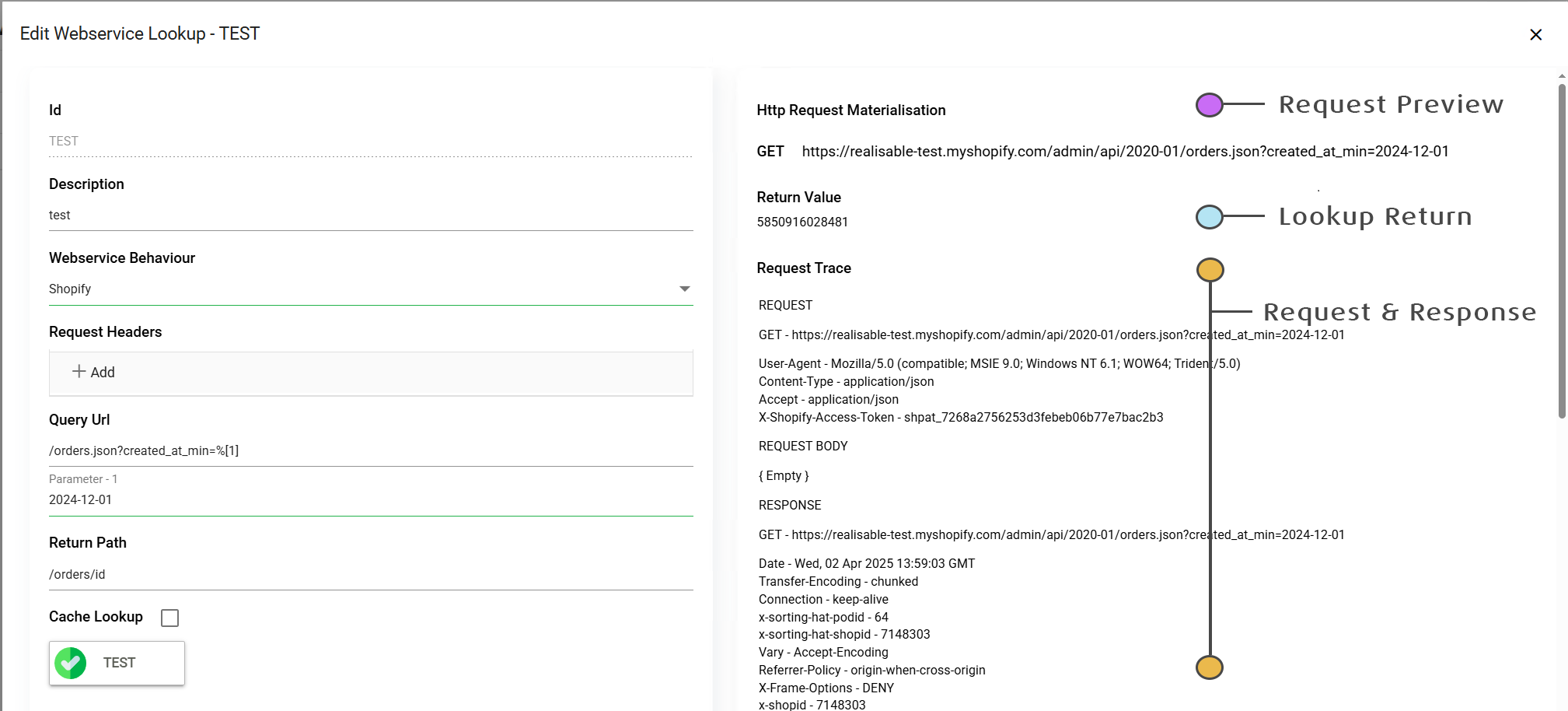

Webservice lookups can now be tested with a trace of the request and response shown to the right of the setup.
Webservice Behaviour
- Improved setup screen with ability to jump to specific section.
- Ability to test the setup.
FTP/SSH, Smtp and Pop

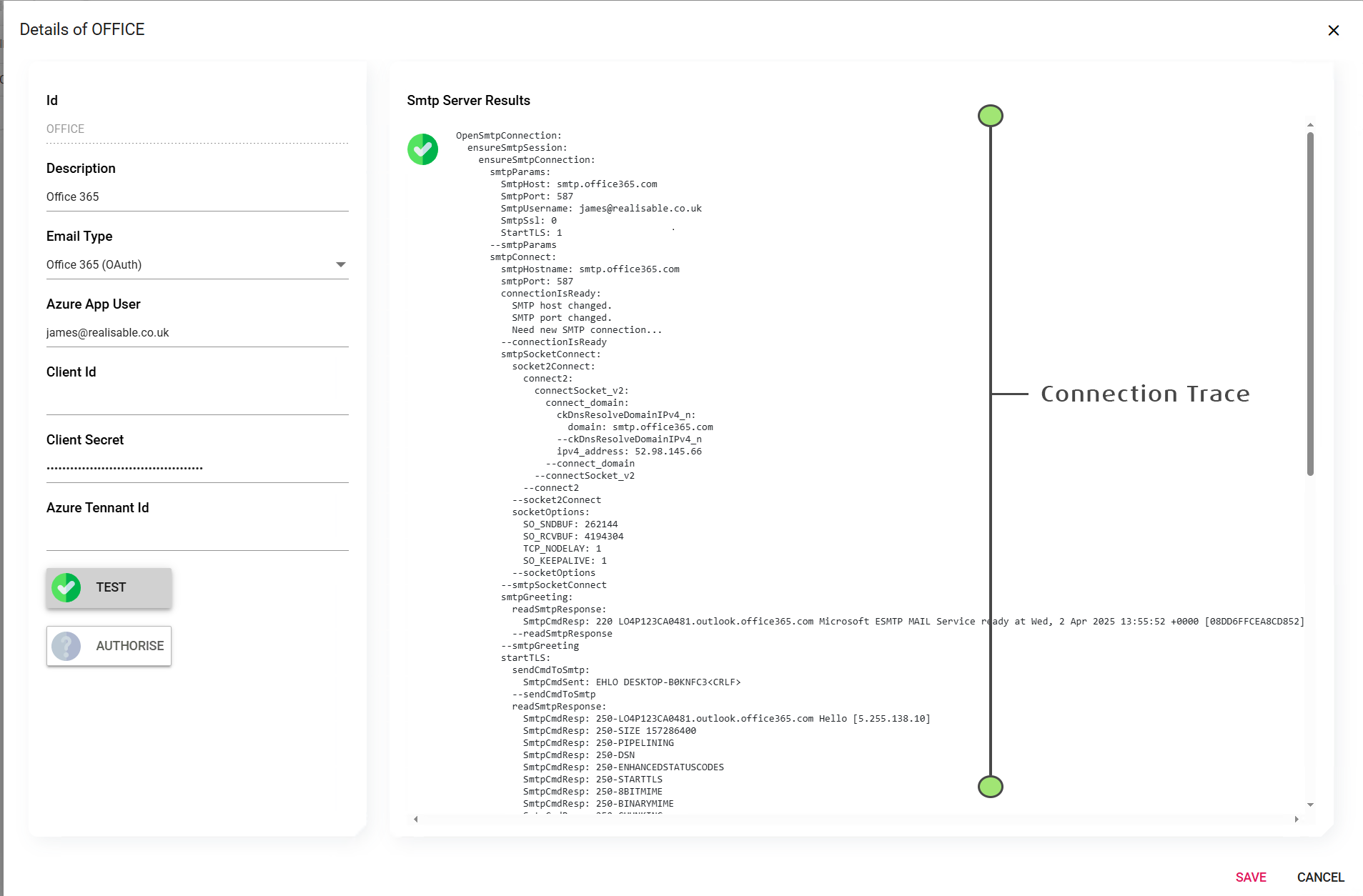

Each form now has a connection trace to the right of the setup.

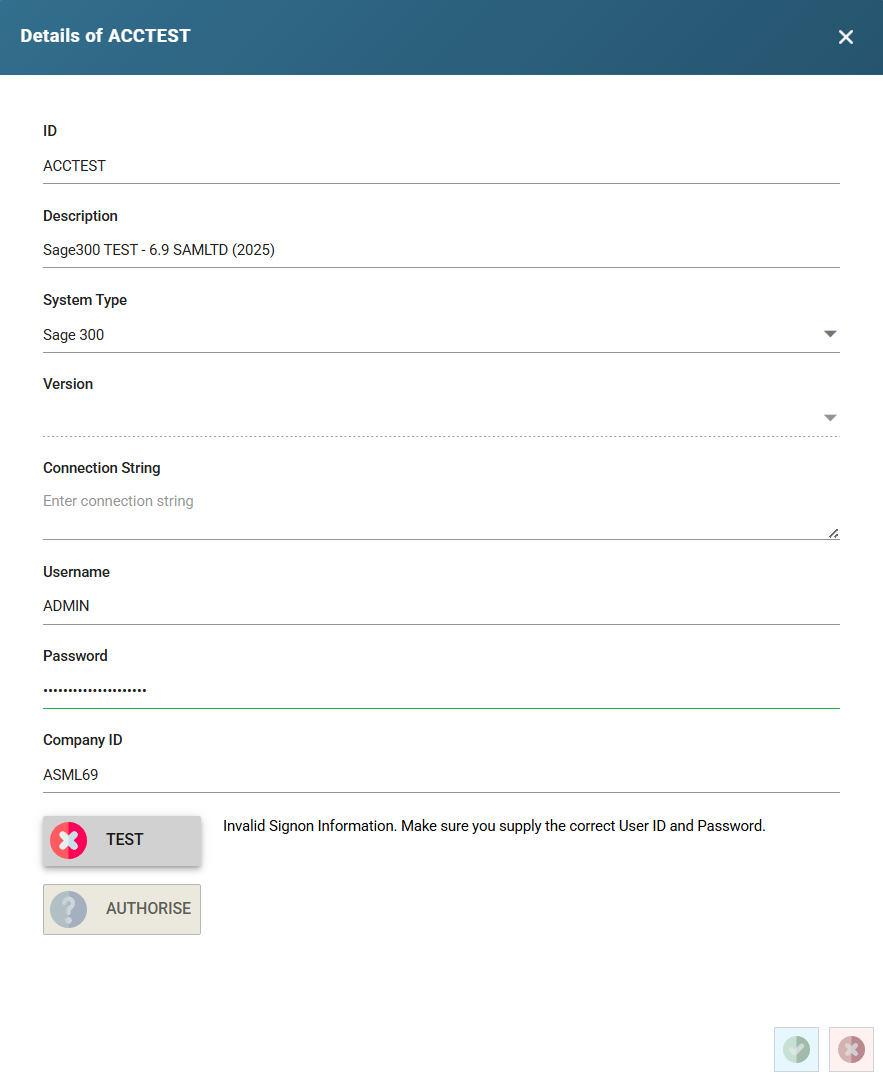

System Connectors
Ability to test (finally) system connectors.

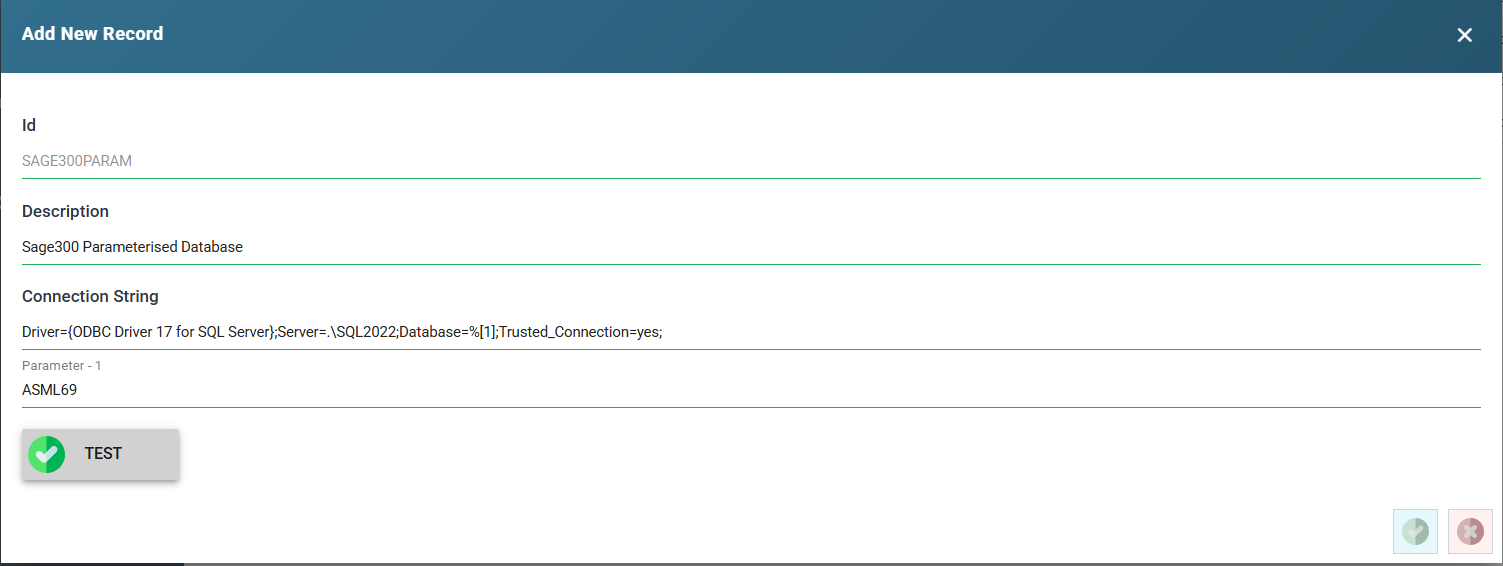

Database Connections
Can now test parameterised connection strings.
Counters
Provide a preview of sequence.
General Improvements
Better validation across most of the setup screens - more work to do here!
Scheduler Setup and View
The scheduler setup and viewer page has also been upgraded to the new UI.
Improved responsiveness – schedule setup is improved and audit logs are streamed directly to the job viewer page.

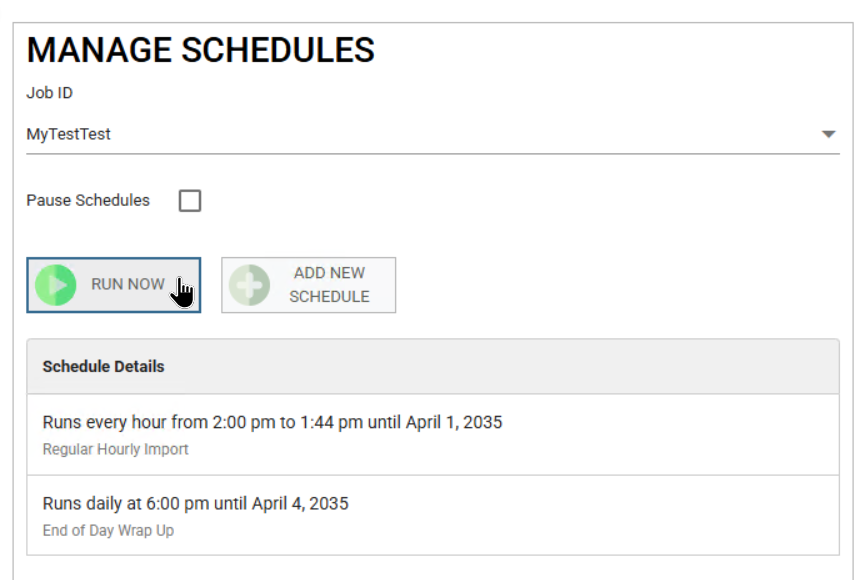

A Run Now button makes it a bit easier to run integration.
Improved schedule setup, removing the need to specify a description (it’s the schedule frequency and start time which does).
Ability to jump from the summary directly to any errors or warning in the detail section.
File Events
File events now automatically recognise changes to thefile event setup without having to restart the Scheduler service.

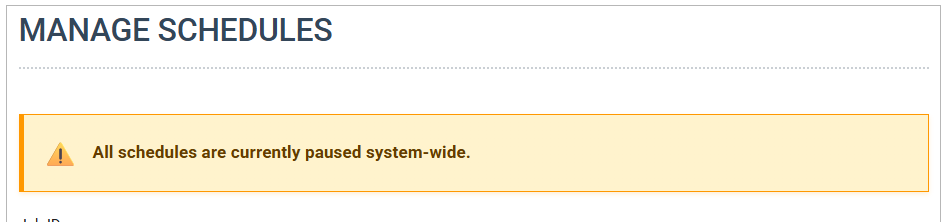

Global Pause
Notification for when the scheduler has been globally paused.

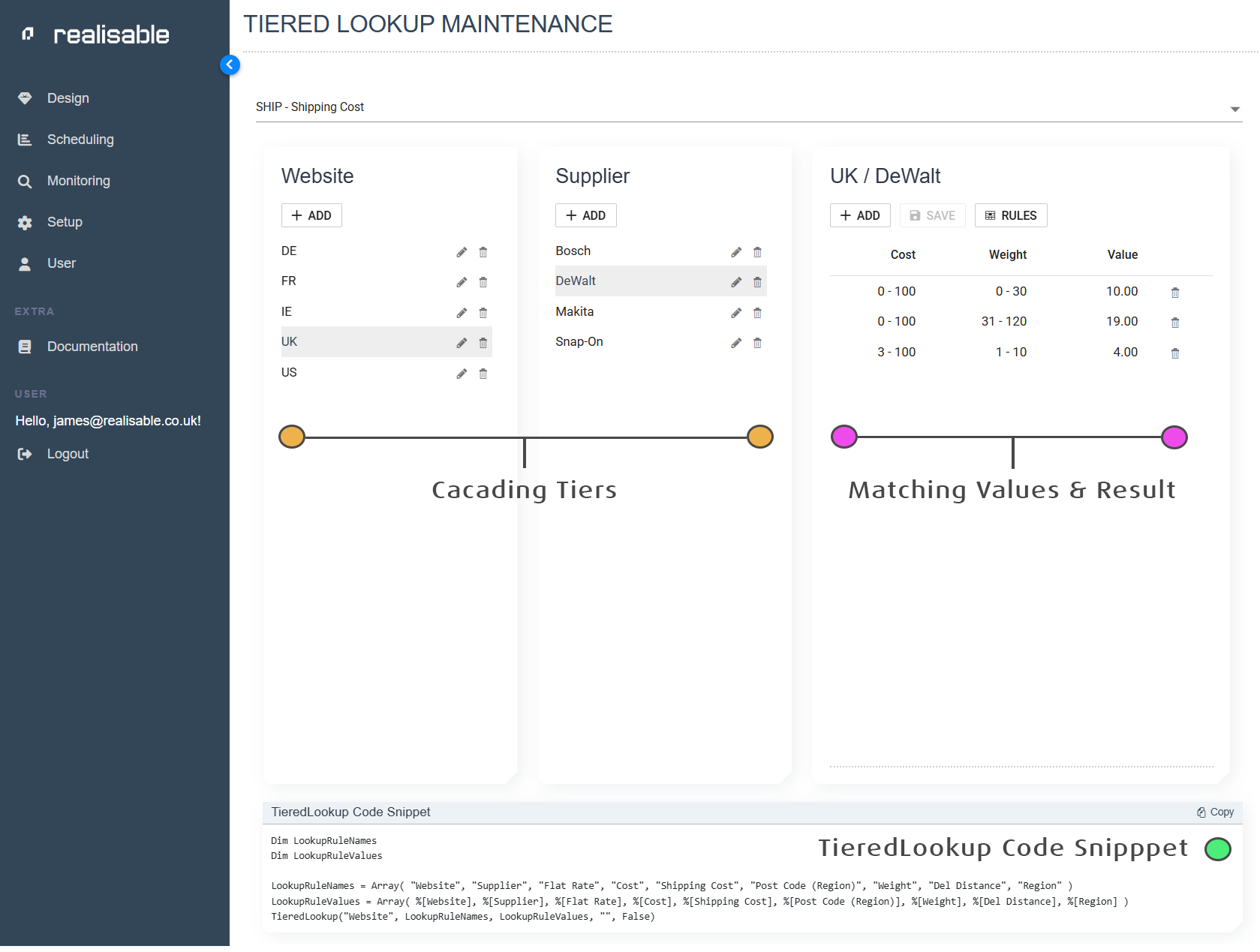

Tiered Lookup

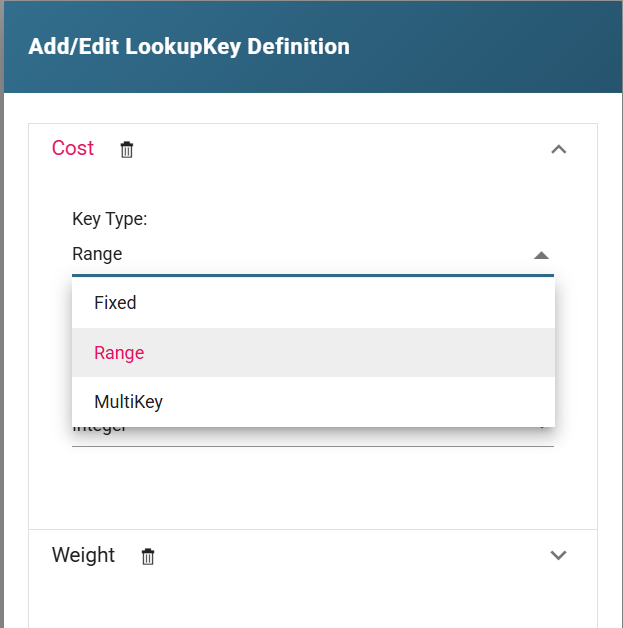

Tiered lookups allow you to define cascading lists where the choices change based on the value selected on the previously selected values.
Tiered lookups can be used to capture and maintain sets of data exhibiting these characteristics. For example, an eCommerce integration may require shipping costs to be calculated based on differing factors.
Each eCommerce drop-ship order may require shipping costs to be calculated based on differing sets of criteria. One set of products may use weight and quantity, whereas another uses a combination of destination postcode and product type.
Tiered lookups allow you to define the differing sets of rules (and values) whilst maintaining them under the same lookup ‘entity’.
Each 'Value' in a TieredLookup can be either a value, a range of values, a set list of values, or a value which has a different set of rules.
Backend Changes & Performance Improvements
The improvements have been facilitated by a major upgrade of our backend services, made through a migration from .net framework to.net core.
The new backend services (meta-data, preview, logging, etc) have each added a raft of new features and performance improvements.
A performance improvement of between 20-40% of the main IMan processing runtime (IntManEng.exe).
Setup, DataService and Schedule screens now streamed results and traces immediately back.
Authentication and Authorisation

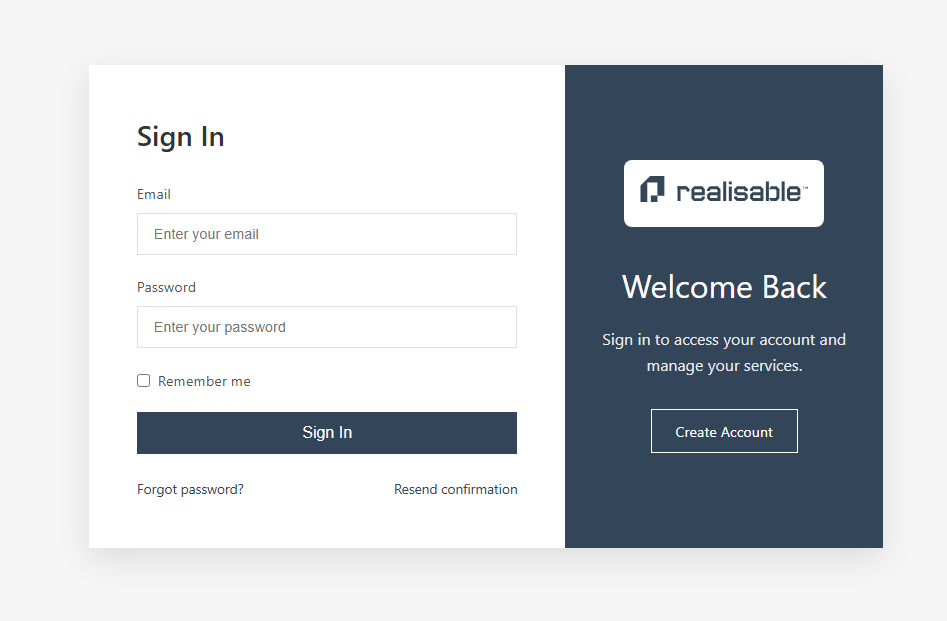

New OpenIDConnect compliant authentication mechanism, bringing IMan inline with current security standards.
Ability to easily reset passwords.
New user setup screens.
(Near Future) Support for Entra and MFA will be added.
VBScript Enhancements and Functions
Enhancements to the Sum, Minimum, Maximum, Count and DistinctCount fields allow each function to include a criteria for evaluating the value. For example Minimum(“field”, “record”, “criteriaField”, %criteriaValue).
A new IsIn function allows you to check for the existence of a value either in a list/array of child set of transactions.
First and Last functions allows you to get the first or last values from either a list/array of child set of transactions.
IsFirstand IsLast provide quick ways of testing whether you are on the first or last records.
ValueFromJPath Function – Allow you to get a value from some arbitrary JSON document or snippet.
Improved (VB) Script Control

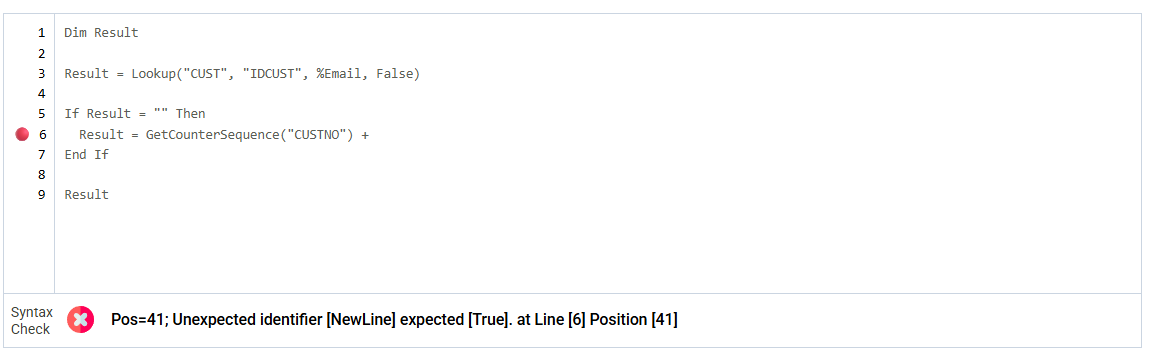

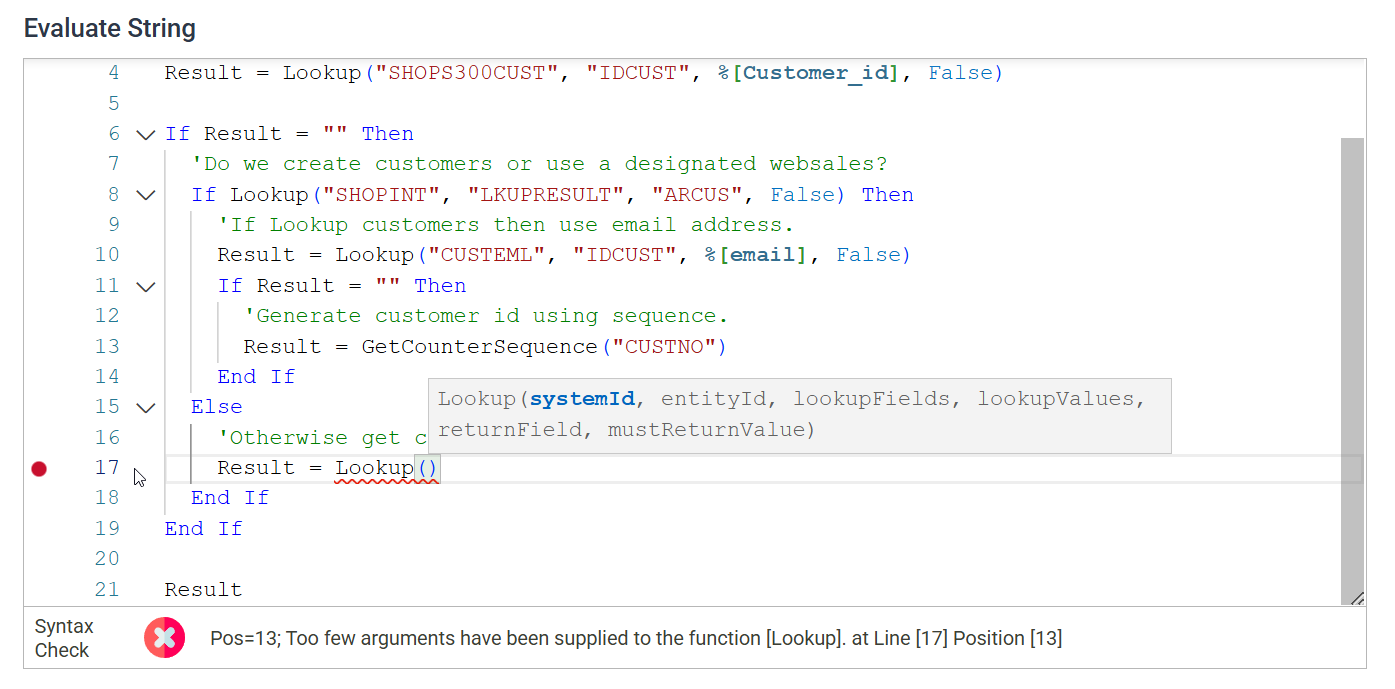

The Map, Filter and Aggregate controls use a new Script control providing immediate syntax checking.
The Boring, but Necessary Stuff
Upgrade Notice
If you are upgrading from v3.2 or earlier, you need to familiarise yourself with the V4.x Upgrade Process & Notes to note the possible breaking changes and to help plan your upgrades. We've tried to streamline this as much as possible by maintaining backwards compatibility.
License Change Notice
If you are upgrading from v3.2 or earlier there are changes to the 'Unlimited' license.
Please consult the following notification for further information.
For test licenses please consult the upgrade notice.
