Sales Invoice Import

Sage200 Sales Invoice Import (SAMS200INVIMP)

This integration imports sale invoices from a CSV file into Sage200.

The flow of the integration:

  1. Read
  2. Hierarchy
  3. Map
  4. Connector

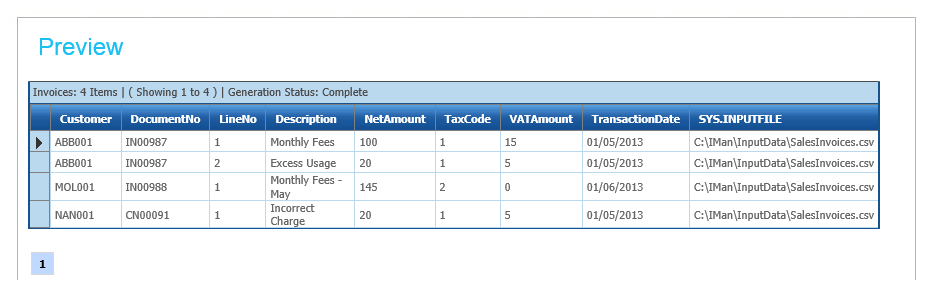

CSV Read Transform

Extracts data from the CSV file.

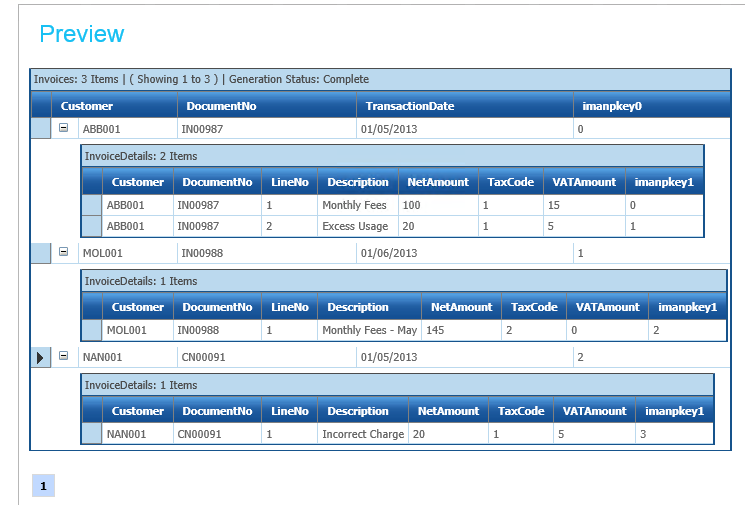

Hierarchy Transform

Transform the flat data set into a hierarchical one, so that it can be accepted into Sage200.

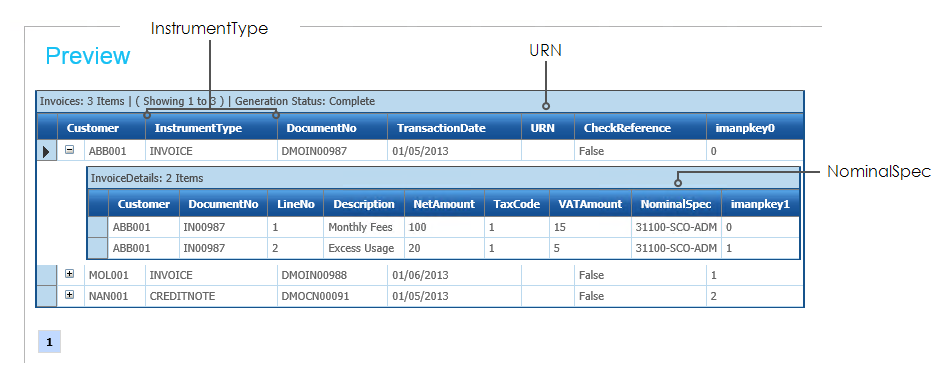

Map Transform

The Map transform prepares the dataset so it can be imported into Sage200.

  • InstrumentType
    • Uses a simple formula based on the first two characters of the DocumentNo field to determine if an invoice or credit note is to be raised.
  • URN
    • An empty field to capture the URN generated by Sage on import and then to report on the Audit Report.
  • NominalSpec
    • Set to a static value ‘31100-SCO-ADM’

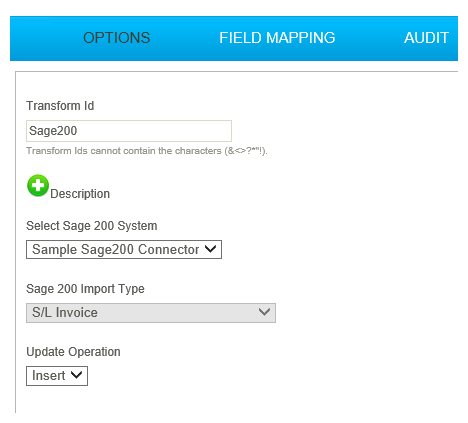

Sage200 Connector

The Sage200 connectors provides the mapping of the dataset into Sage200.

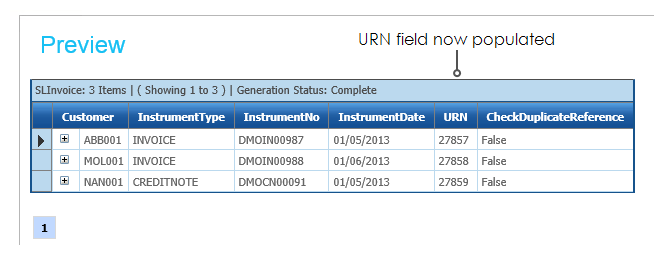

If the import is successful the URN field will be populated with the auto-generated Unique Reference Number.
