Http Redirect Writer

The Redirect Writer provides the ability to return Http Redirect responses to any WebAPI request.

Due to its nature the Http Redirect Writer works only with WebAPI requests.

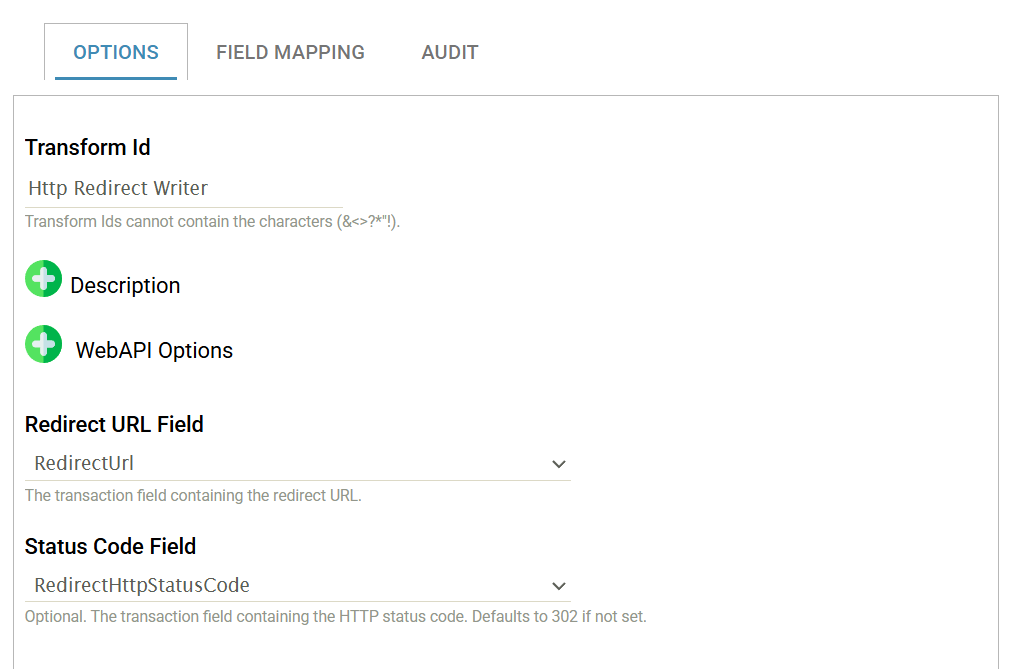

Options

Transform Id

The unique user-defined name for the transform.

Web API Options

(Read Only) indicates which WebAPI endpoint the redirect response will be returned.

Redirect URL Field

Select the field containing the redirect URL.

Only fields on the top most transaction can be selected.

Status Code Field

(Optional) The field containing the Http Status code. If no field is selected or the field contains no value the standard 302 (temporary redirect) status code is returned.

Non-numeric values will raise an error.

Only fields on the top most transaction can be selected.

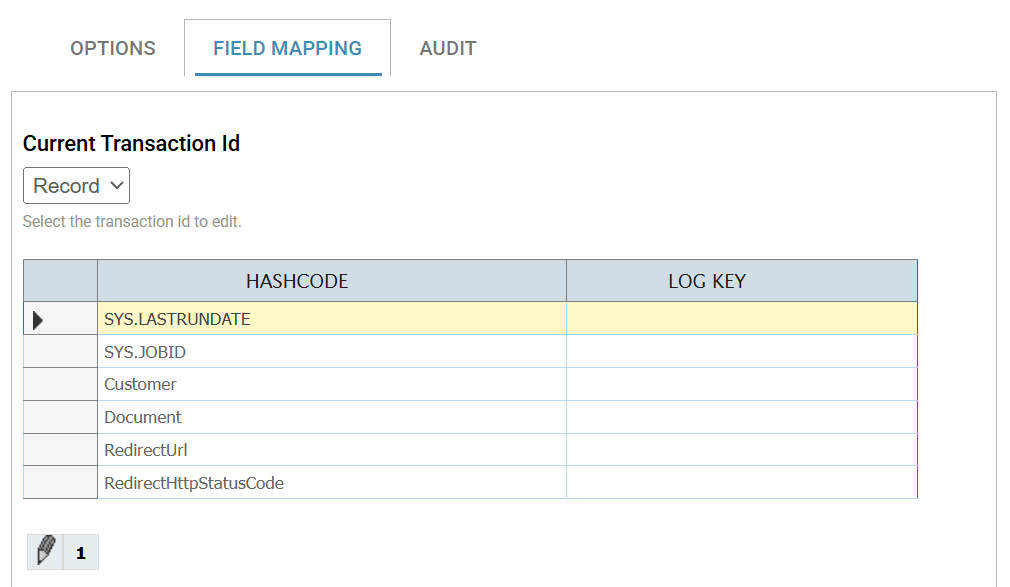

Field Mapping

The field mapping tab only allows the setting of the log keys.
