Web USers - OAuth Authentication

The Web API supports authentication using the OAuth client credentials flow.

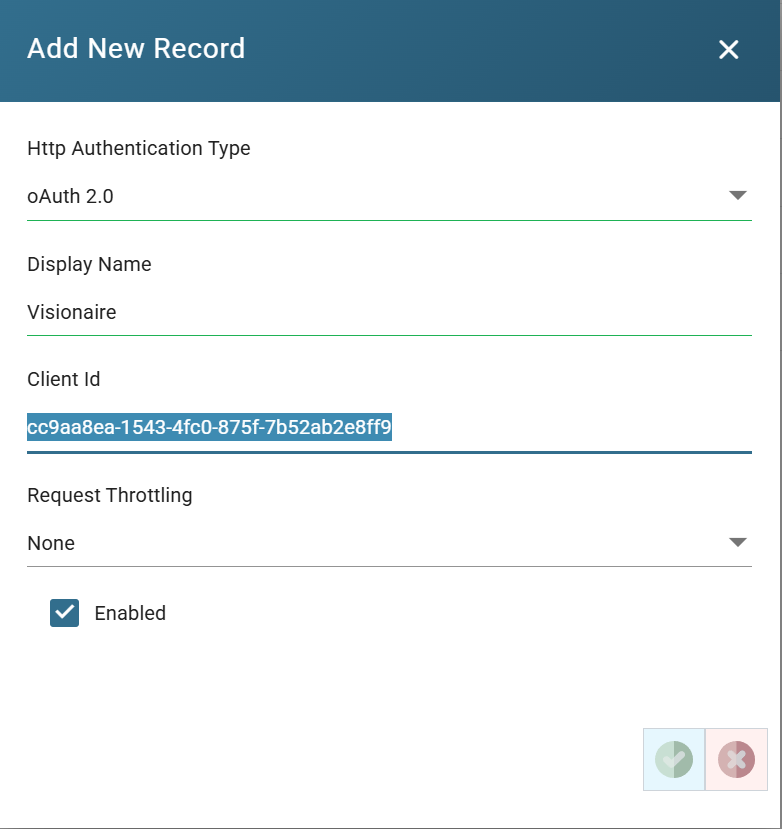

User Setup

The user setup is largely the same as user other authentication types, with the following differences:

Display Name

Used purely for display and identification purposes.

Client Id

The value used in the token request.

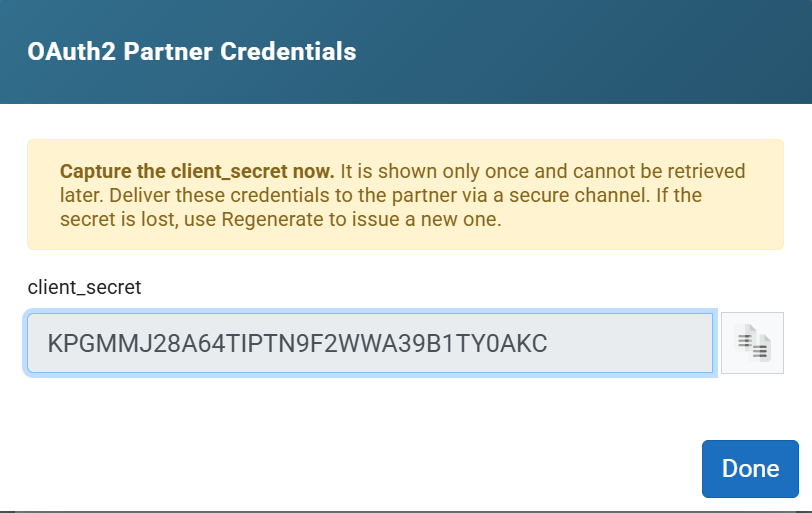

Client Secret

When a new user is created the Client Secret will be displayed.

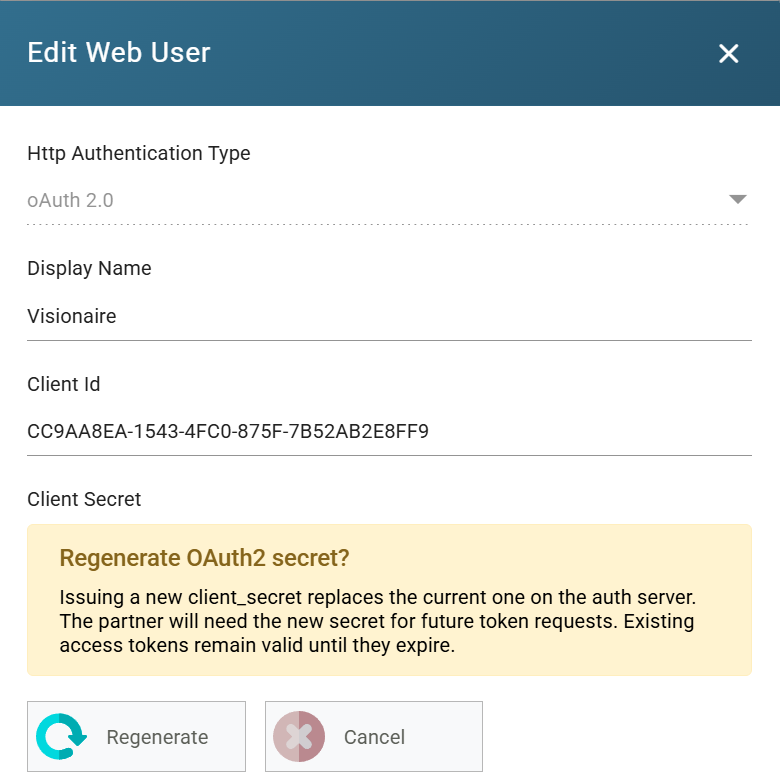

Client Secret Rotation

Existing users can rotate their client_secret.

Press rotate button, then confirm by pressing Regenerate again.

Requirements

To authenticate using OAuth it is necessary to configure the IIS Website (specifically the port - typically 443) bound to a valid SSL certificate.

Please note this must be done manually and is not performed by the setup.

A full discussion of SSL certificates is done here.

  • Add the SSL certificate to the server via Manage Computer Certificates (not described here).

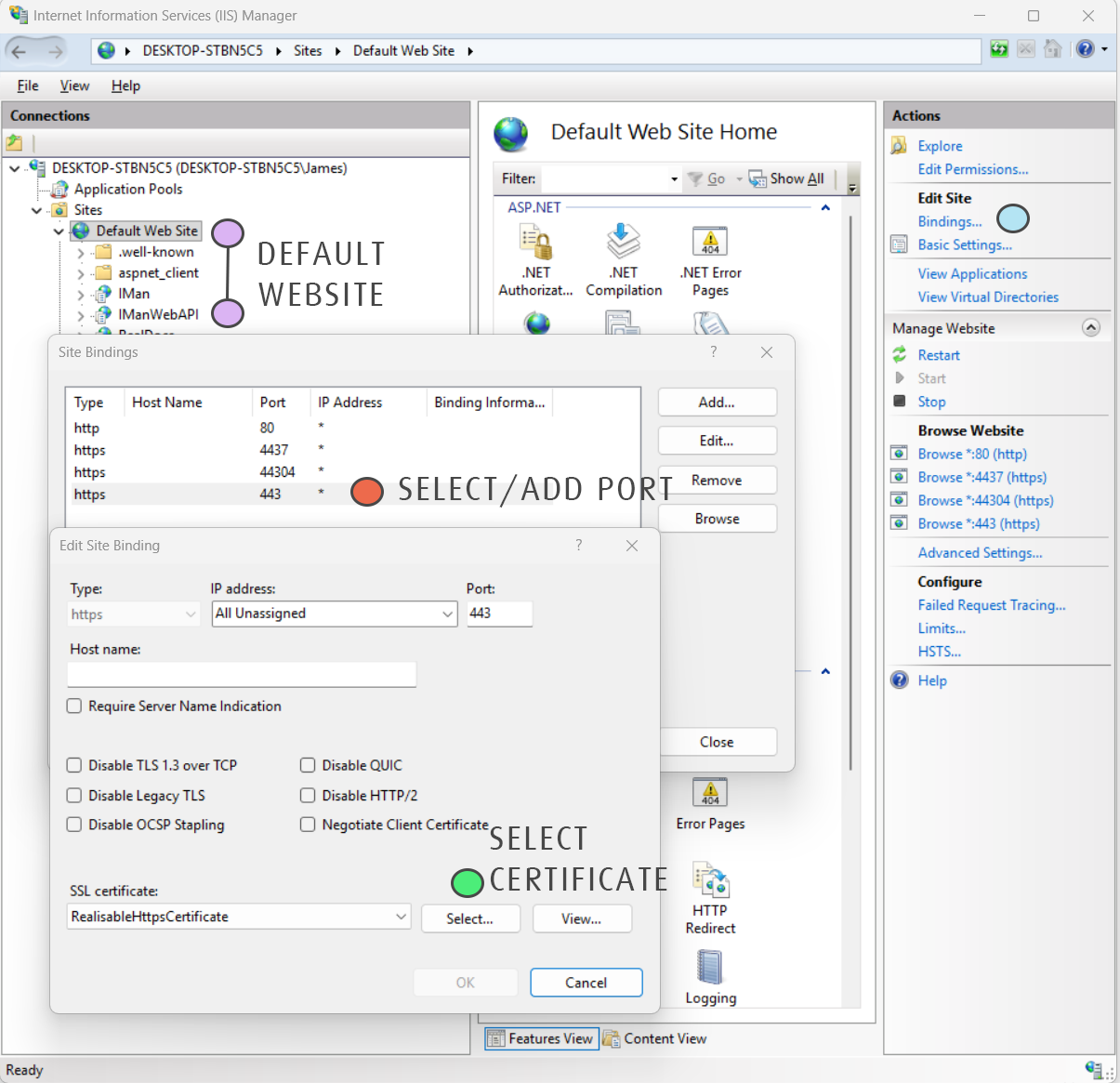

  • Open IIS Manager
    • (Purple) Identify and select the Site the IManWebAPI is found - typically this is the 'Default Web Site'.
    • (Blue) Click Bindings on the right hand side.
    • (Orange) To run the WebAPI on the standard SSL port (443) select https for port 443, otherwise Add.
    • (Green) Select from the SSL Certificate drop down the SSL Certificate added through the Computer Certificates.

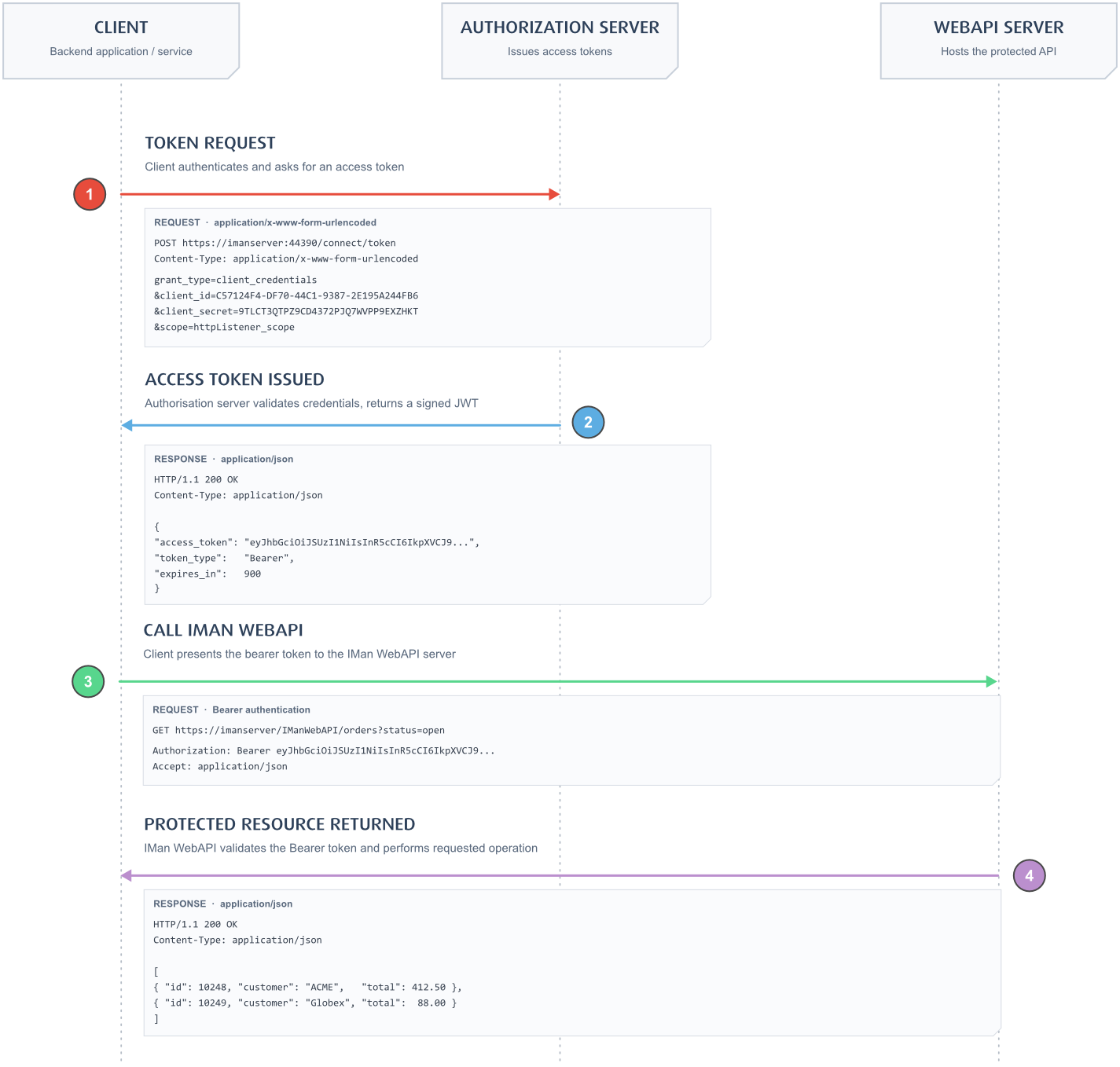

Obtaining and Using an OAuth Token

This section describes the client_credentials flow permitted for WebAPI OAuth authentication.

  1. Make the following request
    2. POST https://<imanserver>:44390/connect/token
    Content-Type: application/x-www-form-urlencoded
    Body
    client_id:<the client id from the web user>
    &client_secret:<the client secret from the web user>
    &grant_type:client_credentials
    &scope:httpListener_scope

  2. If successful a JSON body with an access_token and expires_in will be returned.

    {
  "access_token": "eyJhbGciOiJSU...",
  token_type": "Bearer",
  "expires_in": 899
}

  3. Make the request to the WebAPI passing the access_token from step 2 on the Authorization header as an Bearer token. For example:

    GET https://<imanserver>:443/IManWebAPI/orders?from=2026-04-01
    Authorization: Bearer "eyJhbGciOiJSU...
    Accept: application/x-www-form-urlencoded
