Form URL Reader

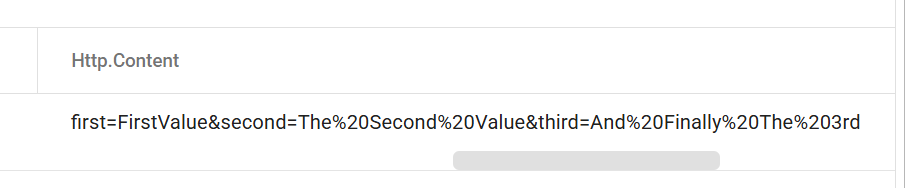

The Form URL Reader gives you the ability to consume key/value pairs typically consumed from an incoming WebAPI request (such as shown below).

The Form URL Reader parses the key/value pairs into fields on the transform.

For example the above inbound data will be parsed as:

• first
  • FirstValue
• second
  • The Second Value
• third
  • Finally The 3rd

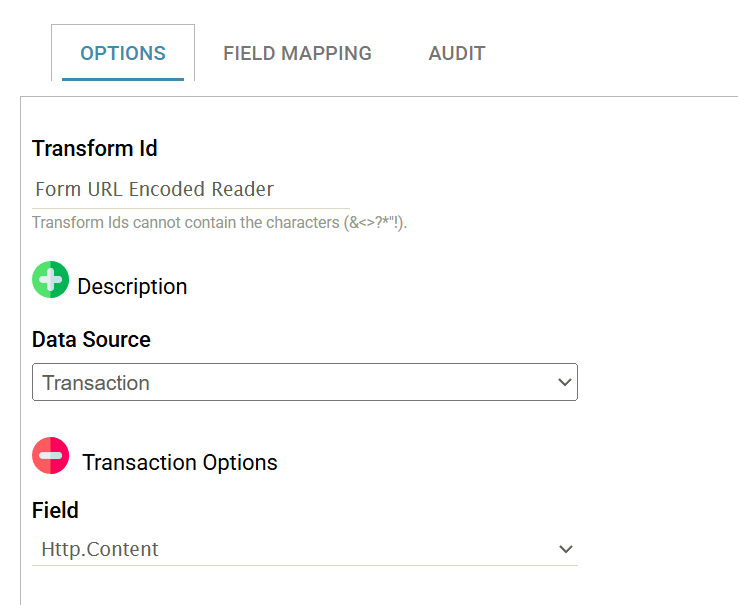

Options

Data Source

The Form URL Reader can consume data from either a file or a designated field using Transaction.

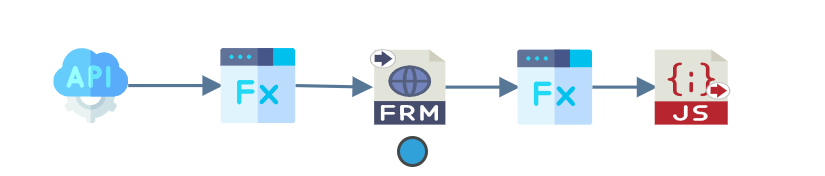

In a WebAPI scenario this is typically Transaction and the field is Http.Content, containing the FormURLEncoded data.

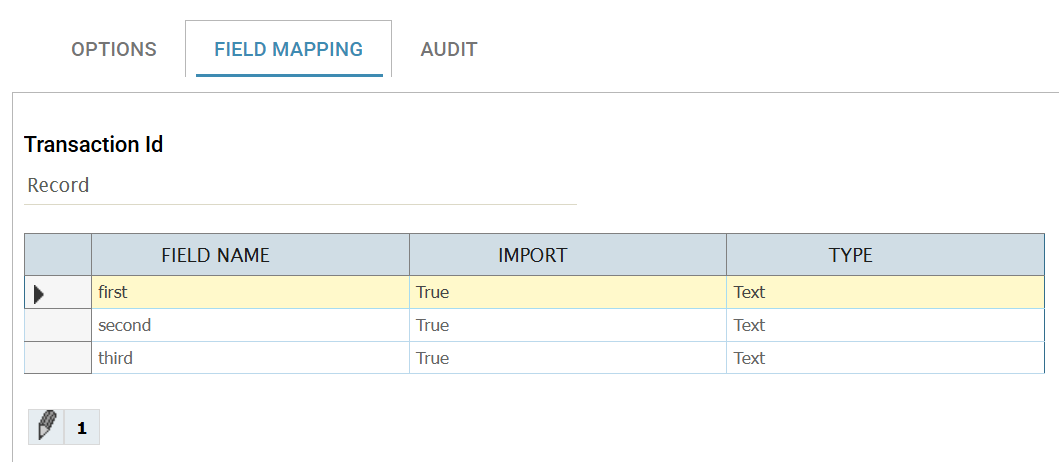

Field Mapping & Fields

The field mapping tab simply show the parsed fields (or keys) taken from the FormURLEncoded data.
