Querying Acumatica Entity / Objects

IMan can query Acumatica objects directly.

  • The full object with hierarchical relationships. I.e. A Sales Order with Order Lines and Payments.
  • Is slower and will typically consume may more API calls than a flat Generic Inquiry.

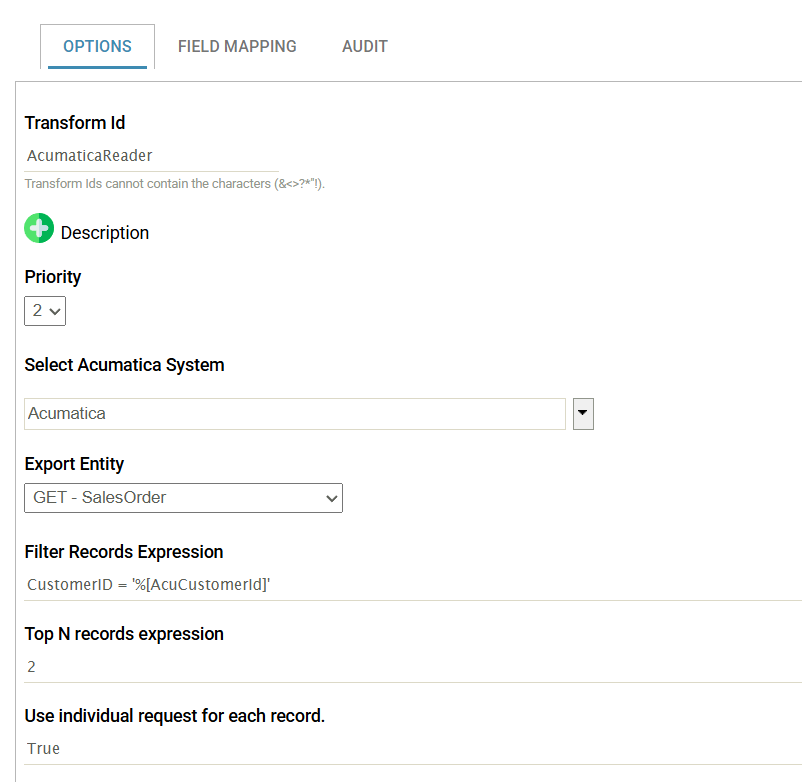

Options Tab

Export Entity

All object / entities are prefixed with 'GET' followed by the object name.

Filter Records Expression

The expression here allows you to pass values to the Parameters defined on the Generic Setup.

The filter supports the following operands: =, <> (not equals), >=, >, <= and <

Multiple Parameters

Multiple parameters can be specified by and-ing each parameter. For example:

CustomedID = 'JOSHWINK' And CustomerClass = 'ZYX'

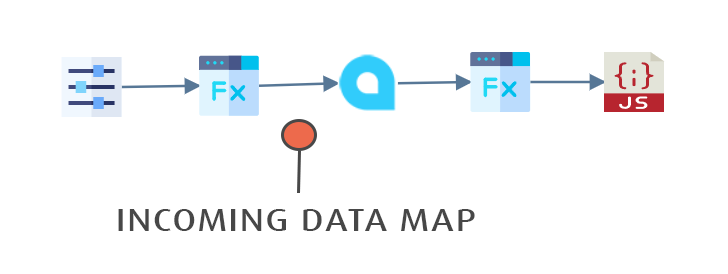

Parameterising from Incoming Data

It is possible to dynamically set the values of the parameters by mapping an incoming transform to the Acumatica reader.

For example:

CustomerID = '%[OrderNumberStart]

If the example incoming IMan fields were CustomerID

Top N Records Expression

Returns on the first X number of records.

Use Individual Request for Each Record

When the value is True each record is retrieved individually.

This allows you to retrieve the entire record to overcome the BQL Delegate error.

When enabled, an API call will be consumed to obtain the list records / objects, and then an API call for each record / object.

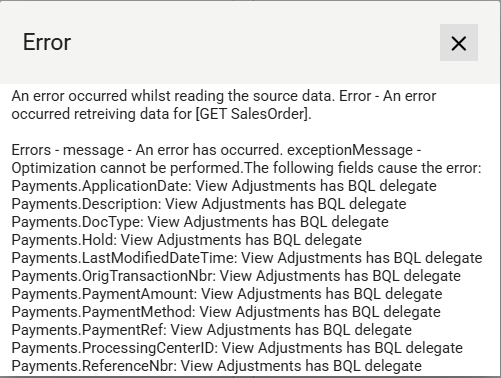

BQL Delegate Error

When retrieving records objects the following error can be generated.

To resolve the issue:

  • Deselect the fields and/or child transactions listed in the error message (assuming they are not required).
  • Enable 'User Individual Request for Each Record'

Field Mapping Tab

The field mapping tab allows you to select which fields to include in the resultant dataset.

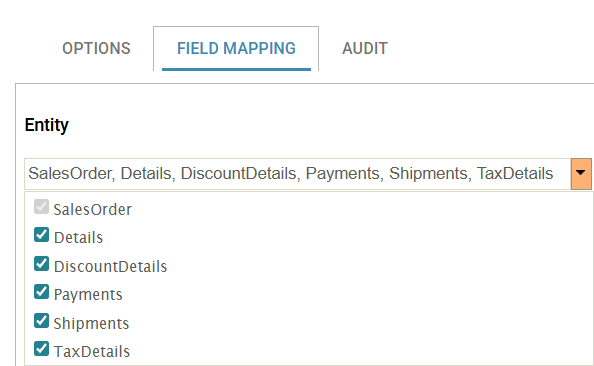

Entity

The Primary Entity and any children are listed on the drop down. Apart from the top-level entity can be removed from the dataset by selecting it.

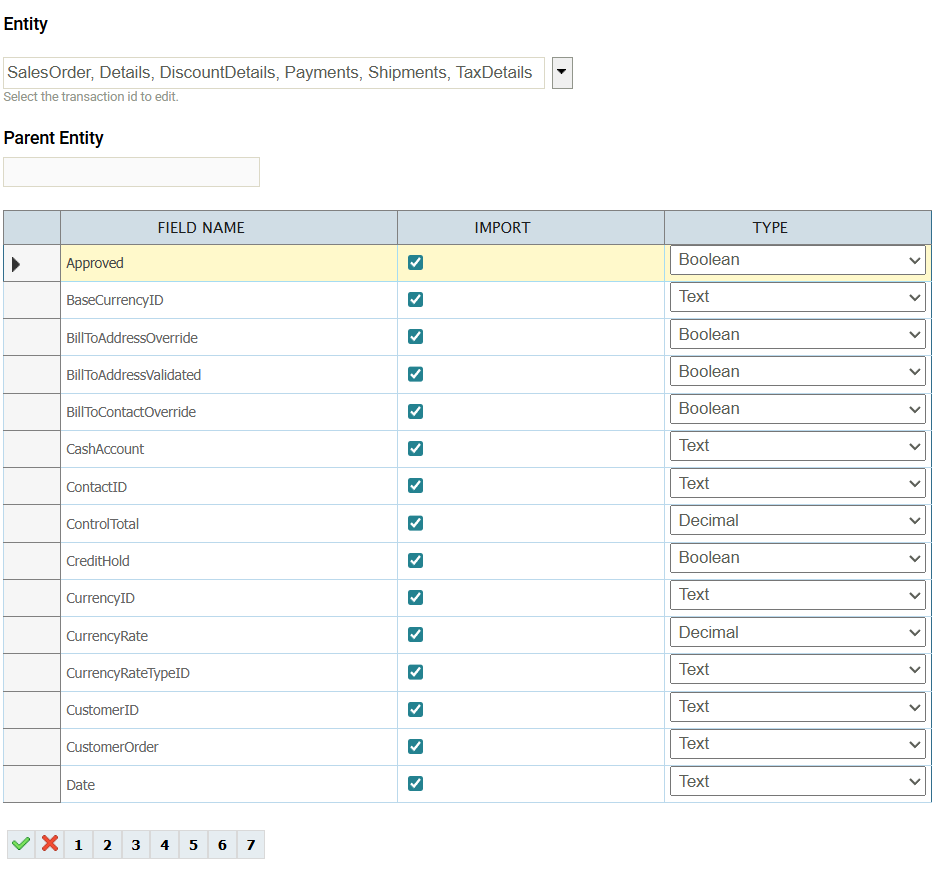

Grid Edit Button

Click to change the grid into edit mode.

When in edit mode selecting/deselecting the Import field will include/exclude the field from the resultant dataset.

Nested Fields, Attributes and Custom Fields

The fields listed on each entity will include:

  • Nested Objects Fields - Are displayed in the form of the [outer property name].[nested field name].

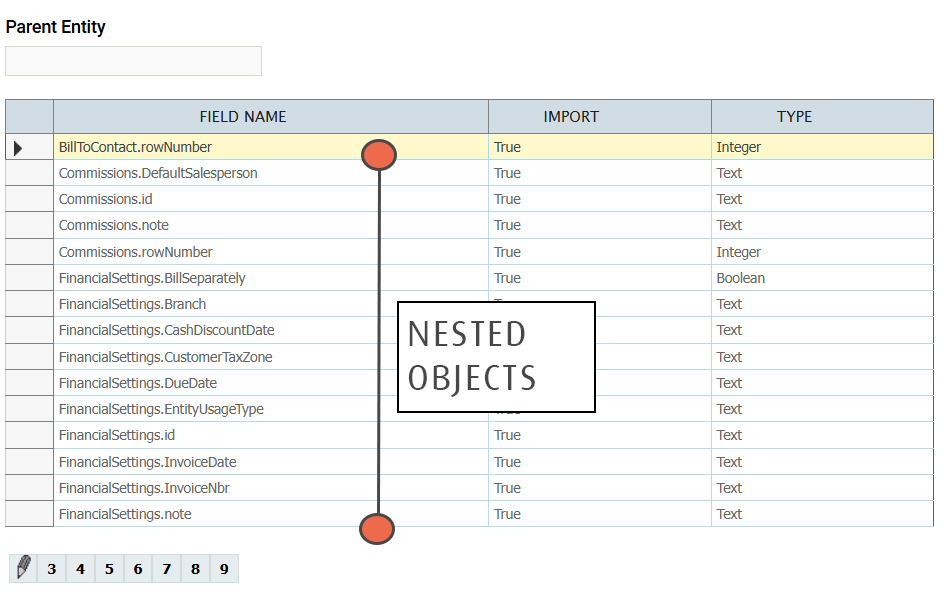

    The screenshot below shows the BillToContact, Commissions, FinancialSettings nested fields.
  • Attributes - Are displayed at the last pages of the field list in the custom fields have ATTRIBUTES followed by the Attribute ID.
  • Custom Fields - Are displayed at the end field list where each custom field is prefixed with 'Custom_'.
