PU9 and above

Since PU9, Sage X3 webservices is no longer a separate server and is included in the X3 server (which serves the web pages), and requires a different setup to previous versions.

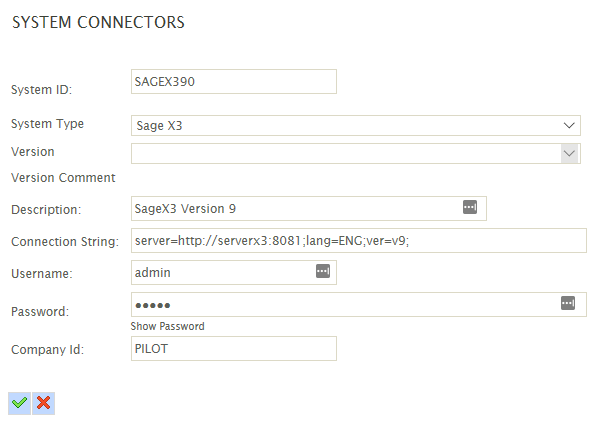

System Connector Setup

  1. Login to IMan and got to the Setup tab.
  2. Select the System Connectors option from the left hand side menu.
  3. Create a new connector by double clicking the empty row at the top of the grid and enter the following details.

  1. System ID
    • A unique identifier.
  2. System Type
    • Set to ‘Sage X3’
  3. Version
    • Leave blank
  4. Connection String
    • The connection string must include the version token to force the new (basic authentication) method with the new X3 server.
      • server=<server url & port>; lang=<language code>; ver=v9;
      • For example:
      • server=http://serverx3:8001;lang=ENG;ver=v9;
  5. Username
    • The X3 username.
  6. Password
    • The password for the X3 user.
  7. Company Id
    • Set to the webservice connection pool alias (pool.def.alias) created in the previous section.
  1. Press the Green Tick at the bottom of the grid to save the entry.
