Reading Data from Shopify - JSON Reader

This guide will create a ‘Reader’ to read orders from Shopify. The primary reference will be the Shopify API, specifically the Orders endpoint.

https://help.shopify.com/api/reference/order

In this section you will learn how to:

  • Setup the IO Controller for reading from Webservices.
  • Learn how to address the data being returned from the webservice.
  • Learn how to setup a hierarchical datasource.

Step a – Add the JSON Reader

  1. Create a new Integration.

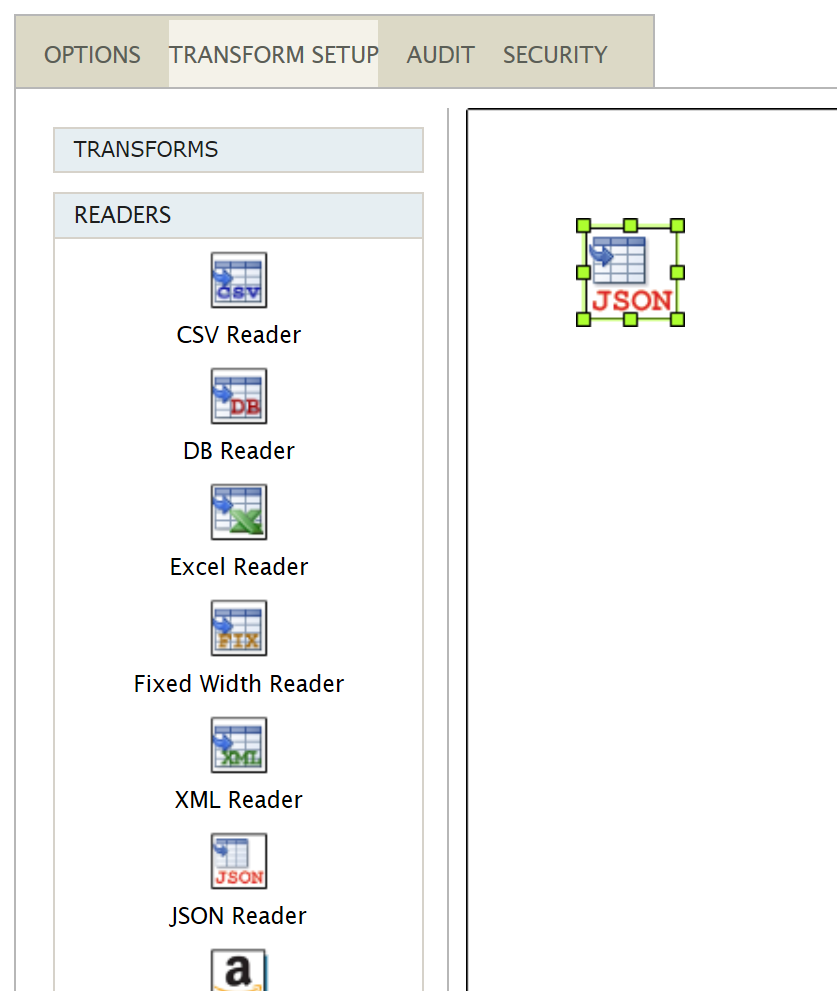

  2. Click on the Transform Setup tab; click on Readers; drag a JSON Reader onto the design palette and; double click to open the transform setup screen.
  3. Double click the JSON icon to open the transform setup screen.

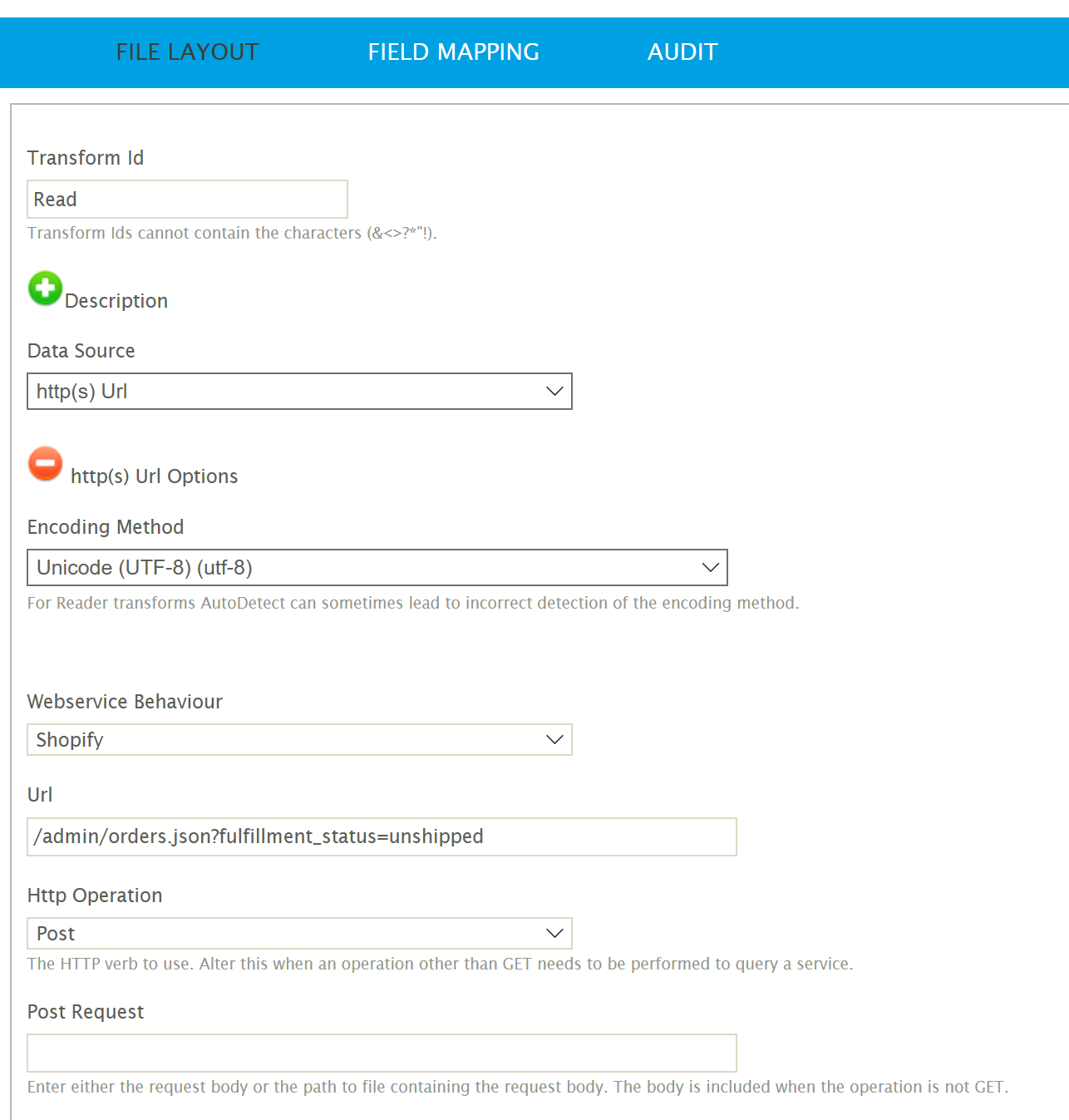

  4. Select Http(s) URL from the Data Source drop down.
  5. Select the Shopify Webservice Behaviour.
  6. The URL we wish to query, including any parameters/filters. Since we have a Base URL defined in the webservice behaviour the full URL does not need to be specified.
    /admin/api/2019-04/orders.json?fulfillment_status=unshipped

Step b - Building up the Transform

This version of IMan we don’t have the facility to auto-detect the schema, so we need to define the levels/transaction types and fields ourselves. A good place to understand the hierarchical data can be found in the concepts.

SHOPIFY RESPONSE / JSON Data

To build the JSON Reader, we will use both the example response in the Shopify documentation and the mock response shown below.

{"orders": [
    {
      "id": 450789469,
      "email": "[email protected]",
      "closed_at": null,
      "created_at": "2008-01-10T11:00:00-05:00",
      "updated_at": "2008-01-10T11:00:00-05:00",
      "number": 1,
      "order_number": 1001,
      "discount_codes": [
        {
          "code": "TENOFF",
          "amount": "10.00",
          "type": "percentage"
        }
      ],
      "note_attributes": [
        {
          "name": "custom engraving",
          "value": "Happy Birthday"
        },
        {
          "name": "colour",
          "value": "green"
        }
      ],
      "payment_gateway_names": [
        "bogus"
      ],
      "processing_method": "direct",
      "tax_lines": [
        {
          "title": "State Tax",
          "price": "11.94",
          "rate": 0.06
        }
      ],
      "line_items": [
        {
          "id": 466157049,
          "variant_id": 39072856,
          "title": "IPod Nano - 8gb",
          "quantity": 1,
          "price": "199.00",
          "sku": "IPOD2008GREEN",
          "variant_inventory_management": "shopify",
          "properties": [
            {
              "name": "Custom Engraving Front",
              "value": "Happy Birthday"
            },
            {
              "name": "Custom Engraving Back",
              "value": "Merry Christmas"
            }
          ],
          "product_exists": true,
          "fulfillable_quantity": 1,
          "grams": 200,
          "total_discount": "0.00",
          "fulfillment_status": null,
          "tax_lines": [
            {
              "title": "State Tax",
              "price": "3.98",
              "rate": 0.06
            }
          ]
        },
        {
          "id": 518995019,

Addressing the Data – JPATH

To obtain the values within the data we use a syntax called JPATH. A full discussion can be found in the JPATH example document.

Configuration

  1. Click on the Field Mapping tab.

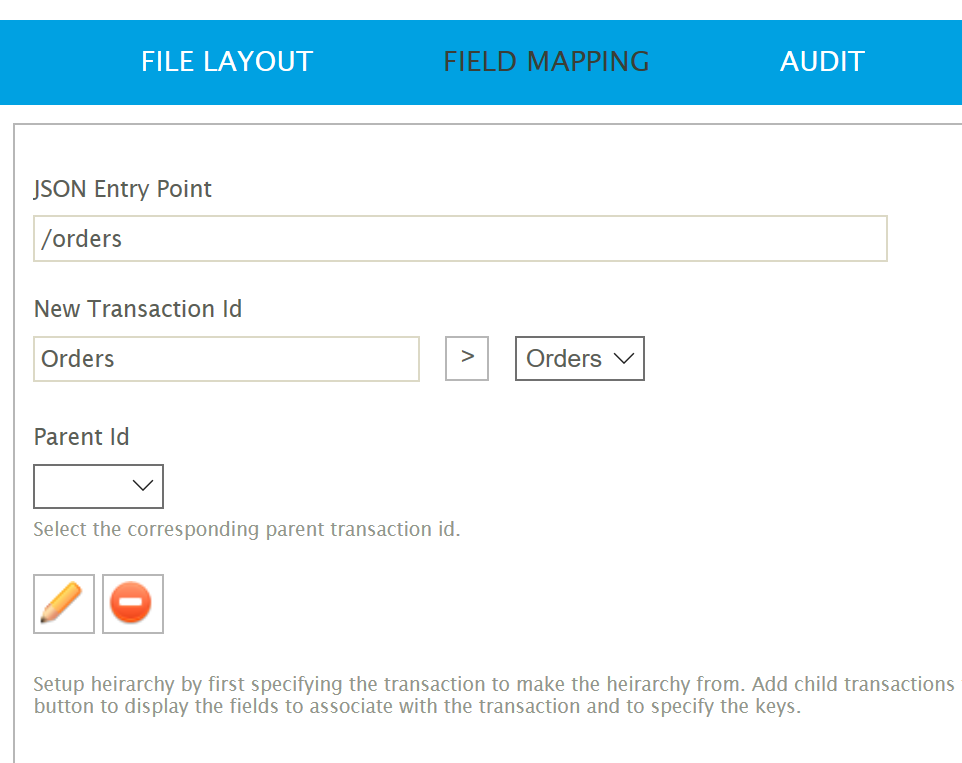

  2. Entry Point – The Entry Point is where the topmost parent transaction type begins to recur. This represents the top object (marked in red) in the returned data i.e. the orders.
    1. /orders
  3. Each transaction type/level needs to be defined, and therein each field defined.
    Enter ‘Orders’ into the New Transaction Id text box and press the Add button [>] to create a transaction type and press the Edit button.
  4. Each of the fields which need to be included in the dataset need to be added.

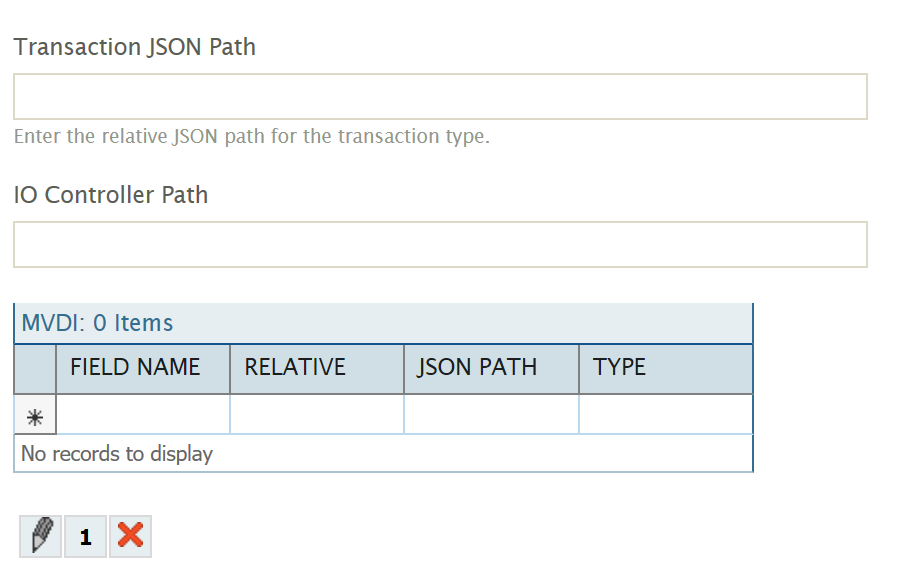

    To create a field double click the empty row in the grid (your grid will initially be empty).

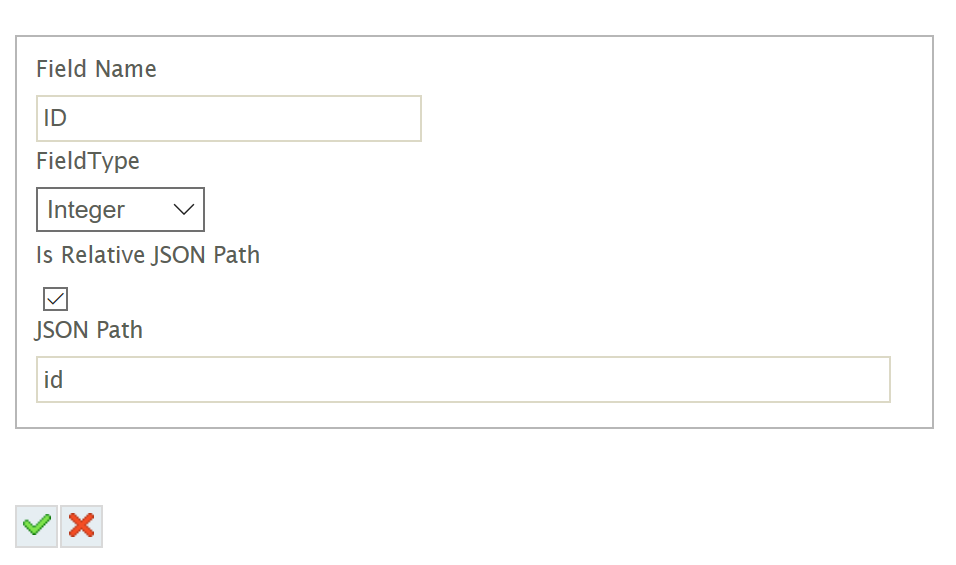

  5. To start simply, we will obtain the id (shown in green in the example response) for each of the ‘open’ orders.
    • Field Name
      • Enter 'Id'
    • Field Type
      • The field type. We recommend that you set the field type as closely as possible to the values expected.
      • Select either 'Text' or 'Integer'.
    • JSON Path
      • The path of the property, where the path is typically relative (see 'Is Relative' below).
      • Enter 'id'.
      • The ‘id’ property is directly from the ‘orders’ object so there is no need for any forward slashes.
    • Is Relative
      • De-selecting allows you to address an element which is not prepended by the transaction path, parent transaction paths or the JSON entry paths. Non-relative paths allow you to address parts of the document which are not contained within a repeating part of the document. For example, a timestamp or id at the top of the document.
      • Since the id property is nested within the order object, it is relative.

      • Leave 'Checked'

  6. Press the green tick to save.
  7. Press the Refresh button.

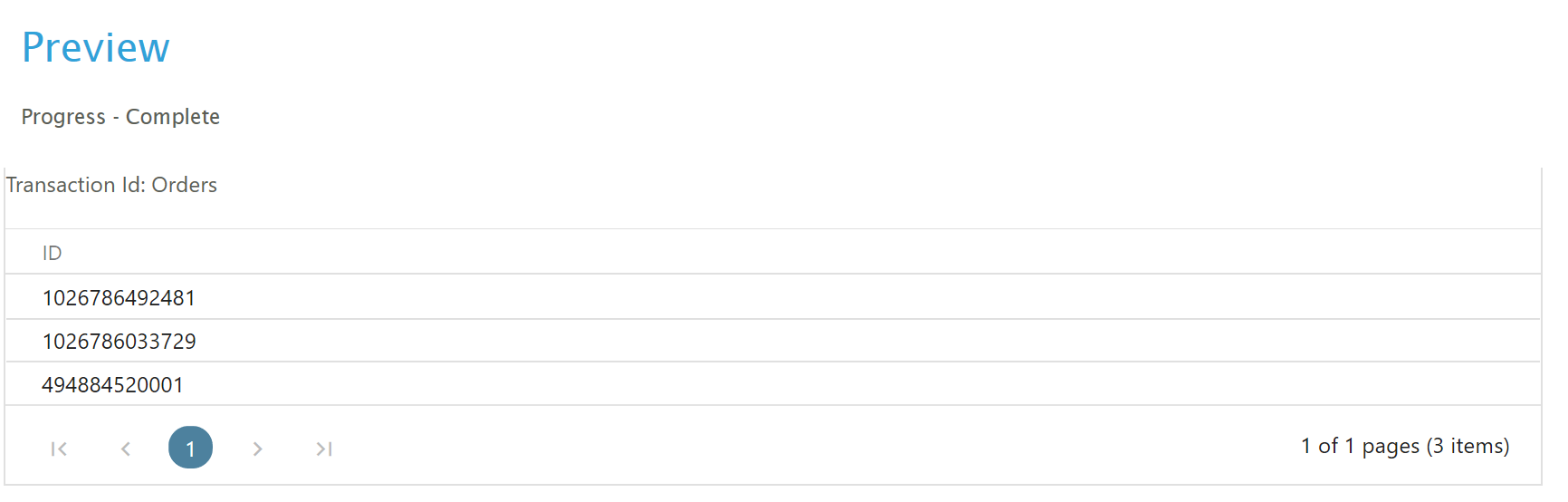

  8. The ‘id’ property for each unshipped order should be displayed.

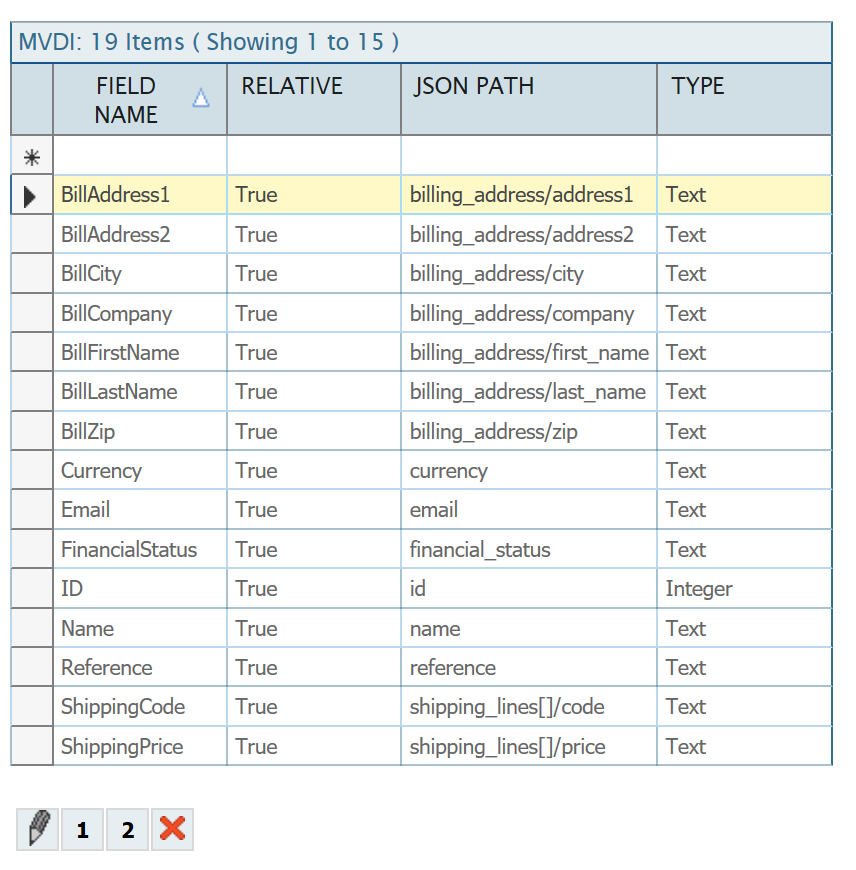

  9. Add the following fields repeating steps 4. to 6.
    Field NameJPathNotes

    Email

    email



    FinancialStatus

    financial_status



    Name

    name



    Source

    source



    Currency

    currency



    Reference

    reference



    BillAddress1

    billing_address/address1

    Access a property from the ‘billing_address’ nested object.

    BillAddress2

    billing_address/address2



    BillCity

    billing_address/city



    BillCompany

    billing_address/company



    BillZip

    billing_address/zip



    BillFirstName

    billing_address/first_name



    BillLastName

    billing_address/last_name



    ShippingCode

    shipping_lines[]/code

    Obtain the value from the first shipping object in the ‘shipping_lines’ array.

    ShippingPrice

    shipping_lines[]/price



    ShippingSource

    shipping_lines[]/source



    ShippingTitle

    shipping_lines[]/title



    StateTax

    tax_lines[title=’VAT’]/price

    Obtain the value from the ‘tax_lines’ array where there is a property ‘title’ equal to ‘VAT’.

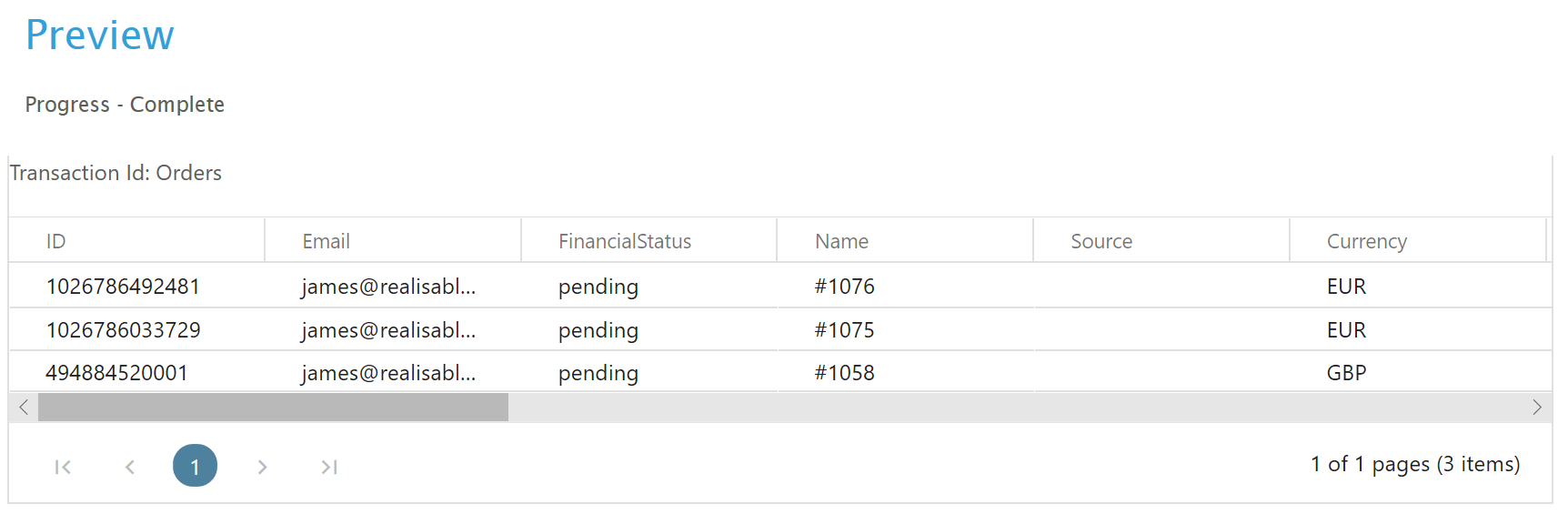

  10. Press Save and then press Refresh.

  1. In the next steps we will define the detail/line items.

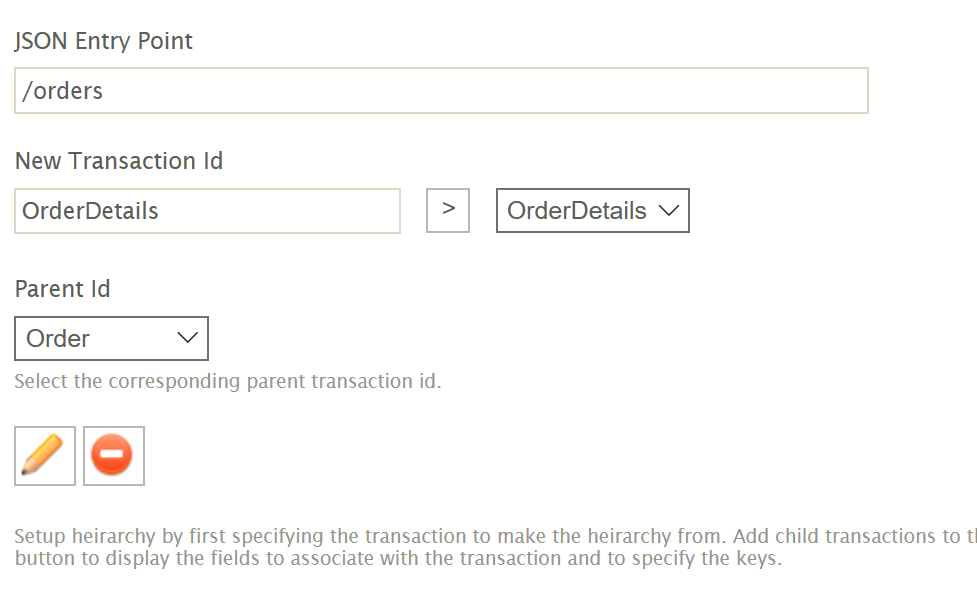

    Enter ‘OrderDetails’ into the New Transaction Id text box and press the Add button [>] to create a transaction type and press the Edit button.

    Notice the Parent Id – Associating the newly created to the level to it’s parent.

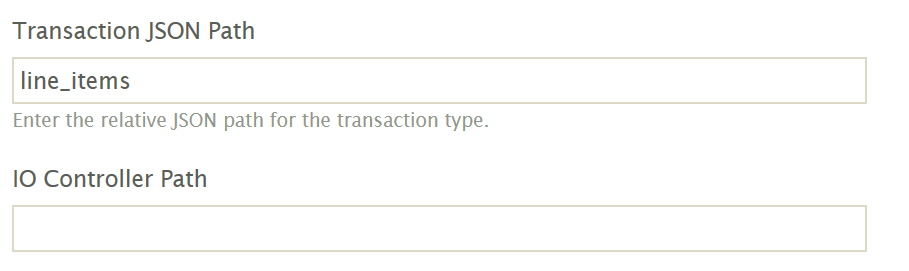

  2. The ‘Transaction JSON Path’ allows you define which property contains the repeating set of objects (this is identical to the JSON Entry Point which defines the path to the array of order objects).
    • Enter "line_items" (shown in blue in the example response).
    • The path for each transaction type is relative to it's parent. The transaction JSON Path of the 'Orders' transaction type is empty, so the path in this instance is relative to the JSON Entry point.
  3. Add the following fields.
    Field NameJPath

    Id

    id

    SKU

    sku

    Title

    title

    Price

    price

    Quantity

    quantity

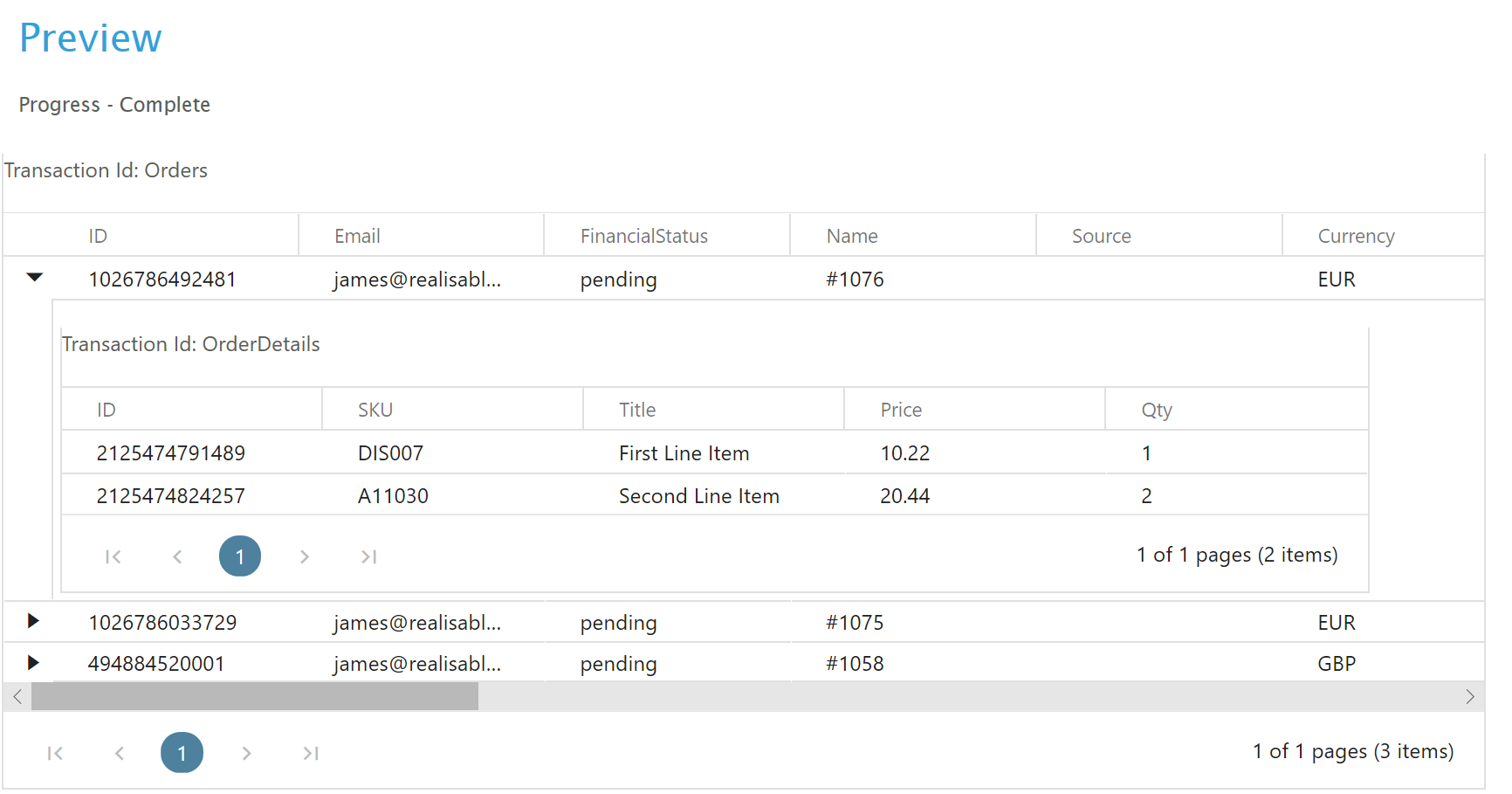

  1. Press Save and press Refresh.
